In-Line Installation - 5400 Model For pools 7,000 to 40,000 gallons
Do NOT install in copper pipe if using
POOL FROG
®
Bac Pac as chemical
corrosion occurs.
Leave approximately
12” above and
around POOL
FROG
®
Cycler to
allow room for
easy replacement
of POOL FROG
®
Mineral Reservoir
and POOL FROG
®
Bac Pac.
Do NOT install
this POOL
FROG
®
Cycler
off-line.
Bi-ow valve design allows installation
in either ow direction.

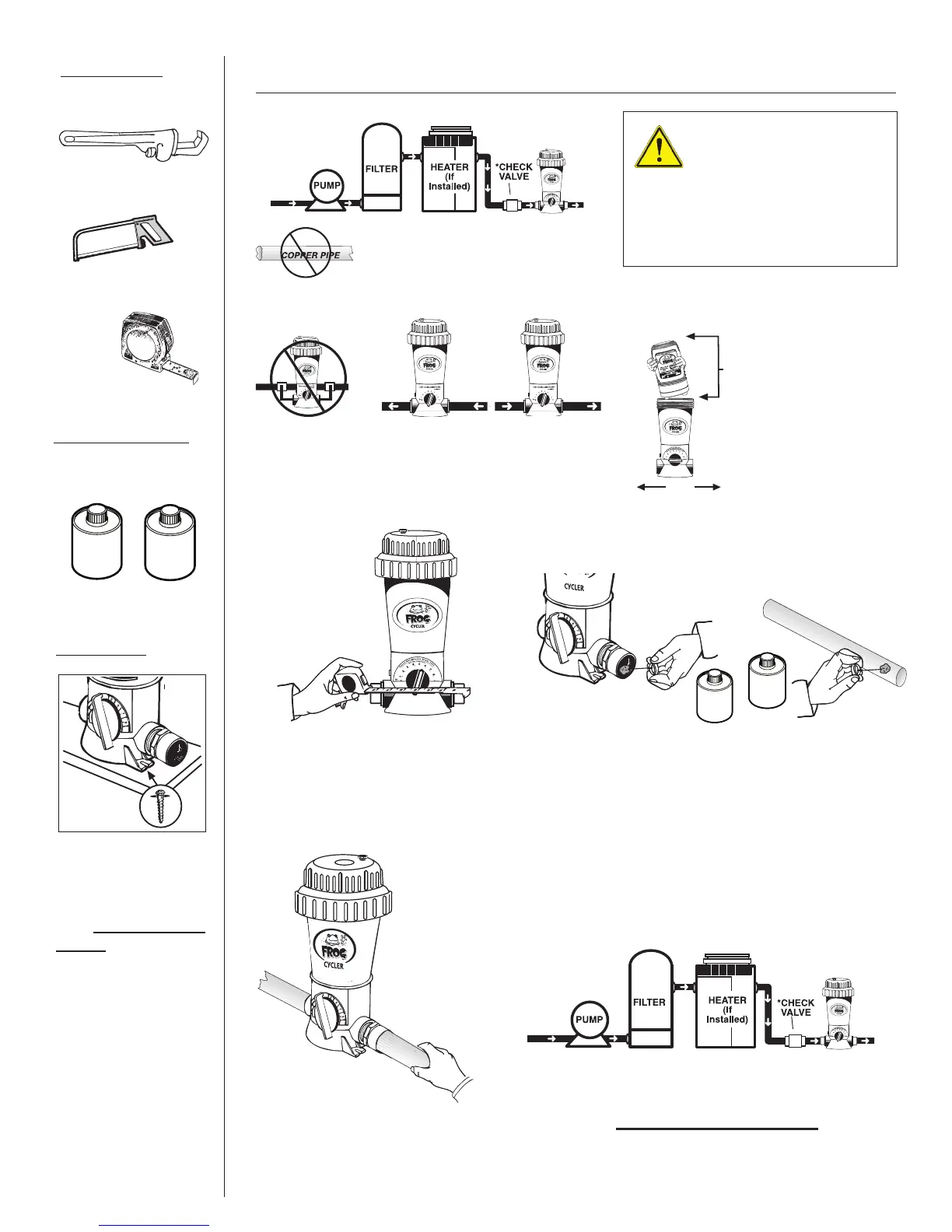

Measure the distance between
POOL FROG
®
Cycler male
adapters and cut out a section of
pipe 3” less than that dimension.
Following Primer directions, brush Primer on the inside of the
male adapters and to ends of pipe. Repeat this process with PVC
cement following directions on that product.
Insert PVC pipe into male
adapters with a twisting action.
Hold in place 5 to 10 seconds
to bond.
When using a POOL FROG
®
Bac Pac, isolating the POOL FROG
®
Cycler by installing a corrosion resistant check valve is
recommended, especially if a heater is installed.
For better stability,
POOL FROG
®
Cycler
may be mounted on
a treated wood base
using Phillips pan head
screws. One in front
and one in back.
MATERIALS NEEDED
Primer and PVC Cement
Secure Cycler
TOOLS NEEDED
Pipe Wrench
Hacksaw
Tape Measure
2.
3. 4.
12"
12"
OR
• Install after all equipment and
as far as possible from heater.
• Any additional sanitizing
equipment that is installed
with FROG
®
must be installed
after FROG
®
(never before) on
the return line to the pool.
