Fromm P324 - Exchange of Cutter, Welding Stop Gripper and Welding Gripper

16
P324mane.fm

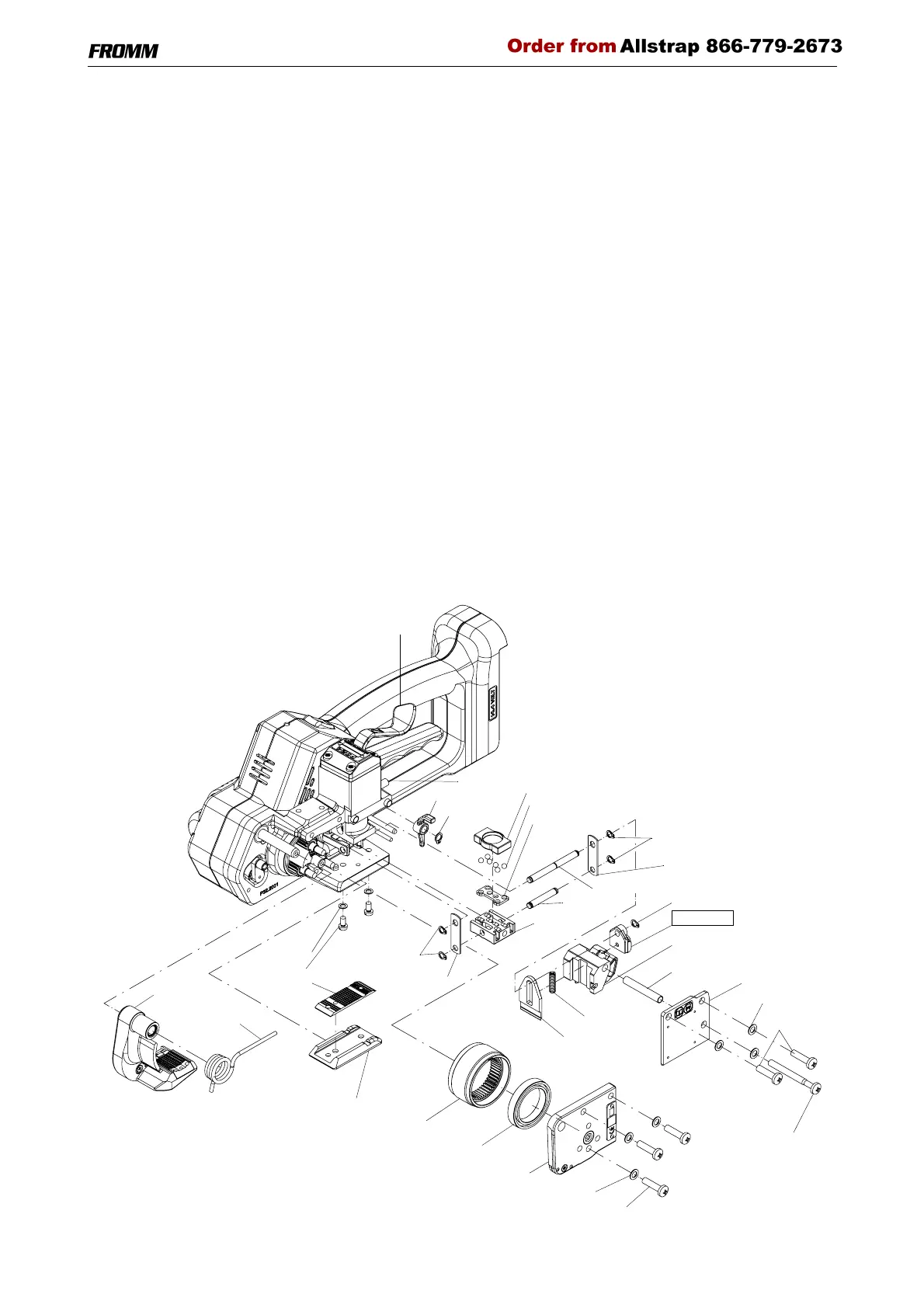

9.2 Exchange of cutter, welding stop gripper and welding gripper
Disassembling
• Unscrew cover P32.1211 and remove it;
• Unscrew end cover P32.1238 and remove it;
• Remove the torsion spring N2.5823 and the tensioning body P32.1254;
• Remove the tensioning wheel together with the bearing N3.1172 from the tool;
• Disassemble the security ring N2.1118 and remove the lever P32.1414 from the handle shaft;
• Don’t loosen screw N1.1553 at the coupler P32.1250.
• Disassemble the security ring N2.1121 from the coupler P32.1250, remove the coupler;
• Pull out the centering sleeve P32.1208 from the guide case to left, disassemble the guide case;
• Pull out the pressure spring N2.5237 with a screw driver from the cutter P32.1204;
• Remove the cutter from the driving pin P32.1032;
• Disassemble the screws N1.1305, lift slightly the welding stop gripper P32.1203 and the steel insert P32.1201
and remove them from the tool;
• Push the steel insert P32.1201 without welding stop gripper under the welding gripper P32.1053 until it touches
the parallel pin N2.2110;
• Press down lever P32.2026, if the welding gripper does not sit on the steel insert, put a piece of plastic strap
between welding gripper and steel insert.
• Disassemble the safety ring N2.1121 from the bolt P32.1028, remove the bolt from the welding gripper;
• Press in coupler P32.1410 in order to release the lever P32.2026 again;
• Pull out the steel insert with care to right under the welding gripper;
• Disassemble the security rings N2.1121 from the driving pin P32.1032, remove the driver P32.1035 from the
driving pin;
• Lift the rocker P32.1024 behind the welding gripper with a screw driver, remove the welding gripper together with
the ball cage P32.1027 and the balls N3.1702 from the tool;
• Lower the rocker, remove the thrust piece P32.1029 from the tool.
N2.1121
 P32.1035
N2.1121
P32.1035 
N1.1904
N1.1929
N1.6503
P32.1211
P32.1208
Guide case
P32.1250
N2.1121
N2.5237
P32.1028
P32.1027
6 x N3.1702 
P32.1201
P32.1203
 N1.1305
N1.6504
P32.1053
P32.1238
N1.1904
N1.6503
N2.1118
P32.1414 
P32.1032
P32.1410
P32.2026
 Molykote BR2 plus
 Loctite 222
 Klüber Isoflex Alltime SL2
 Klüber Isoflex NBU 15
P32.1029 
P32.1204 
 Tensioning wheel
N2.5823
P32.1254
N3.1172
 Mobilux EP2
