Fronius 63A-1 Quick Guide

02/2017 5/17

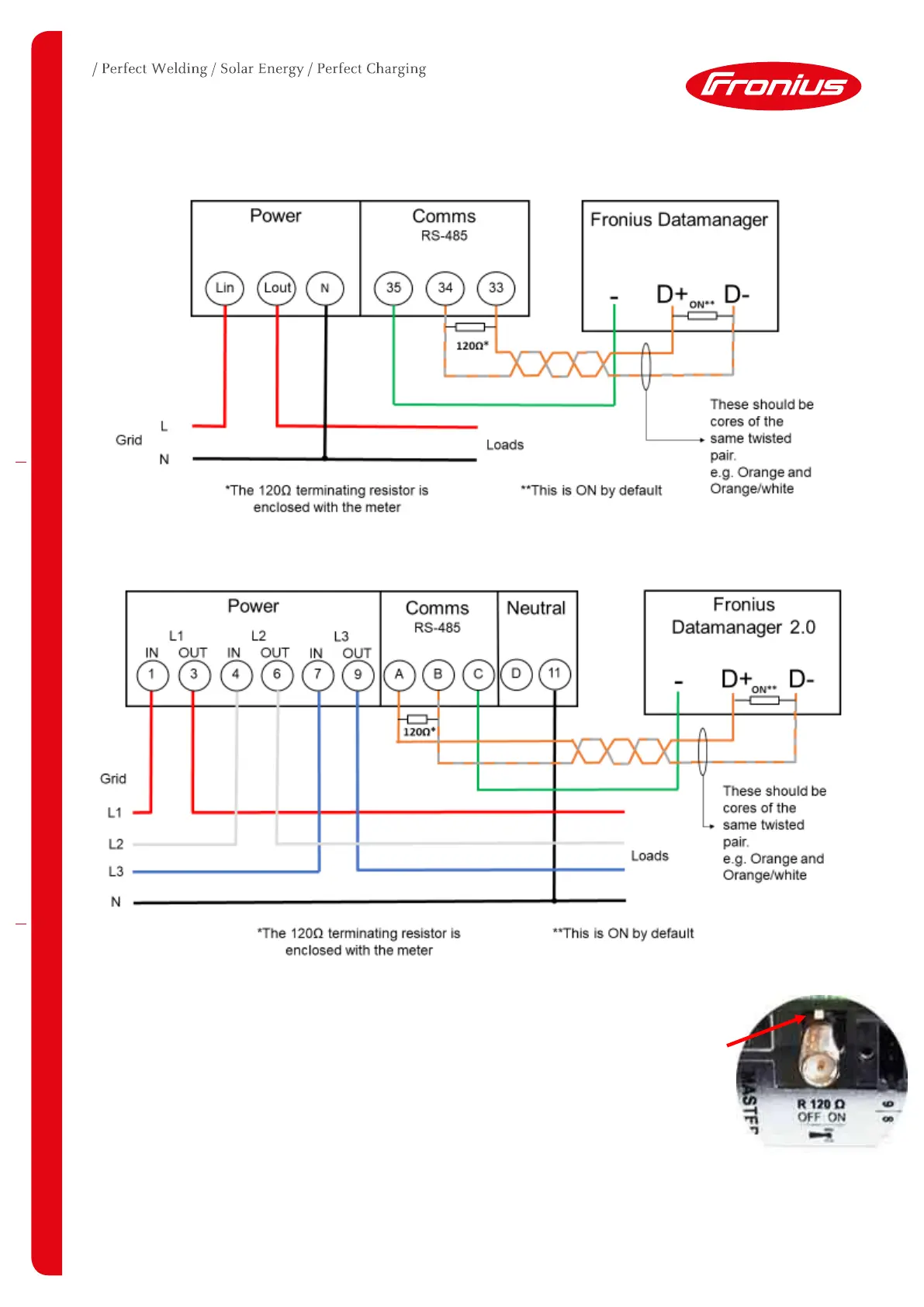

2.1.1 - Wiring detail for single-phase Fronius Smart Meter 63A/1PH & Datamanager 2.0
2.1.2 - Wiring detail for three-phase Fronius Smart Meter 63A/3PH and Datamanager 2.0
Modbus termination switch on the Datamanager
The internal bus termination 120-Ohm resistance (for Modbus RTU) needs to
be switched to ON. This switch is set to ON by default.
Please Note: The termination resistance must be activated for the first and last device in
an RS485 bus.

Fronius 63A-1 Specifications

General

Brand	Fronius
Model	63A-1
Category	Measuring Instruments
Language	English
