Open the housing
Warning! Hazard due to supply voltage and DC-voltage from the
solar modules. Only licenced electricity installers are authorized to
open the connection area. Only Fronius-trained service staff are
authorized to open the separately insulation-enclosed power stage
on condition that it is not under voltage.
Opening connection area
FRONIUS IG
(installation of
the indoor
housing)

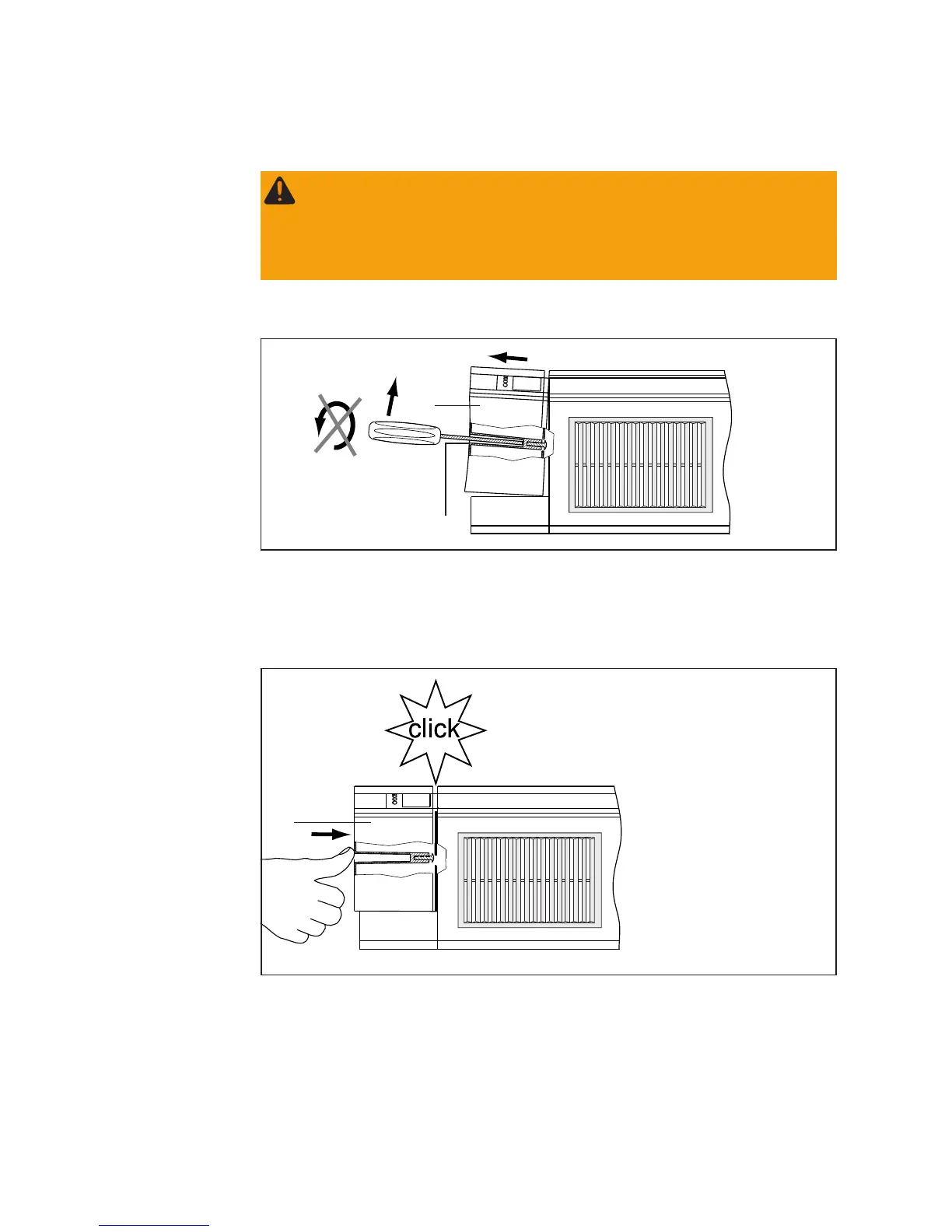

- insert screwdriver into the borehole (1) at the bottom of the FRONIUS IG
- unlock cover (2) of connection area by lifting the screwdriver carefully at
the end of its handle
- pull cover (2) of connection area downwards and away
Important! To close the connection area put on cover (2) and push it
forward until it reaches the locking position.
1.
2.
(1)
(2)
(2)
