Fronius IG 2000 - Operating Status LED and GFDI Status LED

51
EN-US
Product description

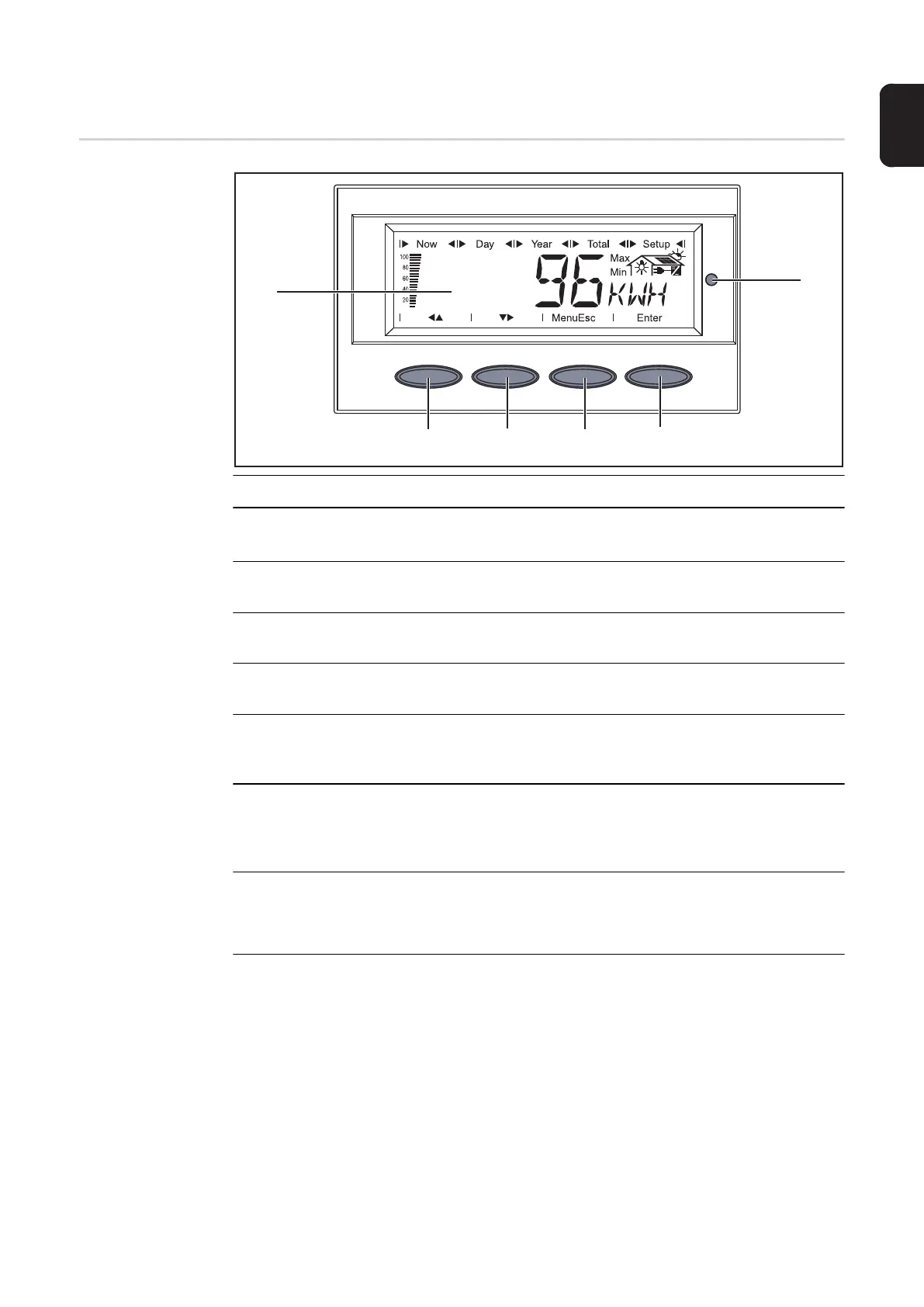

Controls and Indi-
cators
Item Function
(1) Display
for displaying values, settings and menus
(2) Operating Status LED
for displaying the operating status
(3) LED GFDI-Status
for displaying the GFDI status
(4) "Enter" key
for confirming a selection
(5) "Menu / Esc" key
for scrolling through menu options
for exiting the Setup menu
(6) "Down/Right" key
depending on the selection:
for navigating down
for navigating right
(7) "Left/Up" key
depending on the selection:
for navigating left
for navigating up
(1)
(6)
(5)
(4) (3)
(2)
