Fronius MagicWave 3000

- adjustment of the ignition current to the respective tungsten electrode dia-
meter
Important! In the electrode operating mode, the adjuster is deactivated.
(18) Process key ... to select the process, depending on the selected operating
mode.
(21)(20)(19)
(19) For the TIG AC welding process, select the operating mode 2-step mode / 4-step
mode.
For the MMA AC welding process, select the MMA welding operating mode.
(20) For the TIG DC welding process, select the operating mode 2-step mode / 4-step
mode.
For the MMA DC- welding process, select the MMA welding operating mode.
(21) For the TIG DC+ welding process, select the MMA welding operating mode.
(22) Overtemperature indicator ... lights up if the power source heats up too much
(e.g. due to exceeded duty cycle). Further information can be found in the
chapter "Troubleshooting".
(23) S-sign indicator ... lights up when the monitoring function is active.
Control panel for
TransTig
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(17)
(16)
(15)(14)
(13)
(12)
(11)
(10)
(9)
(8)

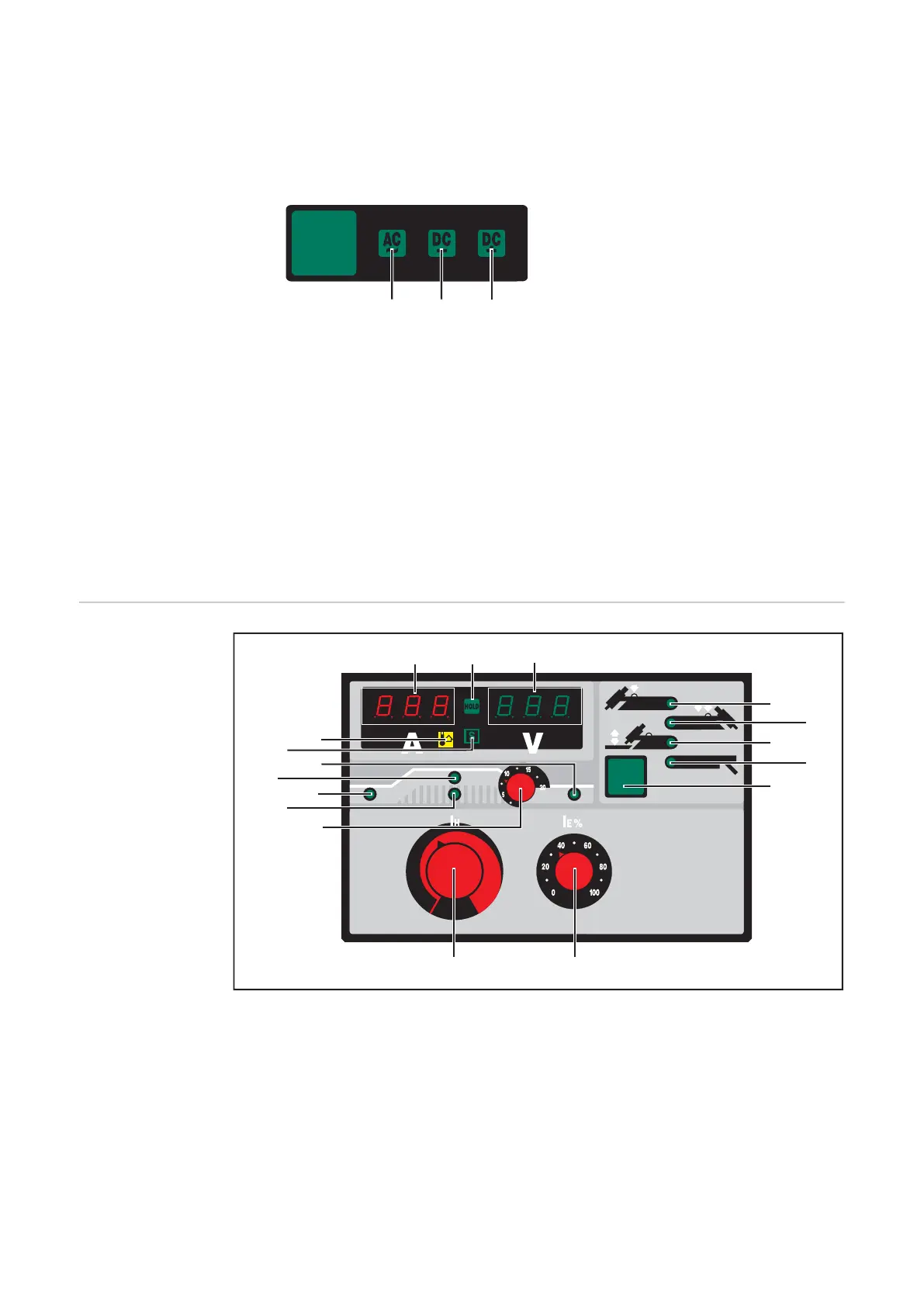

Fig.6 Control panel for TransTig 2600 / 2600 CEL / 3000
(1) Welding current indicator ... for displaying the main current I
H
- Set value ... desired welding current
- Actual value ... actual welding current
(2) Welding voltage indicator
- for displaying the current actual value of the welding voltage
(3) Mode button
