Fronius Symo 20.0-3-M Installation Instructions

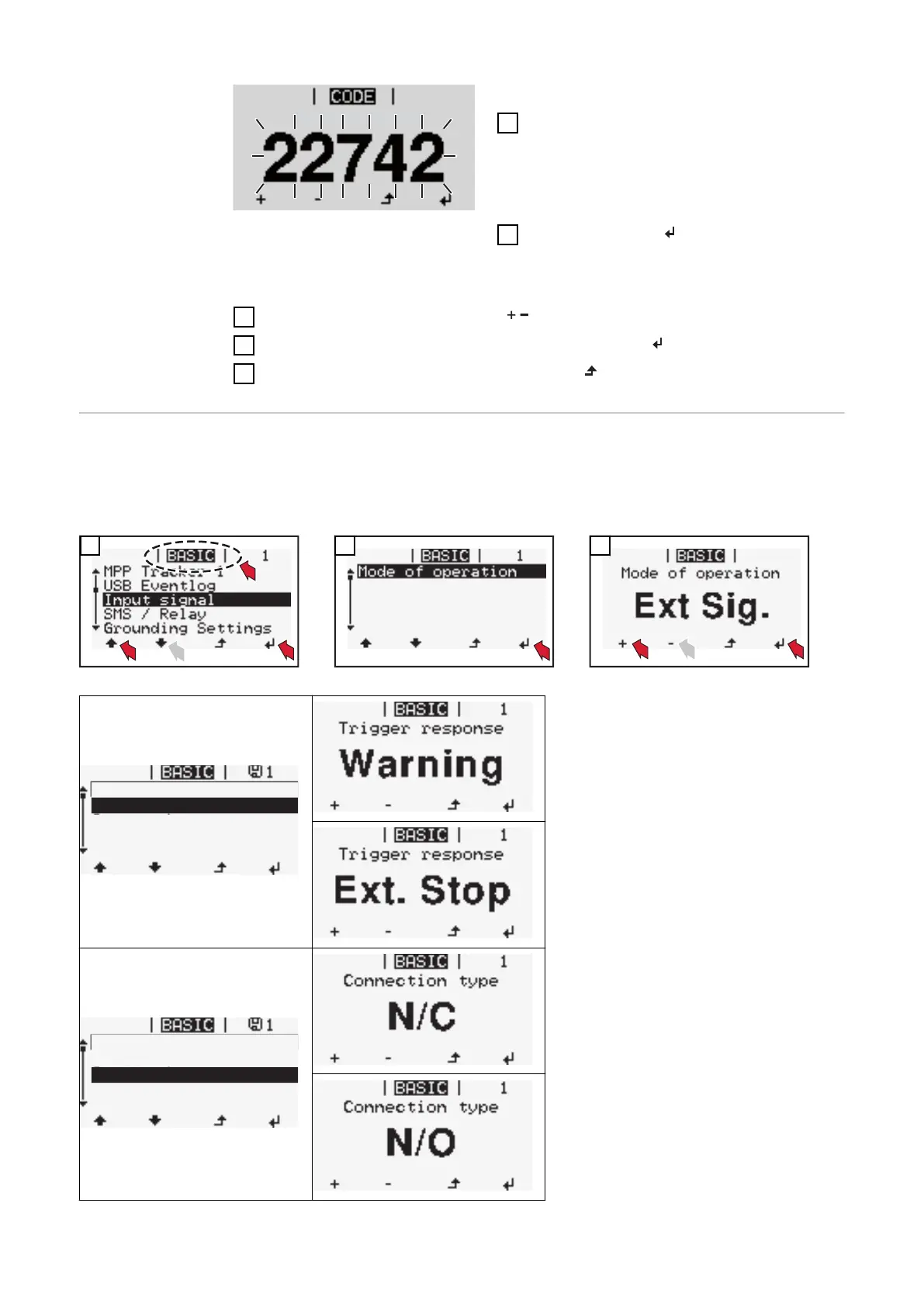

Access Code
The second digit flashes.
5
Repeat steps 3 and 4 for the second,
third, fourth and fifth digits of the access
code until...
the selected code starts flashing.
6
Press the "Enter" button
The Basic menu appears.
7
Use the "Plus" and "Minus" keys to select the desired entry
8
Edit the desired menu item by pressing the "Enter" button
9
Press the "Esc" key to exit the Basic menu
Settings in the
Basic menu
1
3
2
2
1
1
2
1 1
2
3
Mode of operation
Trigger response
Connection type
Warning is shown on the display
(STATE 568).
Inverter is switched off (STATE
668).
Mode of operation
Trigger response
Connection type
N/C (normally closed contact) *
N/O (normally open contact) *
58

Fronius Symo 20.0-3-M Specifications

General

AC nominal output	20.0 kW
Max. output current	29.0 A
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Number of MPPT	2
Dimensions (W x H x D)	725 x 510 x 225 mm
Max. apparent AC power	20000 VA
AC nominal voltage	400 V
AC nominal frequency	50 / 60 Hz
THD	< 3%
Max. input current	33.0 A
Protection class	IP 66
Operating temperature range	-25°C to +60°C
Warranty	5 years
Max. DC power	30.0 kW
Power factor	1
