Fronius Datamanager 2.0

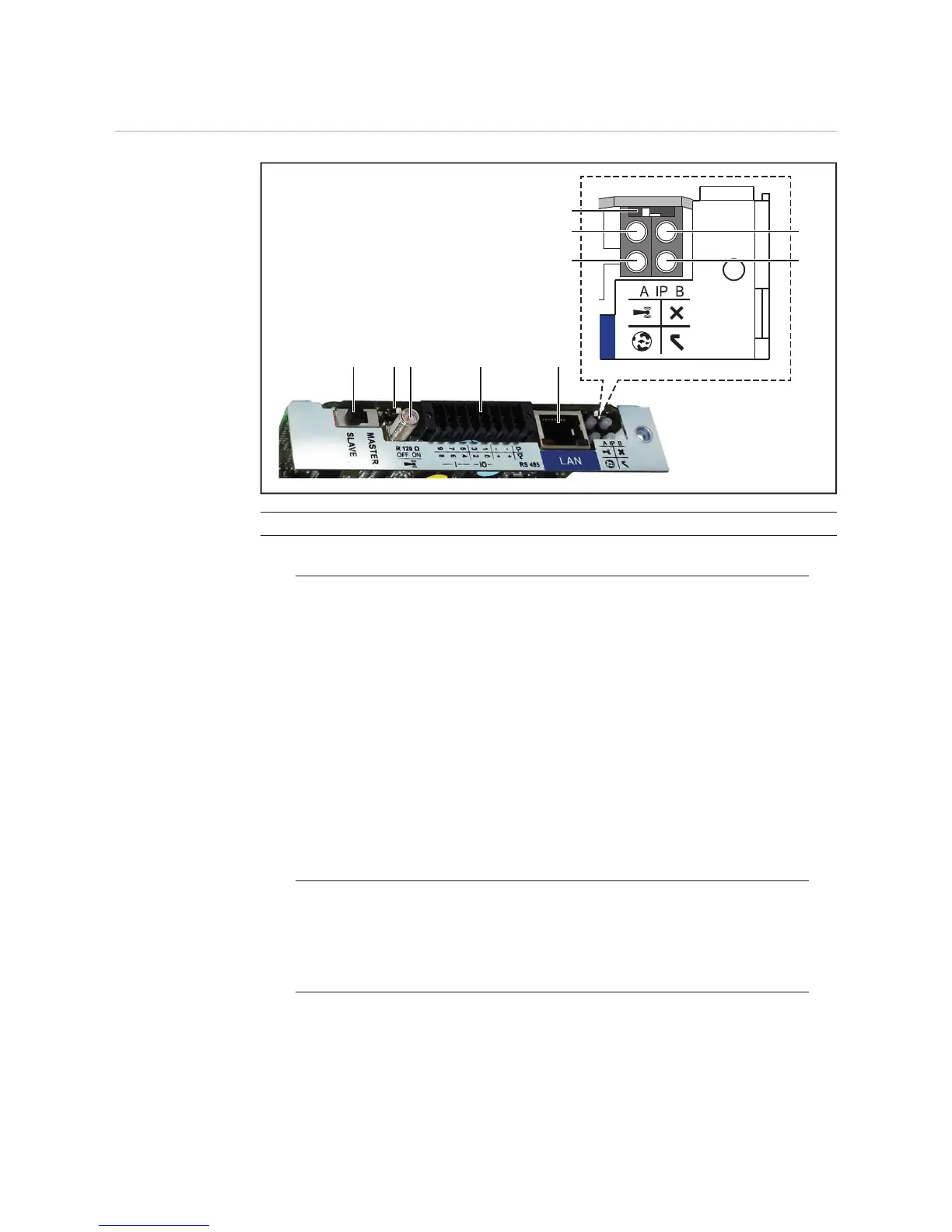

Controls, connec-
tions and dis-
plays on the
Fronius Dataman-
ager
No. Function
(1) IP switch
For switching the IP address:
Switch position A
Default IP address with opening of the WLAN access point
Fronius Datamanager 2.0 uses the set IP address 169.254.0.180 to establish a
direct connection to a PC via LAN.
Setting the IP switch to position A also opens an access point to enable a direct
WLAN connection to the Fronius Datamanager 2.0.
Access data for this access point:
Network name: FRONIUS_240.XXXXXX
Key: 12345678
Access to the Fronius Datamanager 2.0 is possible:
- Using the DNS name "http://datamanager"
- Using the IP address 169.254.0.180 for the LAN interface
- Using the IP address 192.168.250.181 for the WLAN access point
Switch position B
Assigned IP address
The Fronius Datamanager 2.0 uses an assigned IP address (factory setting dy-
namic (DHCP))
The IP address can be set on the Fronius Datamanager 2.0 website.
(5)
(1)
(6)(7)
(10) (8)(9)
(4)
(2)
(3)

Fronius Symo 20.0-3-M Specifications

General

AC nominal output	20.0 kW
Max. output current	29.0 A
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Number of MPPT	2
Dimensions (W x H x D)	725 x 510 x 225 mm
Max. apparent AC power	20000 VA
AC nominal voltage	400 V
AC nominal frequency	50 / 60 Hz
THD	< 3%
Max. input current	33.0 A
Protection class	IP 66
Operating temperature range	-25°C to +60°C
Warranty	5 years
Max. DC power	30.0 kW
Power factor	1
