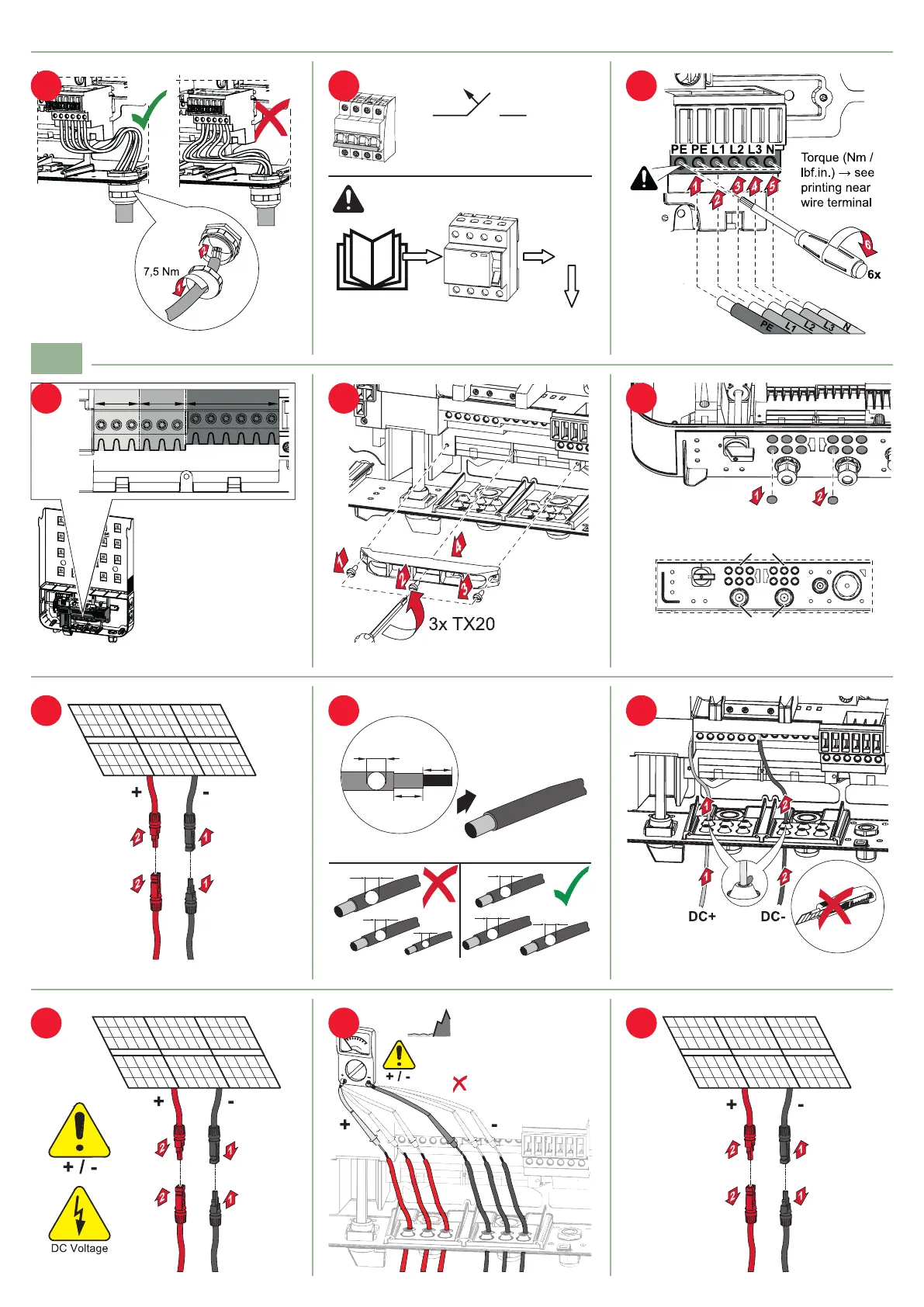

Fronius Symo Advanced 10.0-3-M Quick Start Guide

0 - 2000 m: U
DCmax
1000 V
2001 - 2500 m: U
DCmax 950 V
2501 - 3000 m: U
DCmax 900 V
3001 - 3400 m: U
DCmax 850 V
> 3400 m
2,5 - 10 mm²
10 - 25 mm² *
*16 - 35 mm² if using DC Con Kit 35
D1
D2
D3
D1
D1
D1
15 mm
70 mm
D > 6 mm
DC-
*
DC =
DC1+ DC2+
*
min. 2,5 mm² - 16 mm²
max. C 80 A
AC ~
RCD
National Standards
?
Type A
YES
I
N
≥100 mA
§

DC=










Fronius Symo Advanced 10.0-3-M Specifications

General

AC nominal output	10.0 kW
Max. efficiency	98.1%
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP66
Max. output current	14.5 A
THD	< 3%
Max. input voltage	1000 V
Operating temperature range	-25°C - +60°C
Max. apparent AC power	10 kVA
AC nominal voltage	400 V
Power factor (cos φac,r)	1
DC max. power	15, 000 W
Warranty	5 years
Cooling	Fan
