Fixing the strain-
relief device in
place

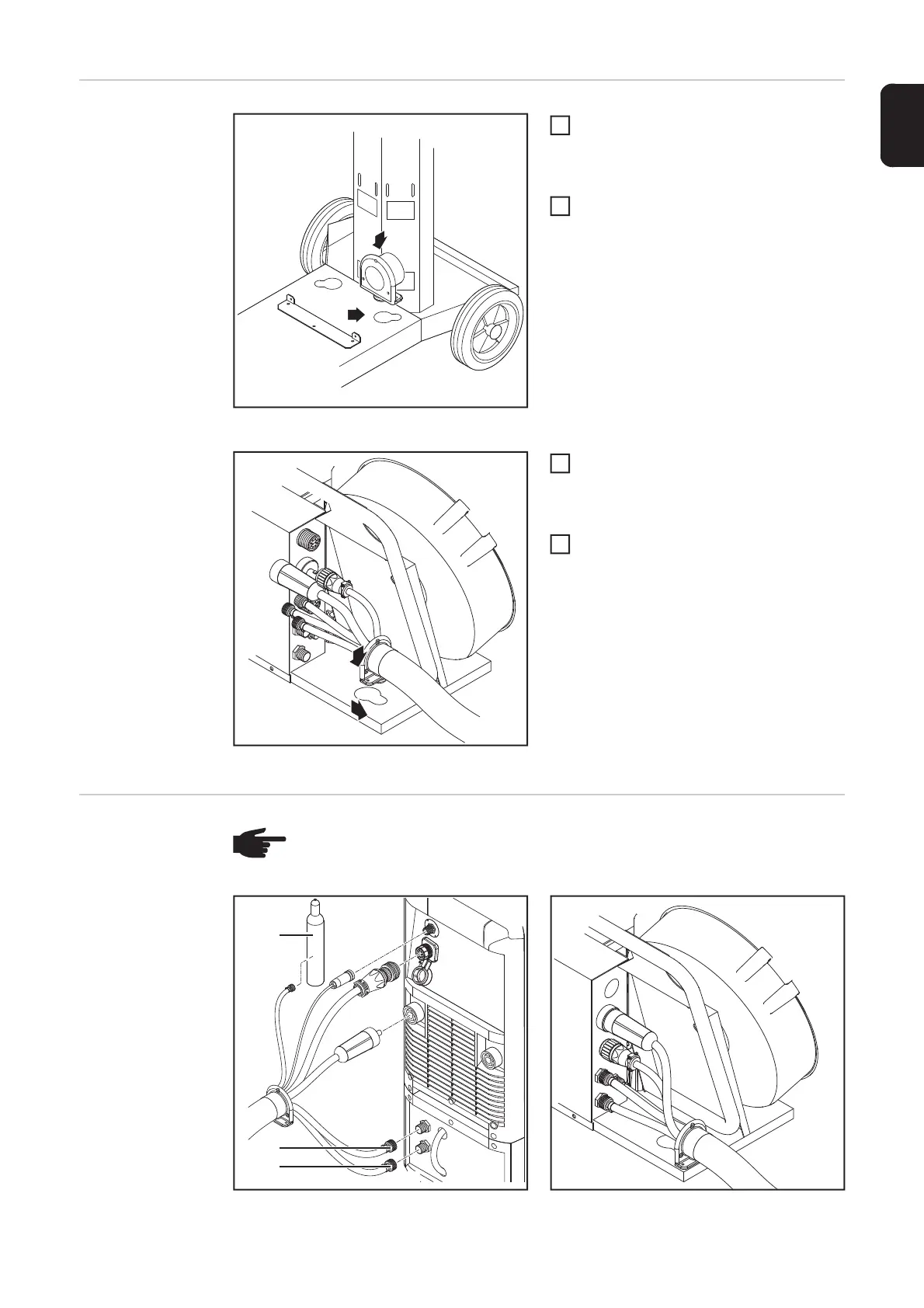

Fixing the strain-relief device to the trolley
Introduce the pin on the power source
strain-relief device for the interconnec-
ting-hosepack into the opening provi-
ded in the base of the trolley.
Use two screws supplied with the inter-
connecting hosepack to fasten the
strain-relief device to the base of the
trolley.
A strain-relief device is not provided in
the case of 1.2 m (4 ft.) interconnecting
hosepacks.
Fitting the strain-relief device to the wire-feed unit
Introduce the pin on the wire-feed unit
strain-relief device for the interconnec-
ting hosepack into the opening provi-
ded in the wire-feed unit.
Use two screws supplied with the inter-
connecting hosepack to fasten the
strain-relief device to the wire-feed
unit.
Connecting the
interconnecting
hosepack
1
2
1
4
NOTE! There is no cooling unit present in the case of gas-cooled systems. There
is no need to attach the water connections in the case of gas-cooled systems.
