FS0507T PN 60711000162

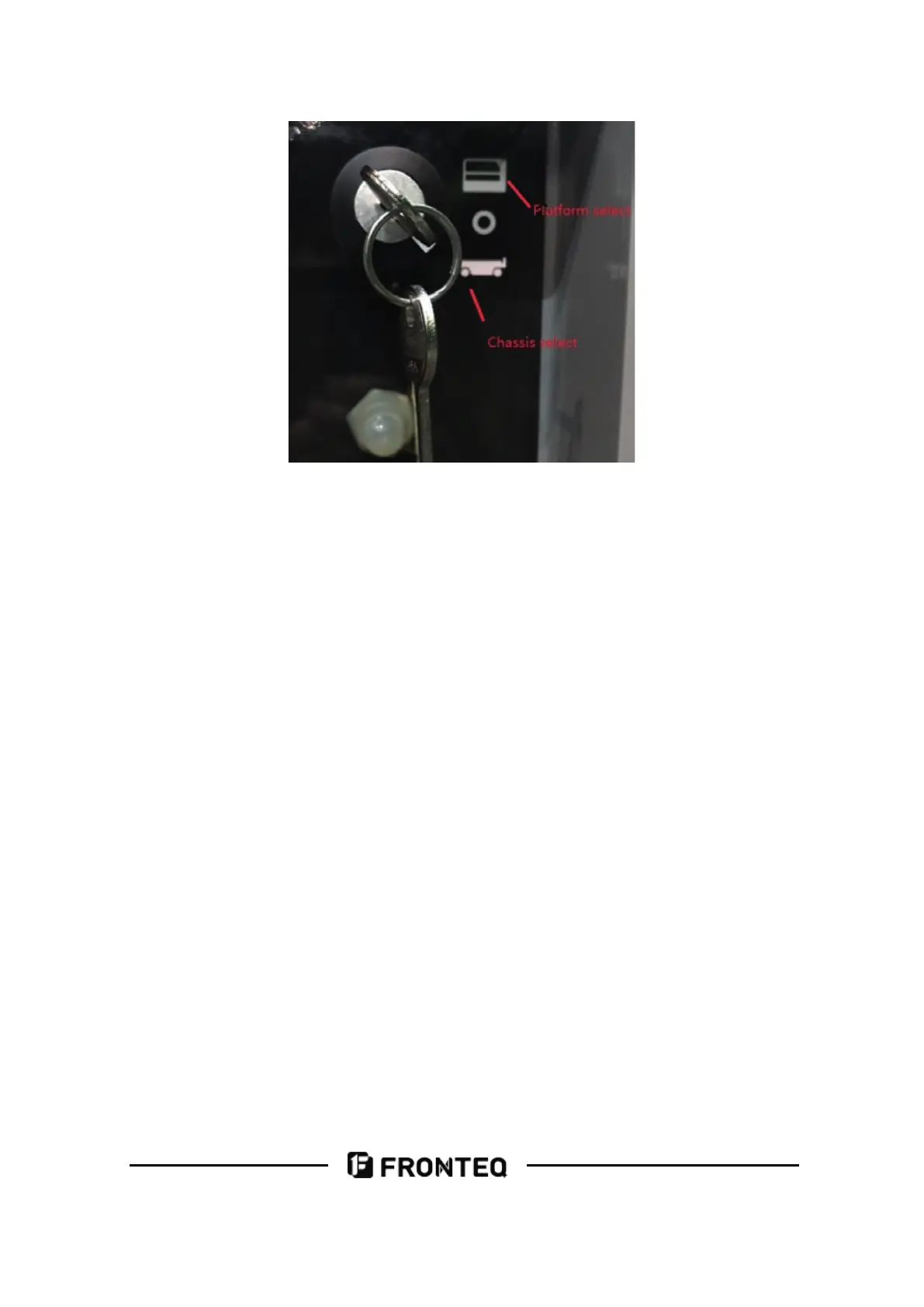

Photo 5
4.1.1 Basic operation
The platform control unit (PCU) is shown in Photo 1, 2, 3 and 4.
Key switch and chassis operation are shown in Photo 5.
4.1.2Main power and safety
a) The key switch provides power to emergency stop and chassis selection or platform
operation. When the power is turned off in the middle position, moving the key to
any of the three positions will keep the device in the selected operating mode.
b) The emergency stop button is located on the chassis and platform controls. They are
connected in series, so they must be pulled out for normal operation. Pressing the
chassis or any emergency stop on the platform will shut down the power. Safety is
built on a complete loop, and pressing any emergency stop will open the loop.
c) The enable switch on the handle must be pressed to operate the walking, steering,
lifting or lowering functions.
4.1.3 Lifting and lifting safety
a) The platform will not rise to a specific height unless it reaches the upper limit switch.
b) The measured load must not exceed the rated load of the machine.
c) The raised or lowered platform can be operated from two positions: on the chassis
or on the platform. It depends on control position of the key switch.
i. At the chassis position, it could only control the platform to rise and down.
ii. The platform position allows the operator on the platform to select the lift mode.
The direction and speed are controlled by the moving handle, moving up the
platform and lowering the platform backwards.
d) Electronic control on the chassis (the ECU will sound an alarm and disable operation
if the platform is overloaded and selected to be set in the weight limit machine
mode.
e) There is a mode to stop the platform during the descent, which is to reduce the
