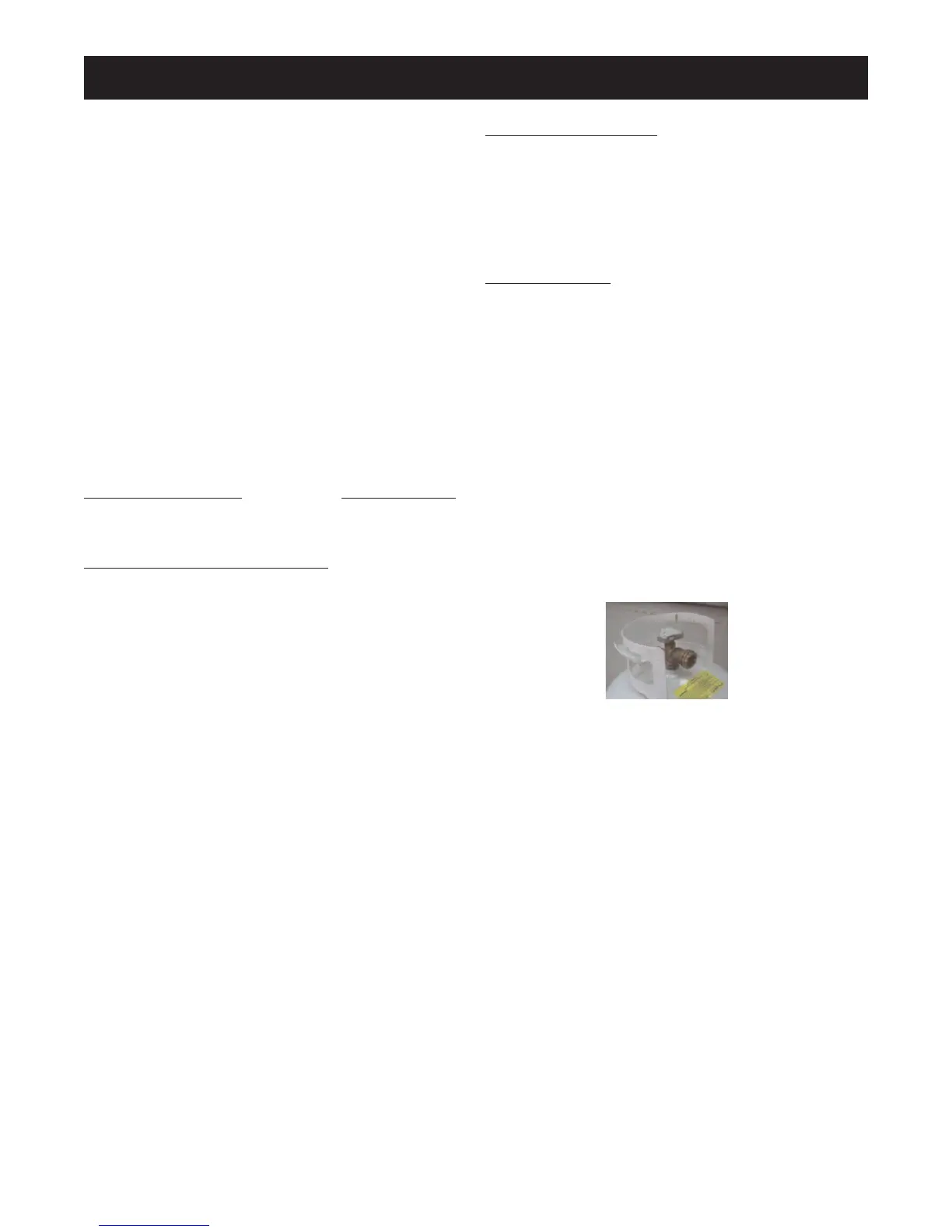

GAS HOOK UP
NEVER CONNECT AN UNREGULATED
GAS SUPPLY LINE TO THE APPLIANCE.
USE THE REGULATOR/HOSE
ASSEMBLY SUPPLIED.
If this is a liquid propane configured grill. DO NOT
attempt to use a natural gas supply unless the
grill has been re-configured for natural gas use.
Total gas consumption (per hour) of this stainless
steel gas grill with all burners on "HI":
Main Burners
52,000 BTU/hr.
Side Burners 24,000 BTU/hr.
Bottom Infrared Burner
18,000 BTU/hr.
Rear Infrared Burner
13,000 BTU/hr.
TOTAL 107,000 BTU/hr.
L.P
. TANK REQUIREMENTS
A dented or rusty L.P. tank may be hazardous
and should be checked by your L.P. supplier.
Never use a cylinder with a damaged valve.
The L.P
. gas cylinder must be constructed and
marked in accordance with the specifications for
L.P. gas cylinders of the U.S. Department of
Transportation (DOT) or the National Standard of
Canada, CAN/CSA-B339, Cylinders, Spheres and
Tubes for Transportation of Dangerous Goods;
and Commission, as applicable. Overfilling
Prevention Device (OPD) shall be provided on
cylinder & QCCI connection on the cylinder valve,
ANSI/CGA-V-1. The cylinder supply system must
be arranged for vapor withdrawal. The cylinder
must include a collar to protect the cylinder valve.
The cylinder must be provided with a shut off
valve terminating in an L.P. gas supply cylinder
valve outlet specified, as applicable, for connec-
tion type QCC1 in the standard for compressed
gas cylinder valve outlet and inlet connection
ANSI/cGA-V-1.
Manifold operating pressure: 10" water
column (W.C.).
L.P. GAS HOOK-UP
Ensure that the rubber "O" Ring on the LP
cylinder valve are in place and that the hose
does not come into contact with the grease
tray or the grill head.
CONNECTION
Your grill is equipped with gas supply orifices for
use only with liquid propane gas. It is also
equipped with a high capacity hose/regulator
assembly for connection to a standard 20lb. L.P
.
cylinder (18" high, 12-1/4" diameter). To connect
the L.P
. gas supply cylinder, please follow the
steps below:
1.
Make sure tank valve is in its full OFF
position (turn clockwise to stop).
2. Check tank valve to assure it has
proper external male threads (type 1
connection per ANSI XZ21.81)
3. Make sure all burner valves are in
their OFF
position.
4.
Inspect valve connections, port and
regulator assembly. Look for any
damage or debris. Remove any debris.
Inspect hose for damage. Never
attempt to use damaged or obstructed
equipment. See your local L.P. gas
dealer for repair.
11
