Frontier DC1000 - Hardware Check Sheet

12 Hardware Check Sheet
HARDWARE CHECK SHEET

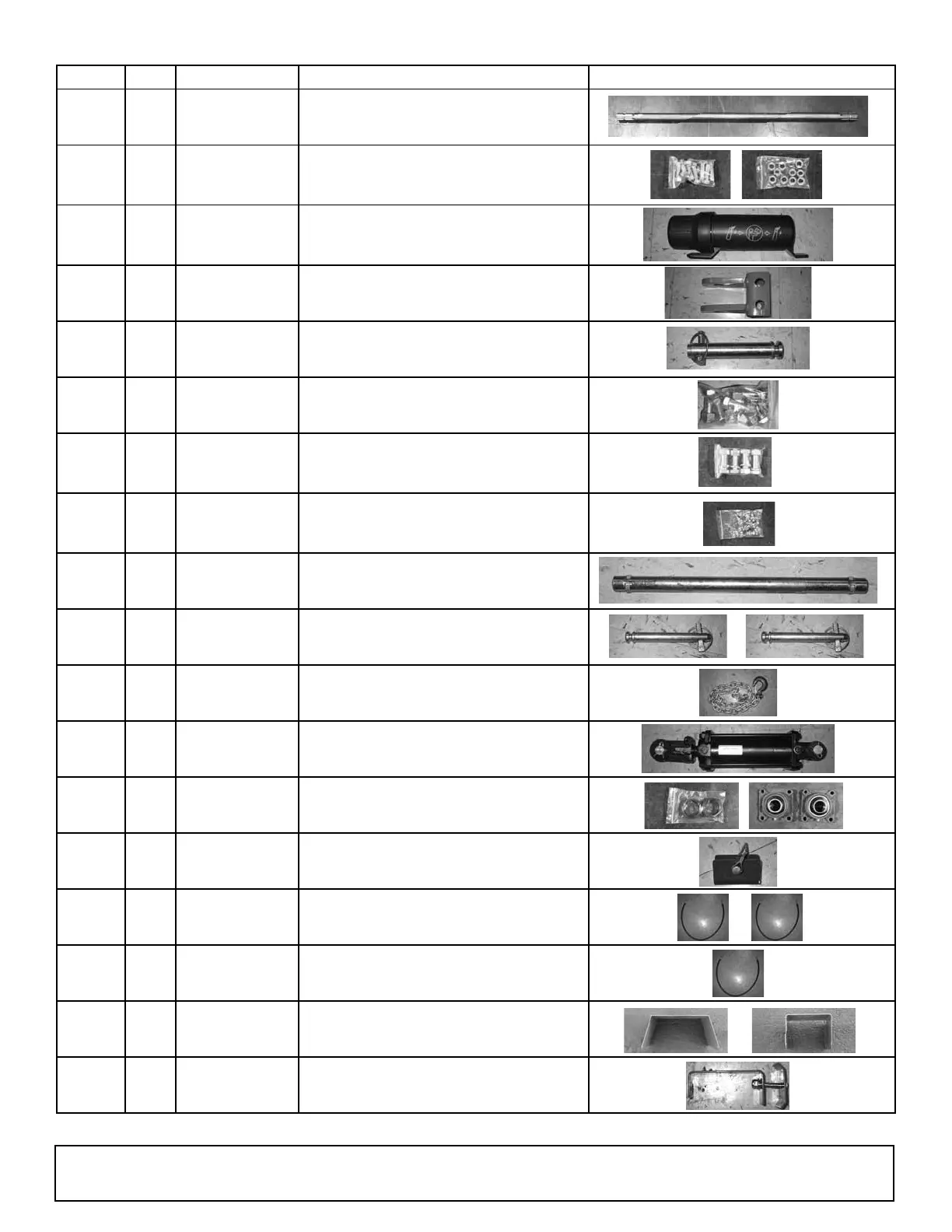

Ref # Qty. Part # Description Picture
1 1 5TIDC611154 44” Double Splined Shaft
2 10 5TIDC611112 PTO HOUSING BOLTS
5/8” x 2” Grade 5 hex bolt with nylon
lock nut
3 1 5TIDC611101 Manual Holder with Hardware (1/46”
x 1” Grade 5 hex bolt with hardware),
Manual and red reector inside
4 1 5TIDC611132 Clevis Tongue
5 1 5TIDC611108 Cat 2 Pin with Lynch Pin
6 8 5TIDC611122 FLANGE BOLTS
5/8” x 2” Grade 5 with nylon lock nut
7 4 5TIDC611113 CROSSBAR BOLTS
3/4” x 2 1/2” Grade 2 with lock washer
and nut
8 8 5TIDC611115 PTO SHIELD BOLTS
1/4” x 1” Grade 5 with at washer, lock
washer and hex nut
9 1 5TIDC611146 Top Link Adjustment Handle (Included
for replacement with Top Link Only)
10 2 5TIDC611109 Cat 1 Pins with Lynch Pins
11 1 5TIDC611136 Safety Chain with 1/2” x 2” Grade 2 with
two washers and nylon lock nut
12 1 5TIDC611103 Hydraulic Cylinder
13 2 5TIDC611102 Eccentric Locking Collars w/ Bearings
14 1 5TIDC611118 Hydraulic Cylinder Safety Stop with
Locking Pin
15 2 5TIDC611120 Hydraulic Hoses with 90° Connecting
Tips
16 1 5TIDC611137 Hydraulic Hose with Straight Connector
17 2 5TIDC611148 &
5TIDC611149
Front & Rear PTO Shields
18 1 5TIDC611114 Hose Clamp with 3/8” x 2” Grade 2 Hex
Bolt and anged nylon lock nut
