Installing3‐PointMachineonTractor

1.Parktractorsafely.(SeeSAFETYRULESsection.)

2.Placethemachinebehindthetractor.

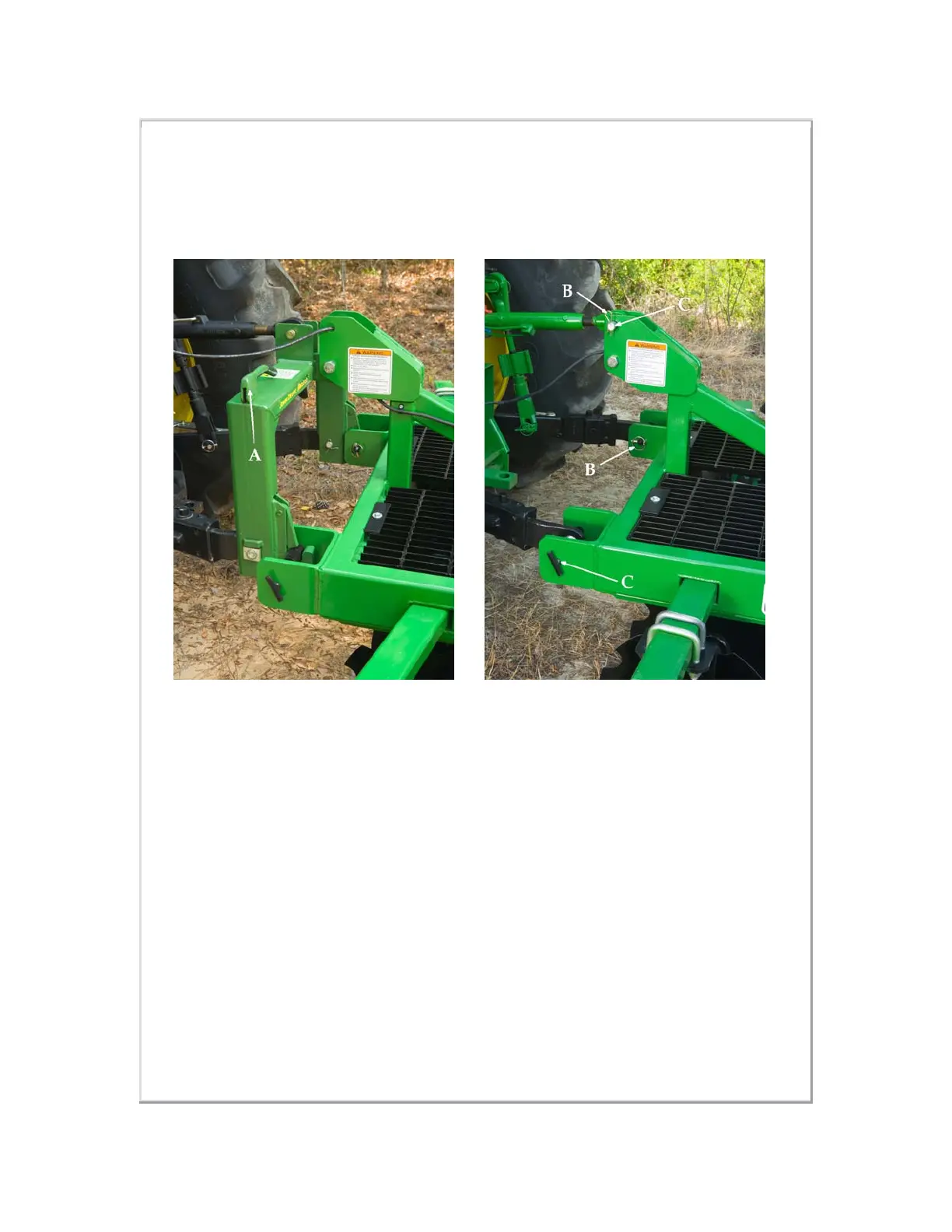

iMatchHitch3‐PointHitch

3.EngagethreepointpinsontotractoriMatchhitchorQuick‐Coupler.Makesureproper

bushingsareinplace.Closelockinglatches(A).

4.IftractordoesnothaveaniMatchorQuick‐Coupler,Installlowerhitchpins(C)through

holesinlinkarmsandsecurewi

thspringlockingpins(B).Theninstalltophitchpin(C)in

tractorturnbuckleandsecurewithlockingclip(B).Makesureproperbushingsareinplace.
