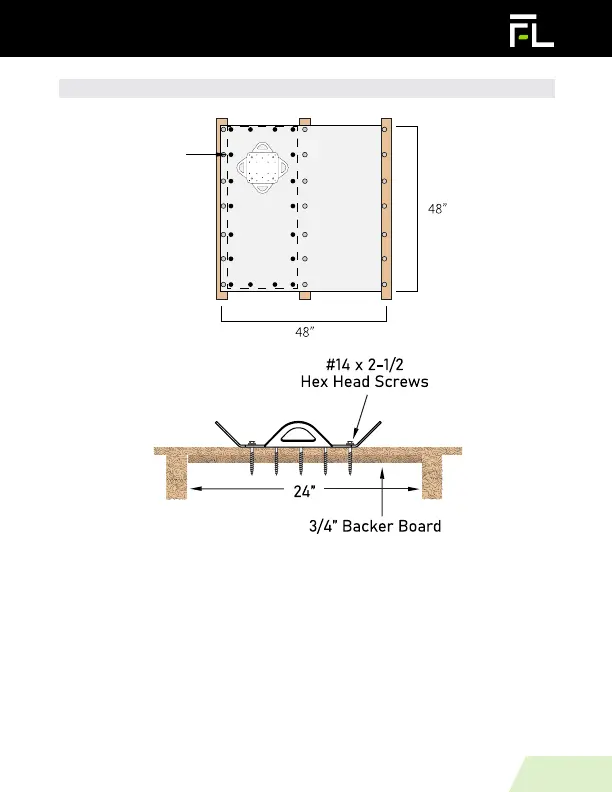

FIGURE 7 - OPTION 1
4. Option 2: for roof trusses over 16” on center
a. Ensure to have a minimum two ¾” thick backer boards (Figure 8).
b. Backer boards to have no more than 8” on center screws screwed to
original roof truss decking structure (Figure 8).
c. Anchor must be installed over the truss, to the two backer boards and
over an area of 3 structural joists 16” on center as shown on (Figure 8).
d. Insert the 20 screws through the anchor openings for wood use and
ensure screws fully penetrate the truss, sheathing and backer board and be
of tight fit without overnighting.
e. Verify that the anchor is secured and properly installed.
Min 8” OC
