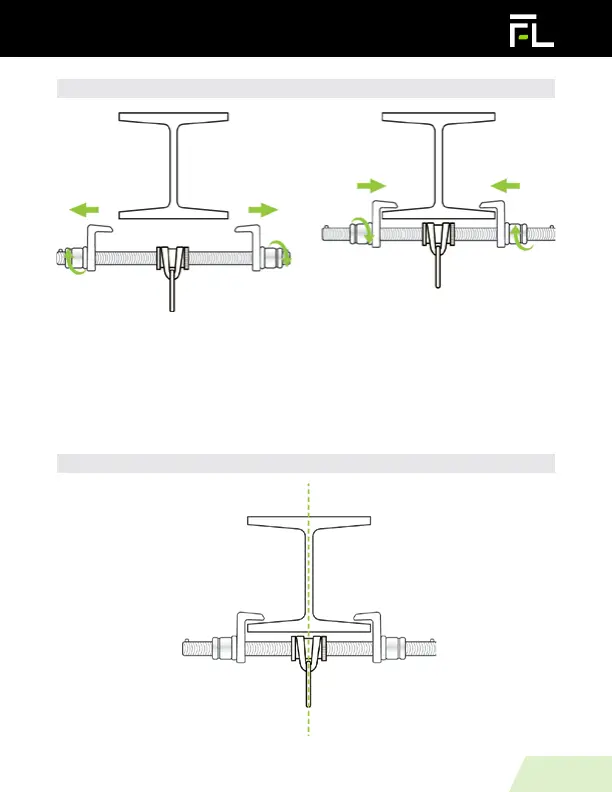

FIGURE 5
FIGURE 6
TO OPEN BEAM CLAMPS TURN
LOCKING NUTS COUNTERCLOCKWISE
TO CLOSE BEAM CLAMPS AND
SECURE BEAM ANCHOR TURN
LOCKING NUTS CLOCKWISE
5. Position the clamps over the beam flange. Then, close the clamps so that the
clamps are over the beam flange and turn locking nuts clockwise in order to
secure the anchor. The beam clamps must be closed symmetrically on the beam
as shown on figure 6.
