Instruction Manual
BUILT TO LAST | MANUFACTURED TO COMPLY | DESIGNED TO PROTECT
20
6. Check stability of the connection and that the anchor is installed correctly and
there is no possibility of self-acting disconnection the beam anchor from the
I
-
Beam.
7. Check that the ends of the I-beam are enclosed so that there is no possibility
of the beam anchor sliding out from I-beam as shown on figure 7.
8. Once correctly installed and inspected, anchor is ready for use with the
compatible additional PFAS.
9. To remove the anchor from I
-
Beam, ensure that employee/user is properly
tied-off and protected before removing anchor. After, turn the locking nuts
counterclockwise to open the clamps and remove the anchor from the I
-
Beam.
FIGURE 7

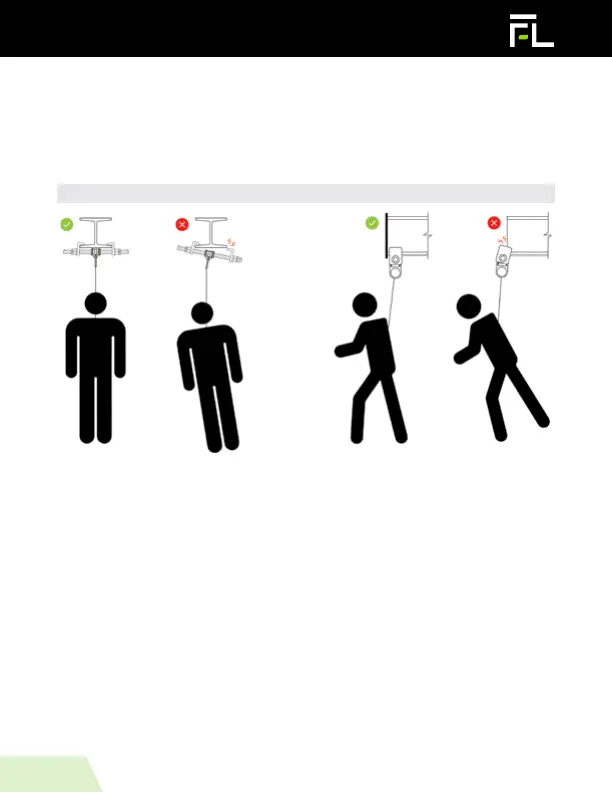

DIRECTION LOADING
Anchor can be installed on structural steel working surfaces, specifically
I
-
Beams for overhead installation and applications. The anchor must be installed
with the d-ring positioned downwards facing the user at an angle no more than
40 degrees as shown on figure 8.
Under no circumstances can the anchor be subject to side loading. Refer to
anchor positioning chart for applications of lower than 40 degrees working
angles for the different allowable distances and angles to reduce swing falls.
