FS S3400-48T4SP - Grounding the Switch

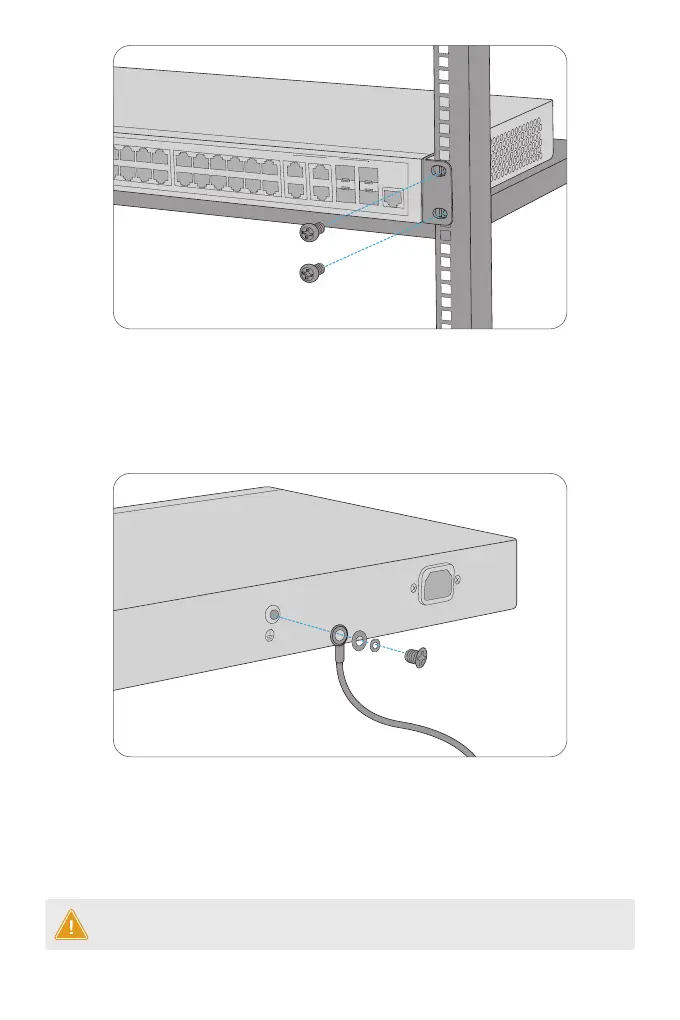

2. Attach the switch to the rack using four M6 screws and cage nuts.
25
27
COMBO
25F
27F
1
3
5
7
9 11
8
10
12
6
4
2
13
15
17
19
21
23
14
16
18
20
22
24
26
28
26F
28F
CONSOLE
13
15
17
19
21
23
25
27
25F
27F
14
16
18
20
22
24
26
28
26F
28F
PoE
PoE
Lnk/Act
RESET
Lnk/Act
PoE
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the
switch is mounted.
2. Secure the grounding lug to the grounding point on the switch back panel with the washers and
screws.
Grounding the Switch
CAUTION: The earth connection must not be removed unless all supply connections have
been disconnected.
100-240V AC
50/60Hz
