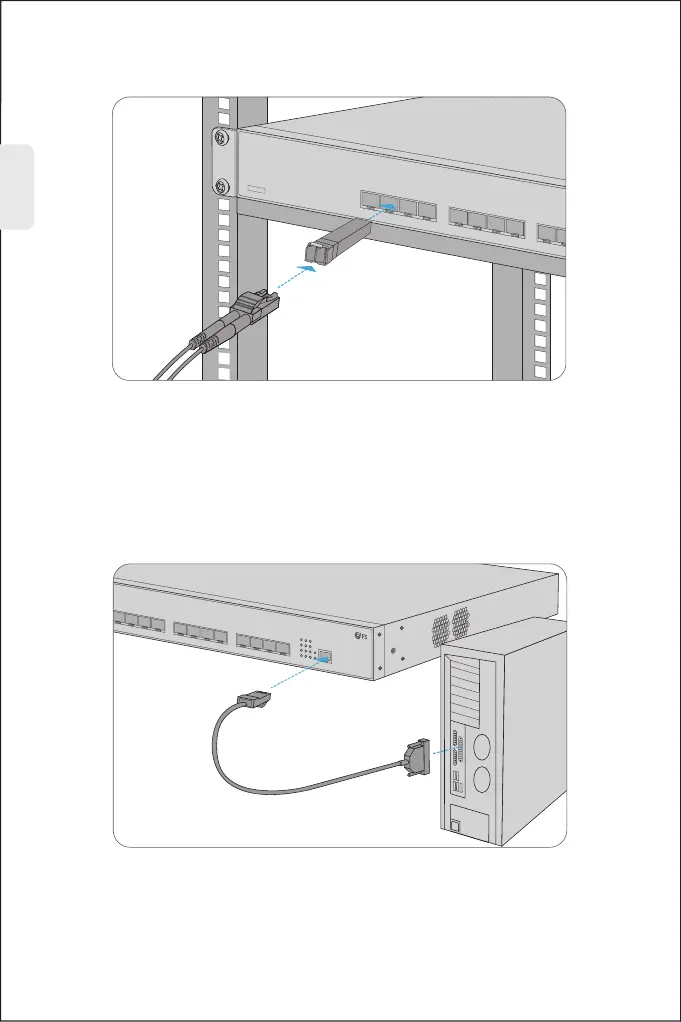

1. Plug the compatible SFP+ transceiver into the SFP+ port.
2. Connect a ber optic cable to the ber transceiver. Then connect the other end of the cable to
another ber device.
1. Insert the RJ45 connector into the RJ45 console port of the switch.
2. Connect the DB9 female connector of the console cable to the serial port on the computer.
Connecting the SFP+ Ports
S5300-12S
1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
Connecting the Console Port
S5300-12S
1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
