S5850 AND S8050 SERIES SWITCHESRESET AND RECOVERY SYSTEM CONFIGURATION GUIDE
1. Configuration Considerations
Table 1 products and versions for example.
S5800 Series,
S5850 and S8050 Series
S5800-8TF12S/S5800-48F4S/S5800-48F4SR/S5800-48T4S
S5850-24T16S/S5850-24T16B/S5850-48S2Q4C
S5850-48S6Q/S5850-32S2Q/S5850-48T4Q/S8050-20Q4C

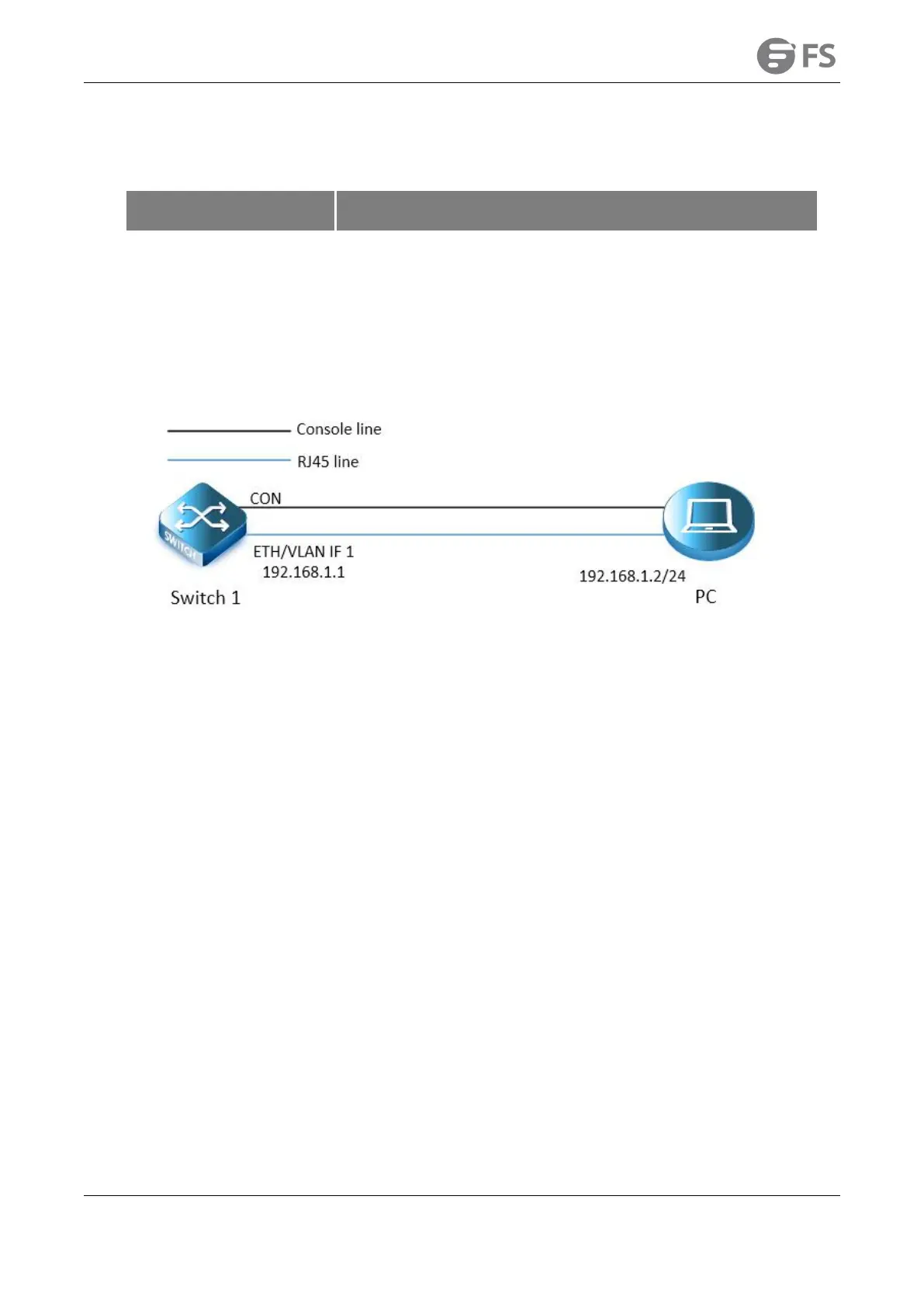

2. Network Topology
3. Operation Steps
3.1 Connection Equipment
#According to the way of networking topo to connect PC and switch to network cable and Console. One end of the RJ-45
network cable is connected to the PC NIC, and the other end is connected to the SW's network port. Connect one end of
Console line USB to PC's USB interface, and the other end of RJ-45 is connected to console interface of front panel of switch.
3.2 Download ConfigurationSoftware
#After the connection is completed, there we recommend the super terminal, putty or Secure CRT tool to configure the switch.
3.3 Switch on and Use LoginSoftware
#Energizing the switch, then open the installed login software, select the serial port of login mode, port through the device
manager to determine. Baud rate :115200, Data bits: 8, Parity: None, Stop bits: 1. (Reference below)
