FScurtis iCommand-Touch - Special Versions; Circuit Diagram; Figure 2: Rear View of Control System (Terminal Assignment)

FSCurtis ICommand-Touch V1.15 01.08.2016
7
2.2 Special versions
There are two special versions of the software with slight deviations from the standard
process. More information is available from FSCurtis on request.
2.3 Circuit diagram

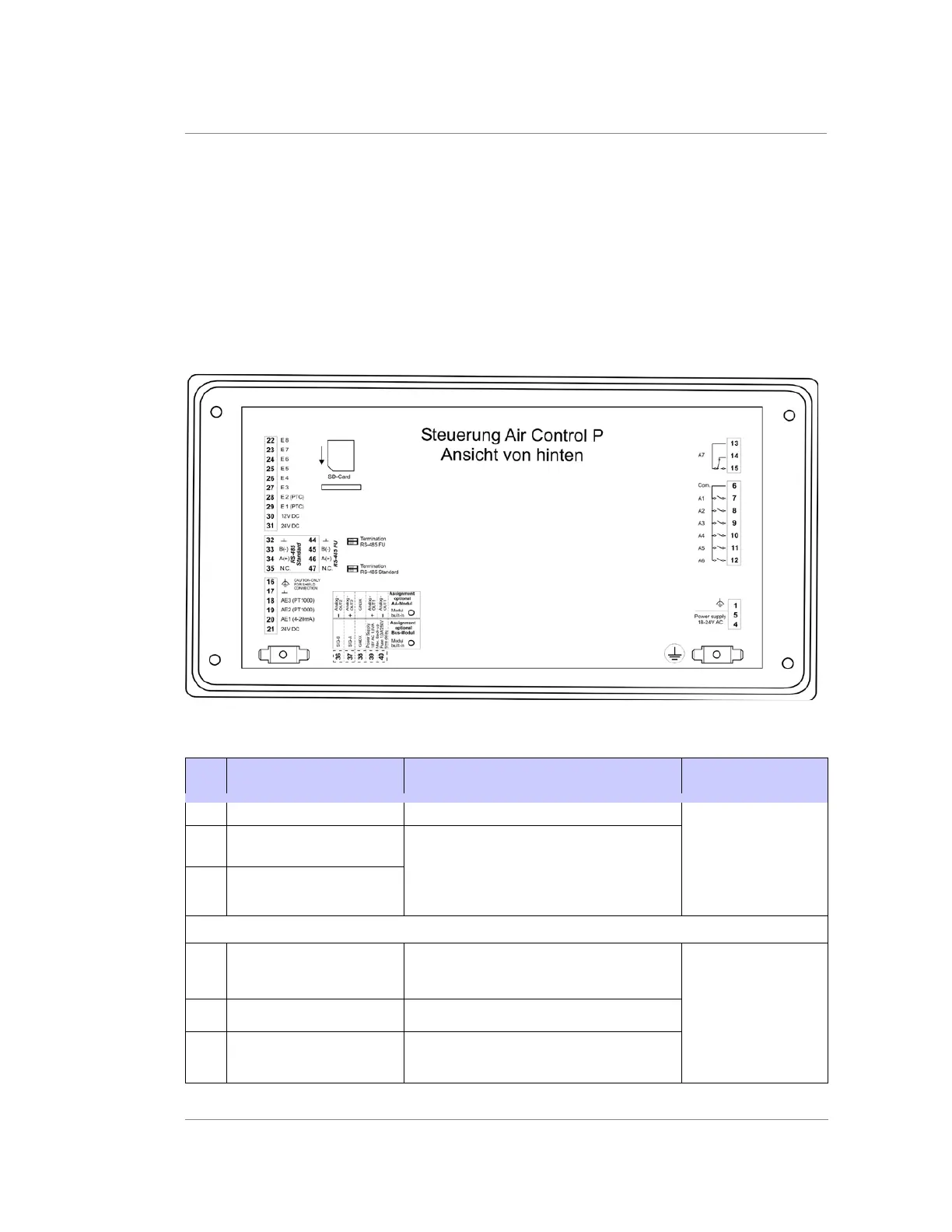

Figure 2: Rear view of control system (terminal assignment).
Pin Designation Function Plug / grid
1 PE Functional earth (EMC) Phoenix
MINI-COMBICON
Grid 3.81 mm,
3-pin
4 0V AC Control system supply
5 18V AC .. 24V AC
6 Relay output A1 – 7
COM
Shared connection for
terminals 7 to 12
Phoenix
COMBICON
MSTBA
Grid 5.0 mm
7-pin
7 Relay output A 1 Mains contactor (fixed)
8 Relay output A 2
Star contactor (freely
programmable for FC)
