FSR FLEX LT-200 - FLEX Back Panels


6
FLEXBackPanels
ThebackpaneloftheFLEXsystemhousestheconnectorsforbothcommunication
andpower.TheEthernetportusesastandardRJ‐45connection.Allother
connectionsuseaplug‐ablescrewterminalstyleconnectorfordevicewiring.The

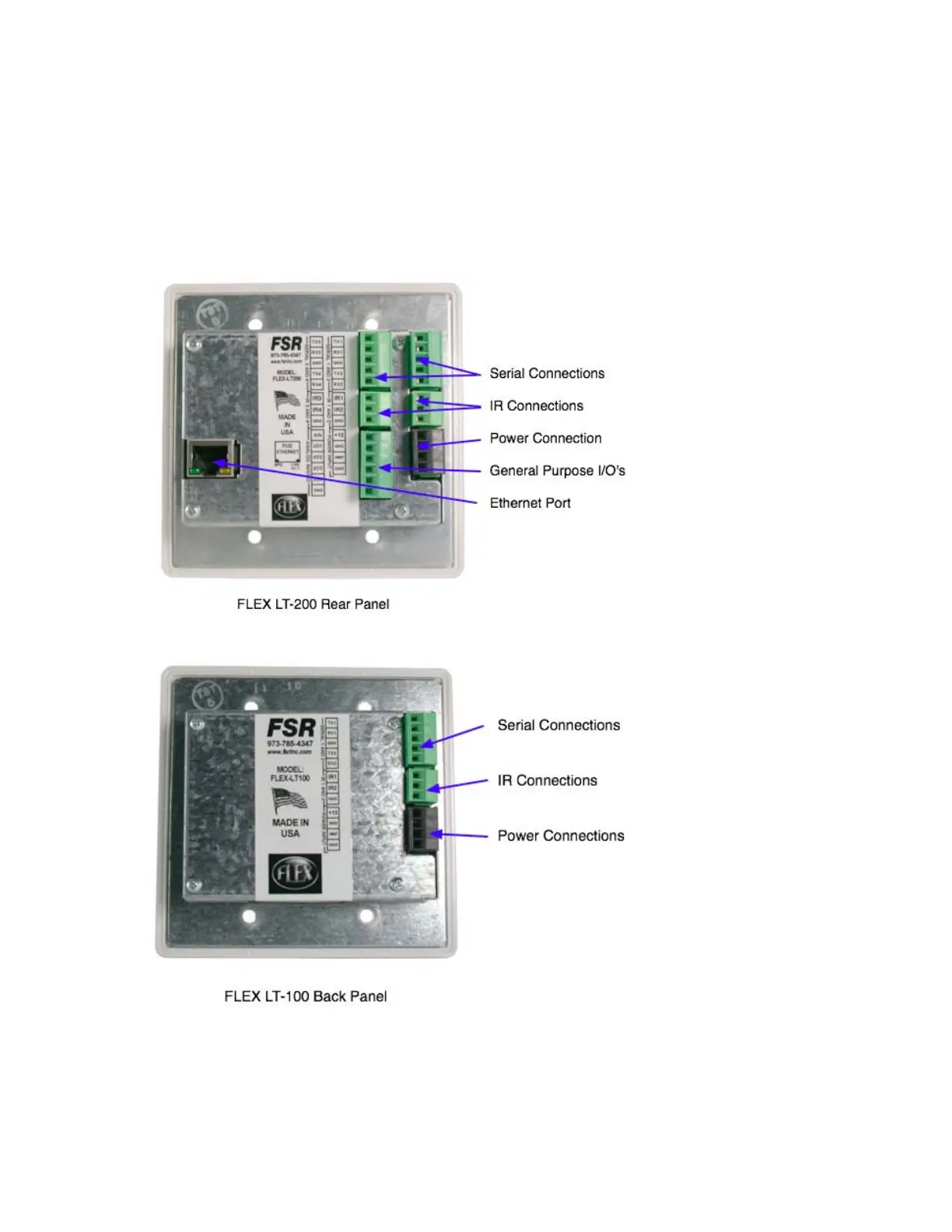

imagesbelowillustratetheconnectionpanelsfromtheLT100,LT‐200andLT‐300
FLEXsystems.

