TheFLEXcontrolpanelisalsoaClass1POEEthernetdevice.Class1requiresa
rangeofpowerwithaminimumof0.44wattstoamaximumof3.84watts.Besure
thatthepowersuppliedovertheEthernetnetworkadherestothesespecifications.

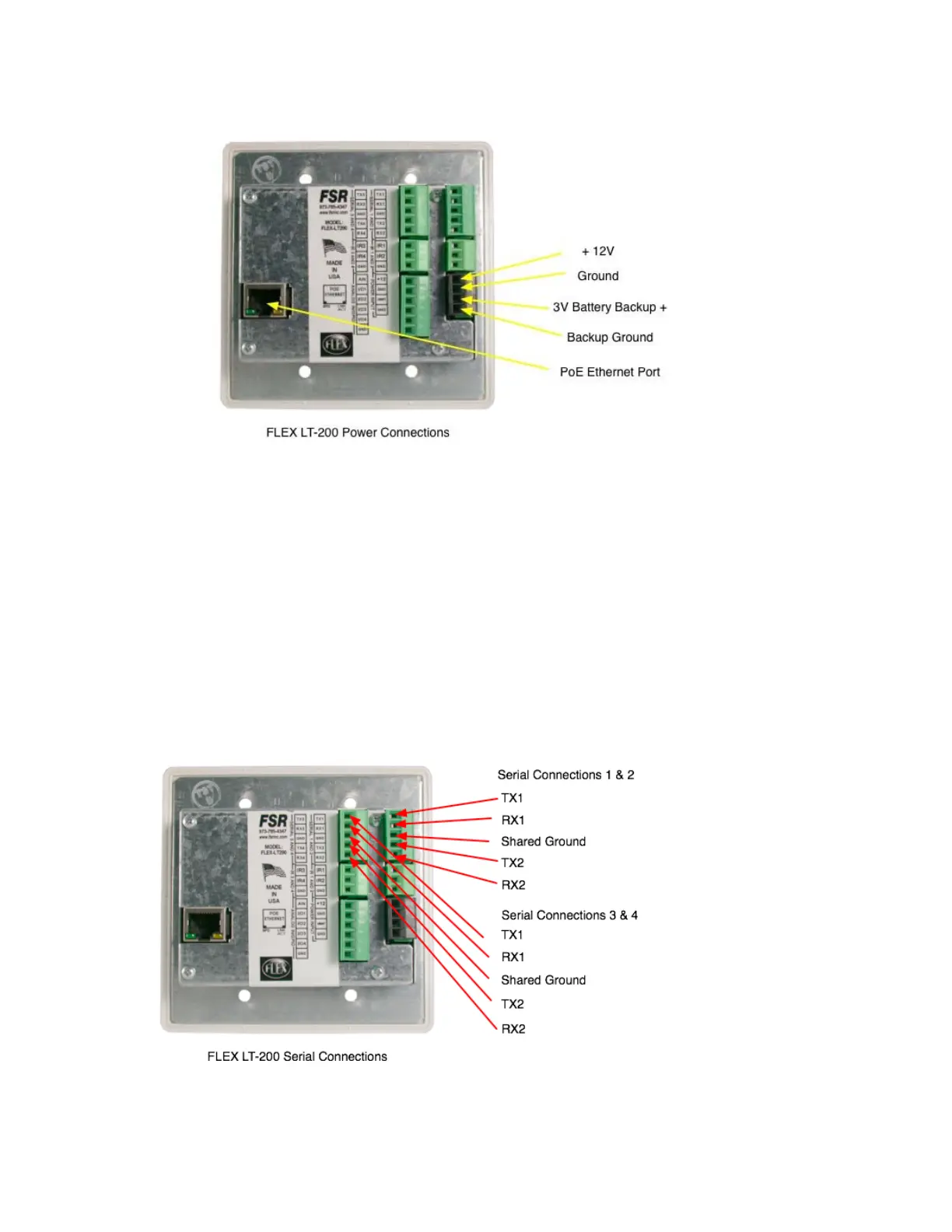

Serialconnections

TheFLEXLT–200hasfourserialconnectorsonthebackpanel.Theconnectionsare
madeusingplug‐ablescrewterminalconnectors.Tomaketheconnection,stripthe
wiresasneeded.TheFLEXcontrolpanelhasawiringdiagramontherearpanel.
Wireeachpluggablescrewterminalconnectorasillustratedbelow.Eachpairof
serialconnectionssharethecenterconnectorasgroundwithRXandTXconnected
asillustratedbelow.

