Once the stirrer assembly is in place, adjust the four holding screws by hand 3.
so that each screw lightly touches the side of the reservoir. Then, use a
screwdriver to further extend each screw so that the stirrer is held snugly in
place in the center of the reservoir. Be sure that all screws are extended to
the same length; this will keep the stirrer assembly centered in the bath.
Hold the vortex breaker by its metal handle (a small tab, bent 90° at the tip) 4.
and place it into the reservoir so that it rests evenly on top of the magnetic
stirrer. (Pushing the edges of the vortex breaker beyond the black gasket at
the top of the reservoir may require some force.)

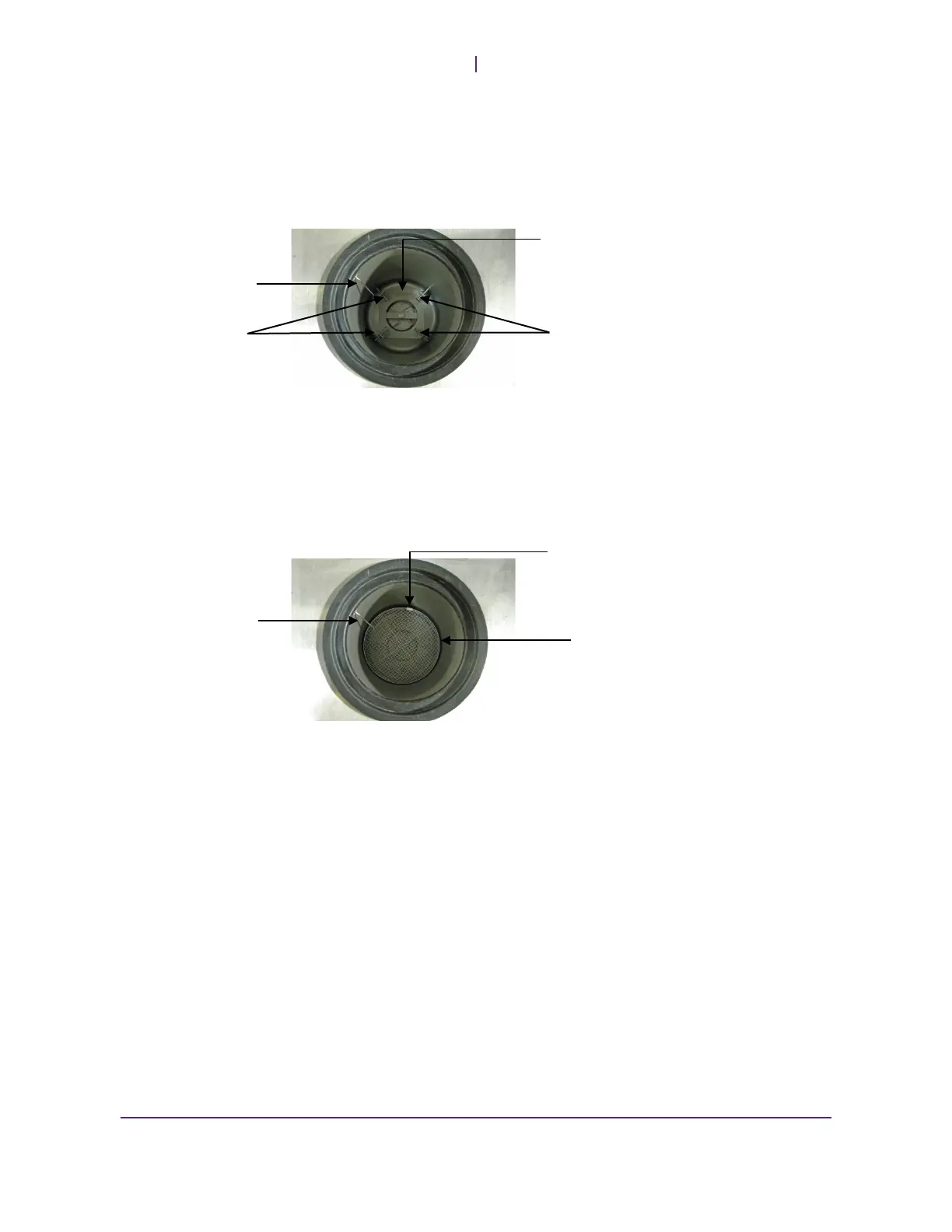

Magnetic Stirrer in Reservoir
Magnetic Stirrer and Vortex Breaker
Assembled in Reservoir
