Product Overview
2

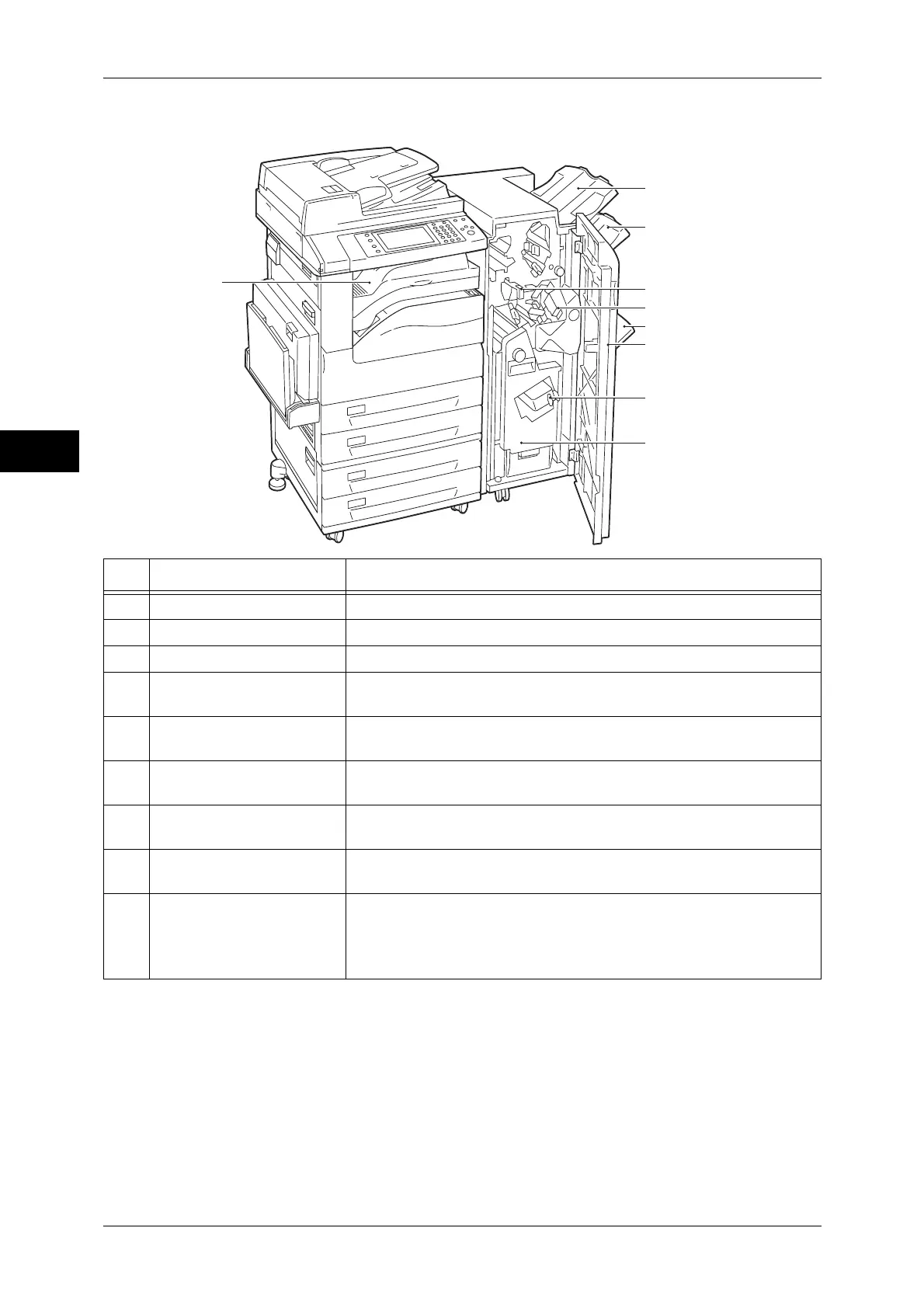

Finisher-C1 (optional) and Finisher-C1 with Booklet Maker (optional)
Note • The Finisher-C1 and the Finisher-C1 with Booklet Maker are optional. In this guide, the
Finisher-A1, Finisher-B1, and Finisher-C1 are referred to as the "finisher".
No. Component Function
1 Output tray Outputs are delivered here.
2 Finisher tray Stapled outputs are delivered here.
3 Hole-punch waste container Collects scraps from the puncher.
4 Staple cartridge Contains staples. Remove this cartridge when replacing or adding
staples, or clearing staple jams.
5 Booklet tray (Finisher-C1
with Booklet Maker only)
Documents are delivered here when folding is selected for the Booklet
Creation feature.
6 Front door Open this cover when clearing paper jams, replacing or adding staples,
clearing staple jams, or discarding punch scraps.
7 Booklet staple cartridge Contains staples. Remove this cartridge when replacing or adding
staples, or clearing staple jams.
8 Booklet unit (Finisher-C1
with Booklet Maker only)
Folds and staples outputs.
9 Center tray (Top cover of
the finisher transport)
Copies and prints are delivered here when they cannot be delivered to
the output tray or the finisher tray.
Pull the cover upward when clearing paper jams.
Note • Remove outputs delivered to the center tray constantly.
2
3
4
5
6
7
8
1
9
