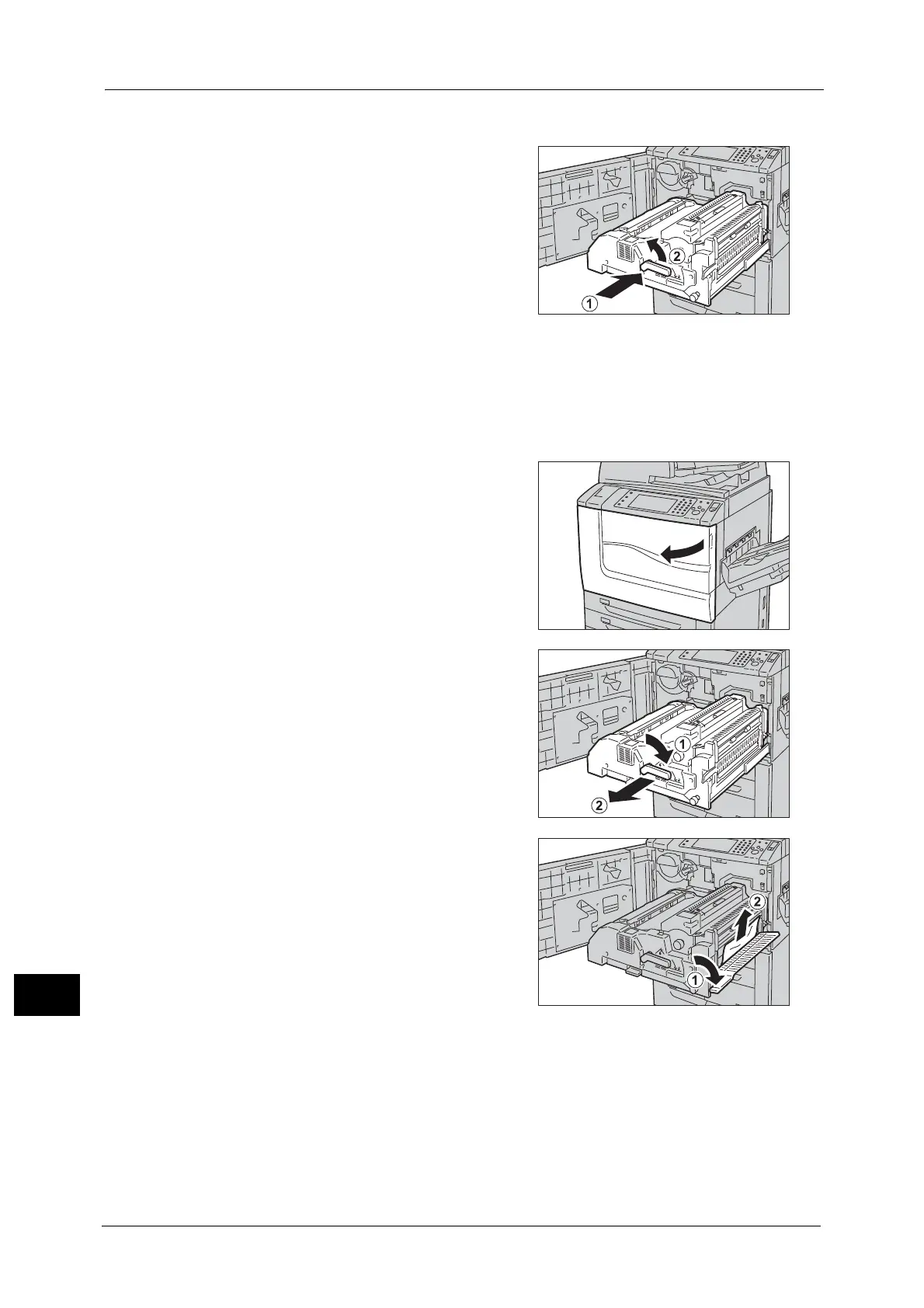

5 Return the Handle [2d] to the original position.
6 Insert the transfer module completely and turn
the green Handle [2] to the left.
Note • If you cannot turn the handle, pull the
transfer module to the middle and insert it
again.
7 Close the front cover.
Note • If the front cover is not completely closed, a message will appear and the machine will remain
paused.
Paper Jams at the Handle [2e]
1
Make sure that the machine is not in operating,
and open the front cover.
Important • Before pulling out the transfer module, check
the touch screen to make sure that no paper
remains in the covers of the machine, Tray 5
(Bypass), the output tray, HCF (A4 1 Tray)
(optional), HCF (A4 2 Tray) (optional), and a
finisher (optional). Paper may be torn if
paper remains in these locations.
2 Turn the green Handle [2] at the center of the
transfer module to the right until it is in the
horizontal position and then pull the transfer
module out to the end.
3 Move the Handle [2e] to the right and remove
the jammed paper.
4 Return the Handle [2e] to the original position.
