Paper Jams at the Knob [2c], the Handle [2e]/[2f], and the Tri-fold Output Tray [2d]
1

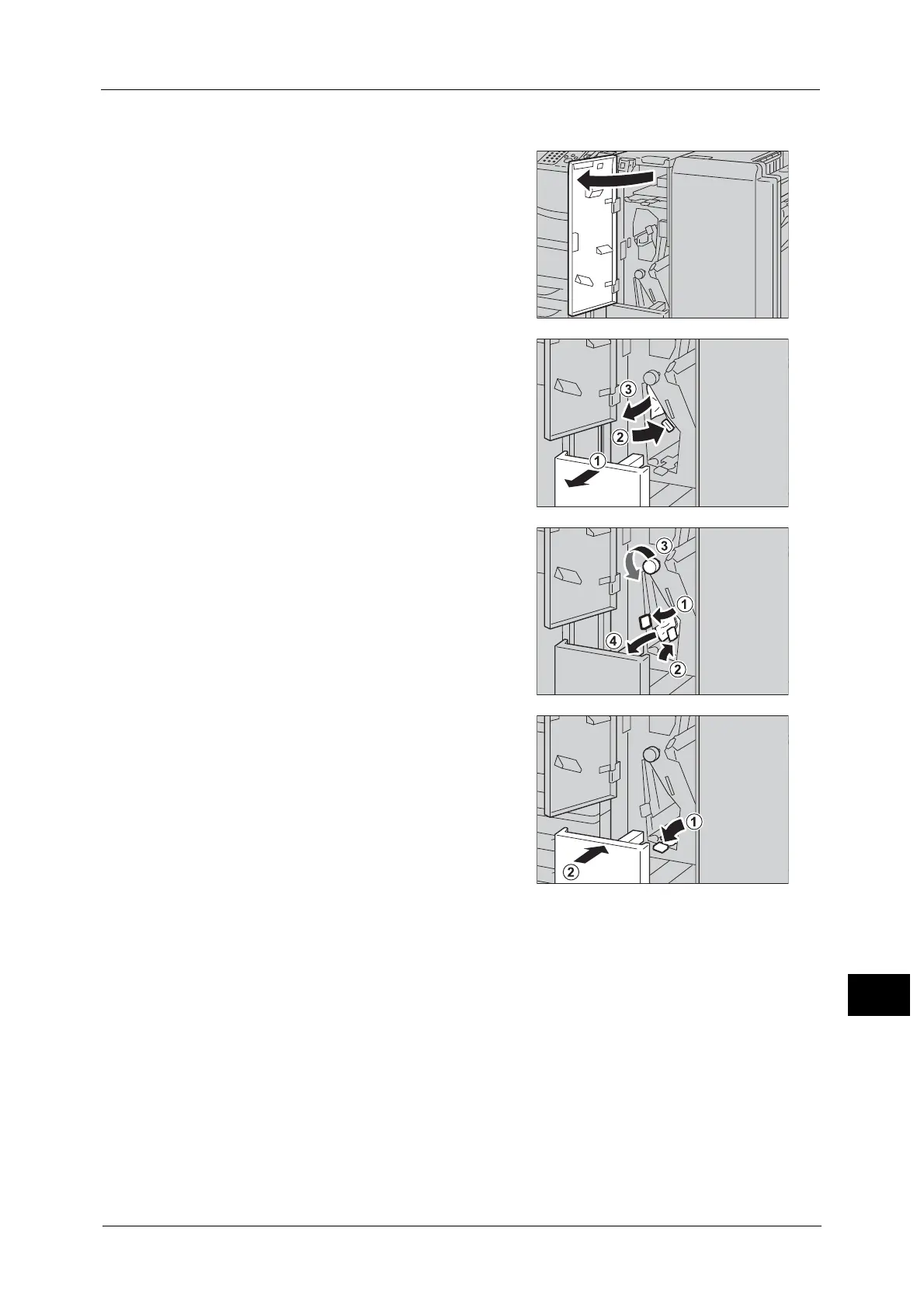

Make sure that the machine has stopped, and
open the folder unit door of the Folder Unit
CD1.
2 Pull out the Tri-fold output tray [2d] (1), and
move the handle [2e] to the right (2). Remove
the jammed paper (3).
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
3 If you cannot remove the paper in step 2,
return the handle [2e] to its original position
(1), and move the handle [2f] (2). Turn the
knob [2c] to the left (3), and then remove the
jammed paper (4).
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
4 Return the handle opened ([2f] or [2e]) to its
original position (1), and push the Tri-fold
output tray [2d] in (2).
5 Close the folder unit door of the Folder Unit CD1.
Note • A message will be displayed and the machine will not operate if the folder unit door of the Folder
Unit CD1 is even slightly open.
