15 Problem Solving
560
Problem Solving
15
Paper Jams in the Transfer Module
The following describes how to clear paper jams in the transfer module.
Paper Jams at the Handle [2b]................................................................................................................................................. 560
Paper Jams at the Handle [2d] and the Knob [2c].............................................................................................................. 561
Paper Jams at the Handle [2e]................................................................................................................................................. 562
Paper Jams at the Handle [2f] and the Knob [2g] .............................................................................................................. 563

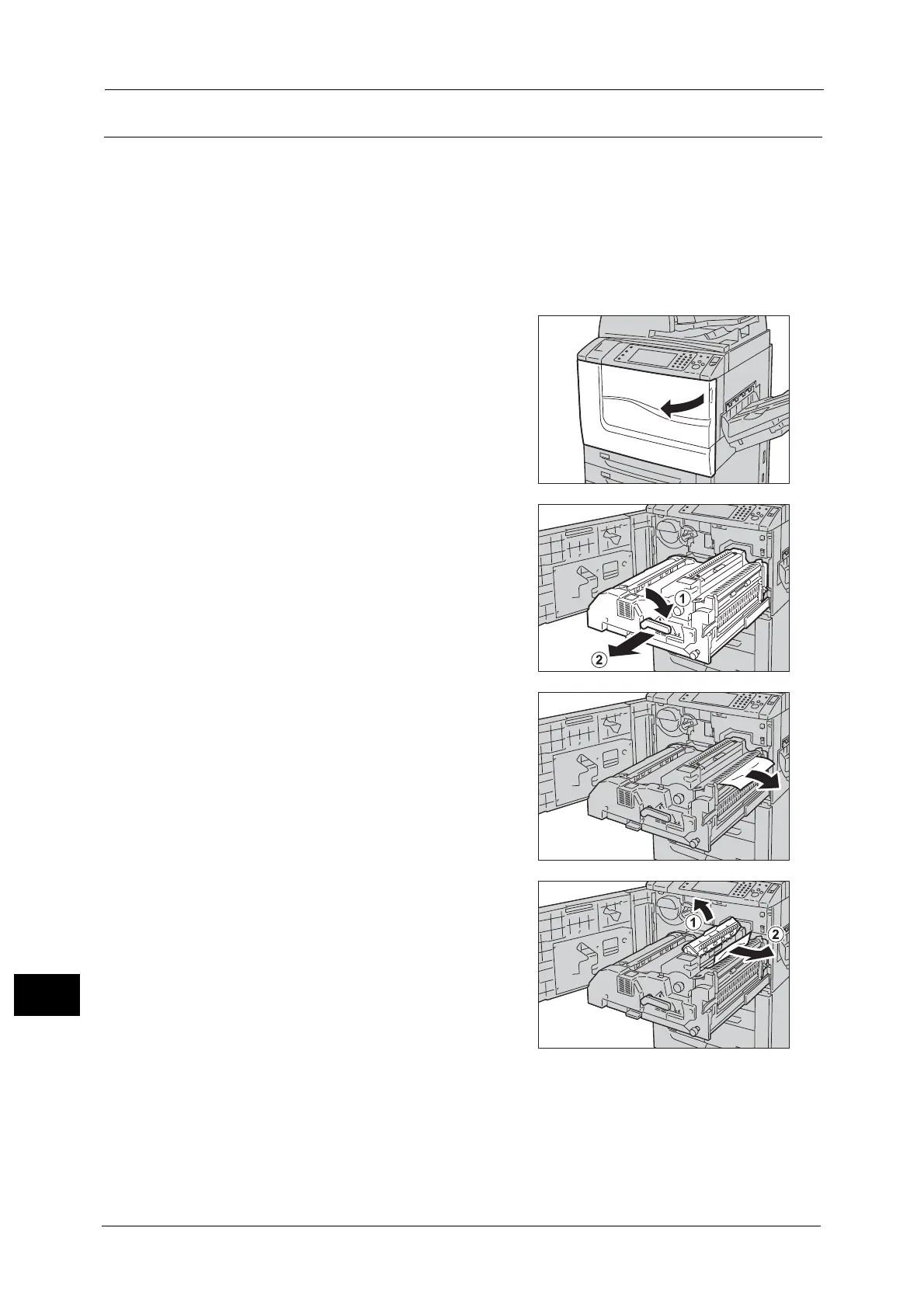

Paper Jams at the Handle [2b]
1
Make sure that the machine is not in operating,
and open the front cover.
Important • Before pulling out the transfer module, check
the touch screen to make sure that no paper
remains in the covers of the machine, Tray 5
(Bypass), the output tray, HCF (A4 1 Tray)
(optional), HCF (A4 2 Tray) (optional), and a
finisher (optional). Paper may be torn if
paper remains in these locations.
2 Turn the green Handle [2] at the center of the
transfer module to the right until it is in the
horizontal position and then pull the transfer
module out to the end.
3 Remove the visible jammed paper.
Note • If paper is torn, check for any torn pieces of
paper in the unit.
4 Move the Handle [2b] to the left and remove
the jammed paper.
5 Return the Handle [2b] to the original position.
To Next Page
