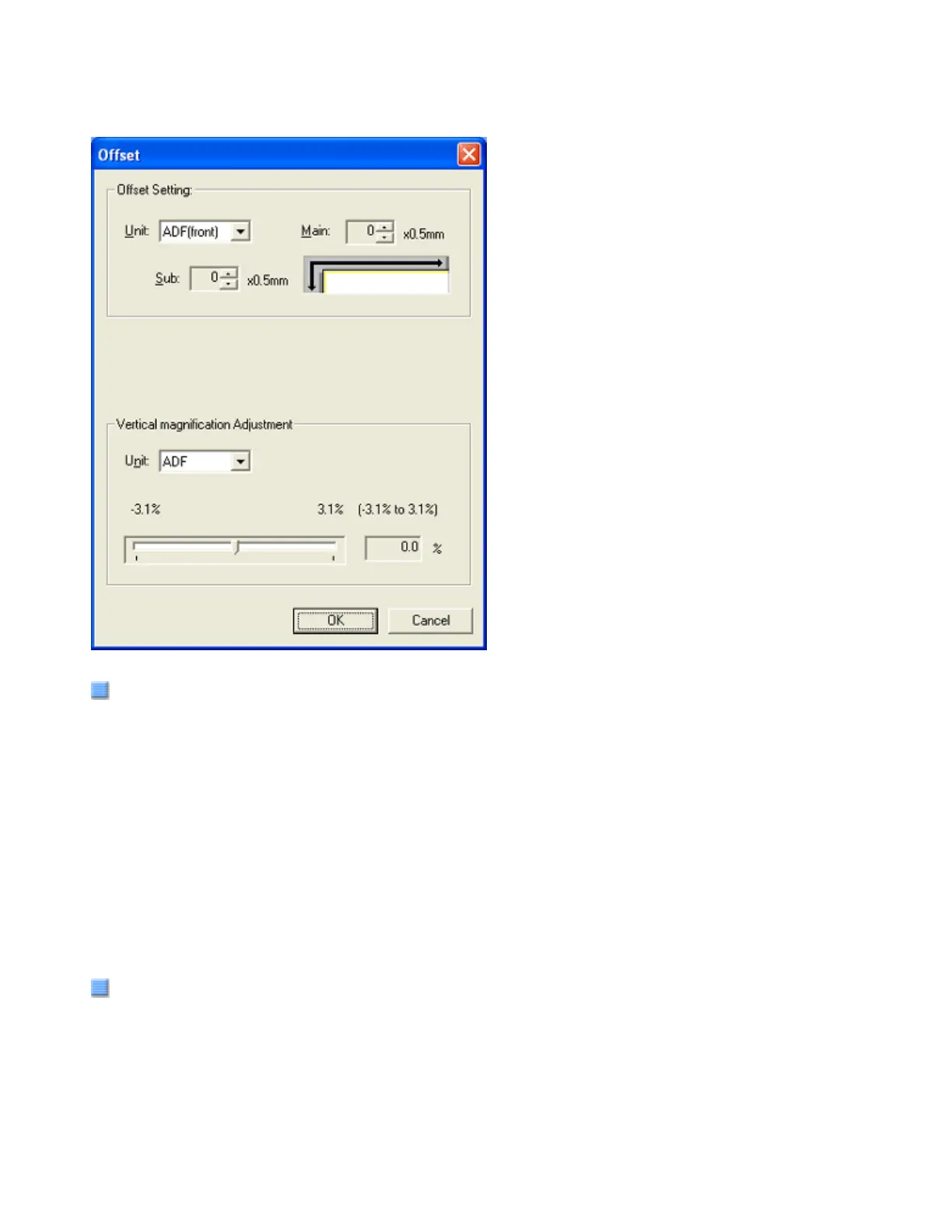

8.3 Offset/Scan Scale
3. Adjust the Offset/Scan scale as necessary.
Offset setting
Target
Select ADF front, ADF back, or FB as target.
Horizontal
Adjusts the horizontal Offset.
Setting range -2 mm to +2 mm, in steps of 0.5 mm.
Vertical
Adjusts the vertical Offset.
Setting range -2 mm to +2 mm, in steps of 0.5 mm.
Scan scale setting
Target
Select ADF or FB as target.
Vertical
Adjusts the vertical (document length) Scan scale.
Setting range -3.1% to +3.1%, in steps of 0.1%.
