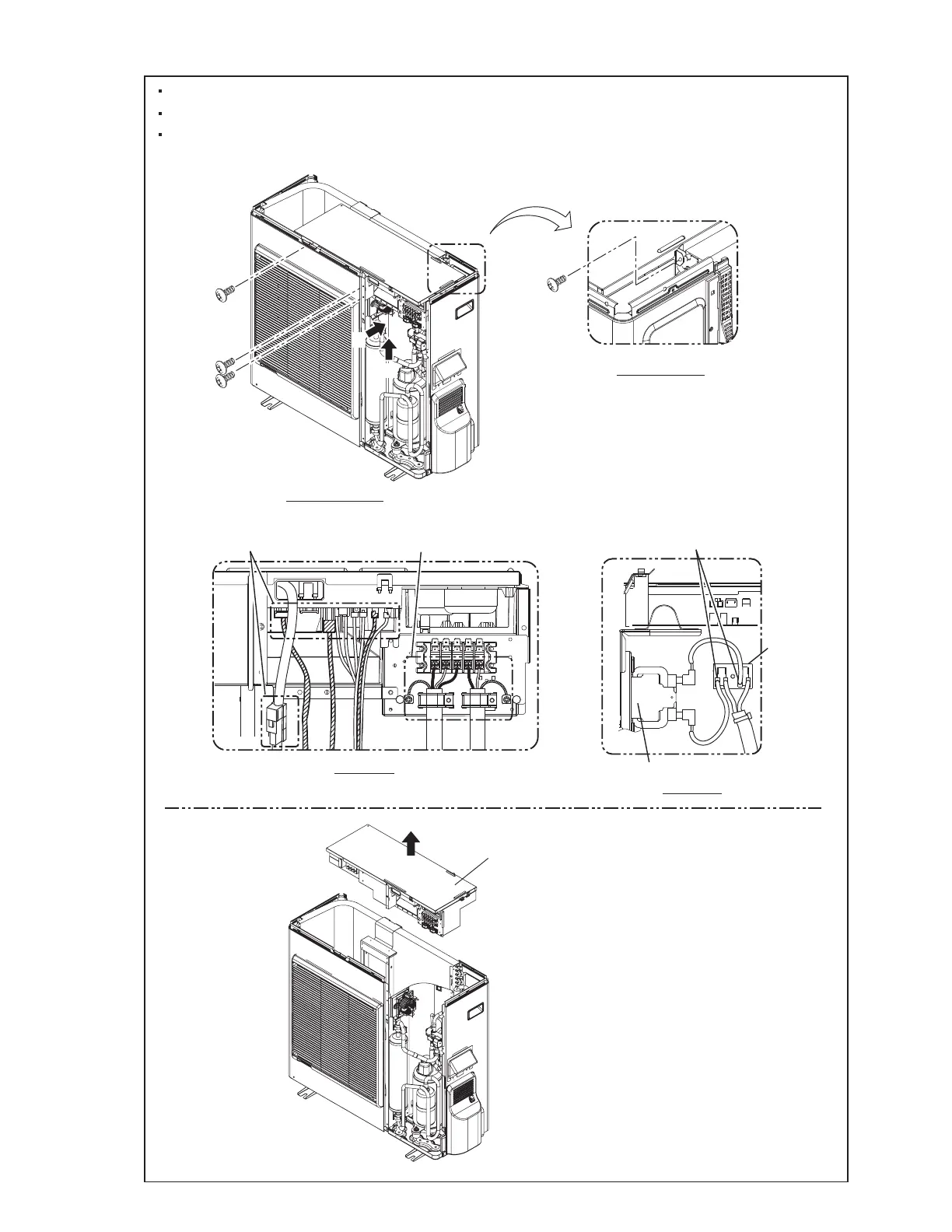

3. INVERTER BOX removal
Remove the 4 mounting screws.
Remove the connectors and cords. (Refer to VIEW -C,-D)
Remove the INVERTER BOX upward.
03-05
G
G
Remove power supply &
Connection cord.
Remove the connectors
Remove the connectors
C
D
VIEW - C
VIEW - D
Choke coil
Terminal
REAR VIEW
FRONT VIEW
INVERTER BOX
63
65
