Model: AOHG14KVCBN

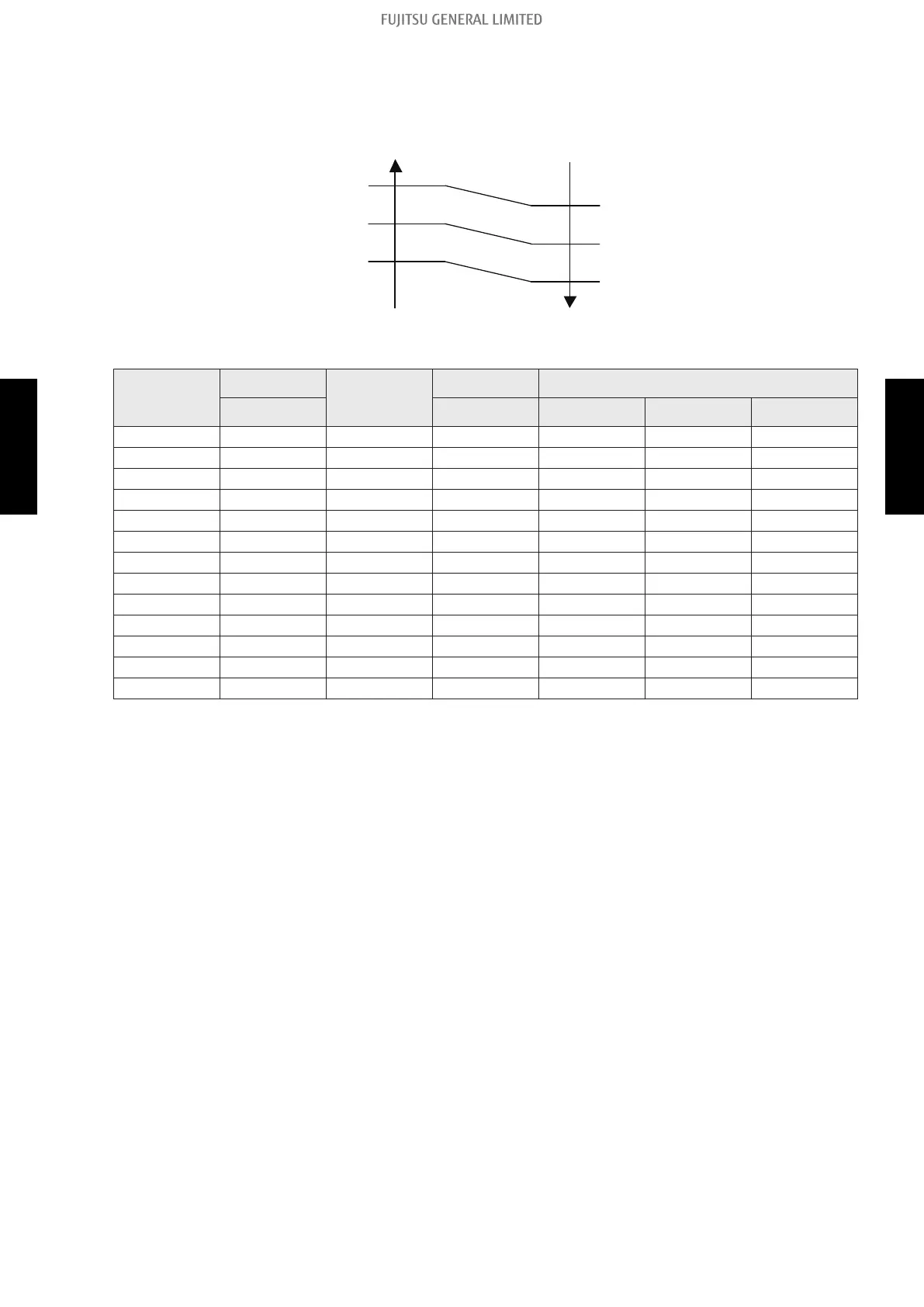

Fan speed is defined by outdoor temperature and compressor frequency.
• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12°C
2°C
19°C
10°C
0°C
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone
S-HIGH2 — 1,140 — — — —
S-HIGH1 1,050 1,140 — — — —
HIGH 1,050 870 — — — —
10 — 870 — — — —
9 1,050 870 1,050 1,050 210 190
8 970 850 970 970 210 190
7 890 850 890 890 210 190
6 890 570 890 890 210 190
5 770 510 770 770 210 190
4 630 470 630 630 210 190
3 510 420 510 510 210 190
2 400 420 400 400 210 190
1 400 420 400 400 210 190
NOTE: After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,140 rpm
3-2. Outdoor fan control - (04-16) - 3. Fan control
