Fujitsu AGYF12LAC - Page 23

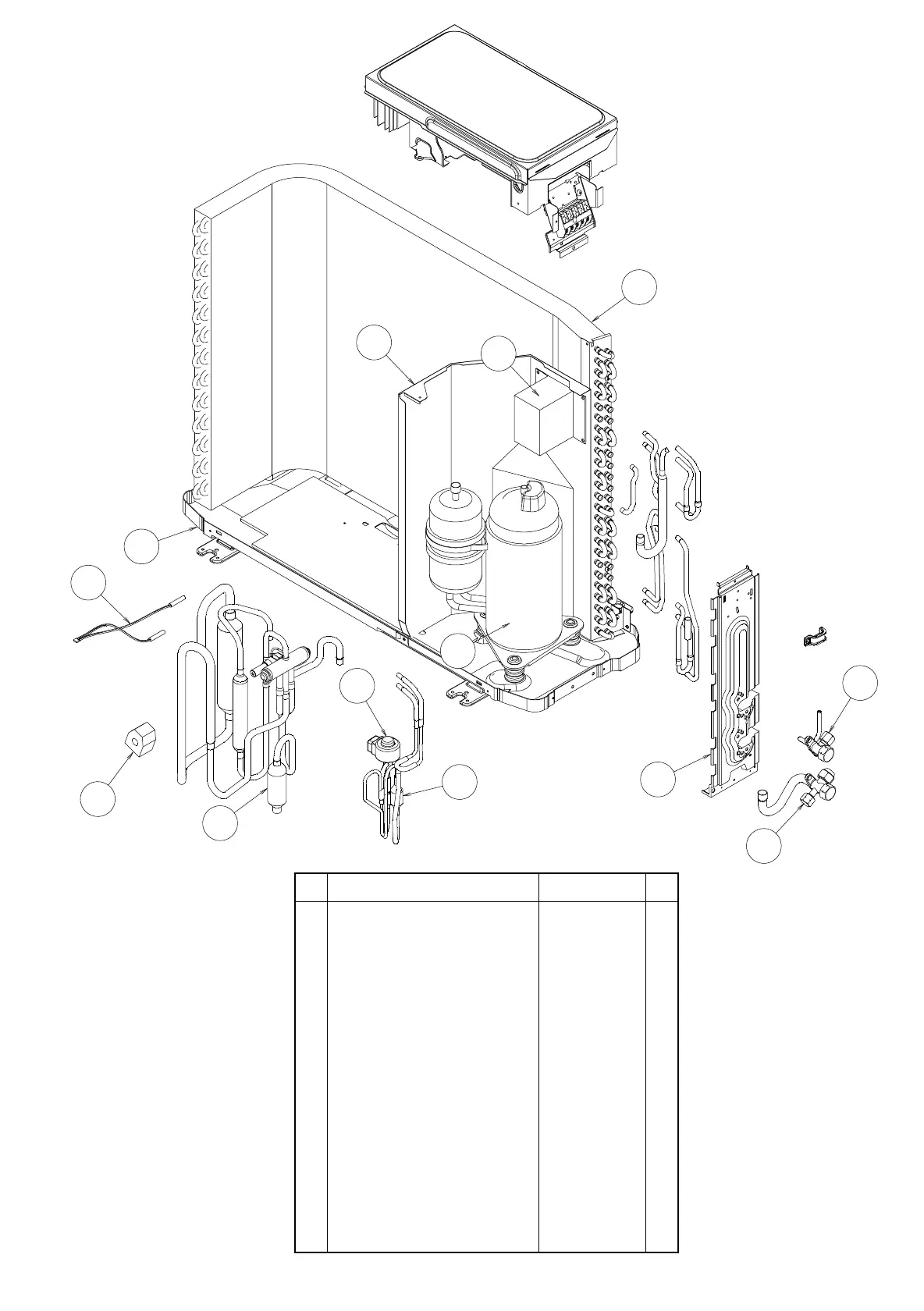

OUTDOOR UNIT
AOYV14LA_
222008.05.08
21
13
26
19
20
13 Condenser Assy
Parts numberDescriptionRef
9311382065
19 2-Way Valve Assy 9313064013
25 Pulse Motor Valve Assy 9311641018
24 Compressor Assy 9313763022
23 Separater Assy 9312971015
22 Reactor Assy 9900354015
21 Bracket (Valve) 9308870025
20 3-Way Valve Assy 9315159014
25
22
23
24
27
30
28
29
26 Coil (Expansion Valve) 9900057039
30 Base Assy 9308869081
29 Thermistor Assy (Discharge) 9900473013
28 Solenoid 9970033018
27 Valve (4-Way) Assy 9316475014
