Fujitsu AGYF12LAC - Refrigerant System Diagram

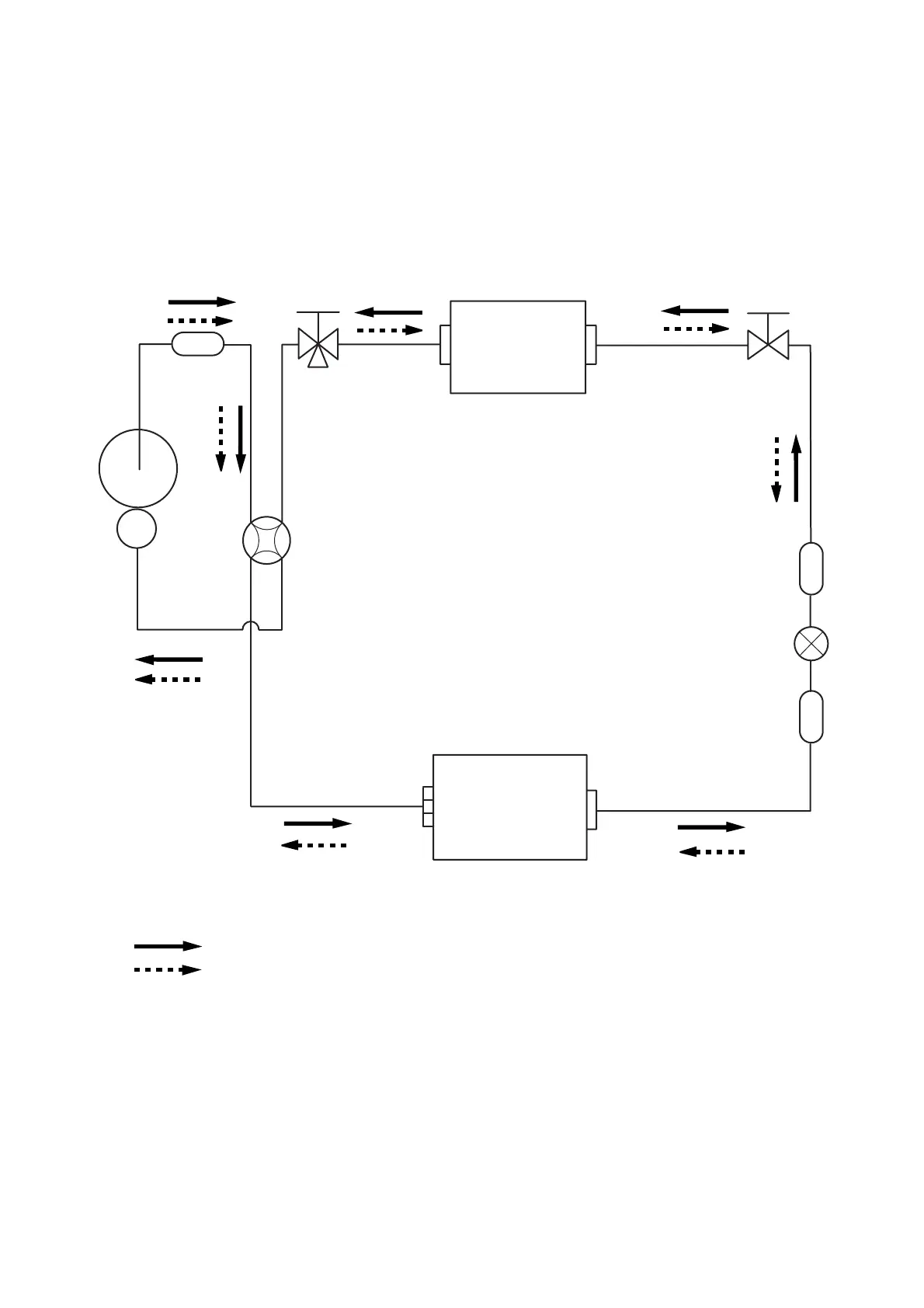

REFRIGERANT SYSTEM DIAGRAM
2-Way
valve
Strainer
Strainer
3-Way
valve
Muffler
4-Way valve
Expansion valve
Indoor unit
Heat exchanger
Outdoor unit
Heat exchanger
Compressor
Refrigerant direction
Heating
Cooling
Refrigerant pipe diameter
AGYF09LAC / AOYV09LAC
AGYF12LAC / AOYV12LAC
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
AGYF14LAC / AOYV14LA_
Liquid : 1/4" (6.35 mm)
Gas : 1/2" (12.7 mm)
2008.04.18
4
