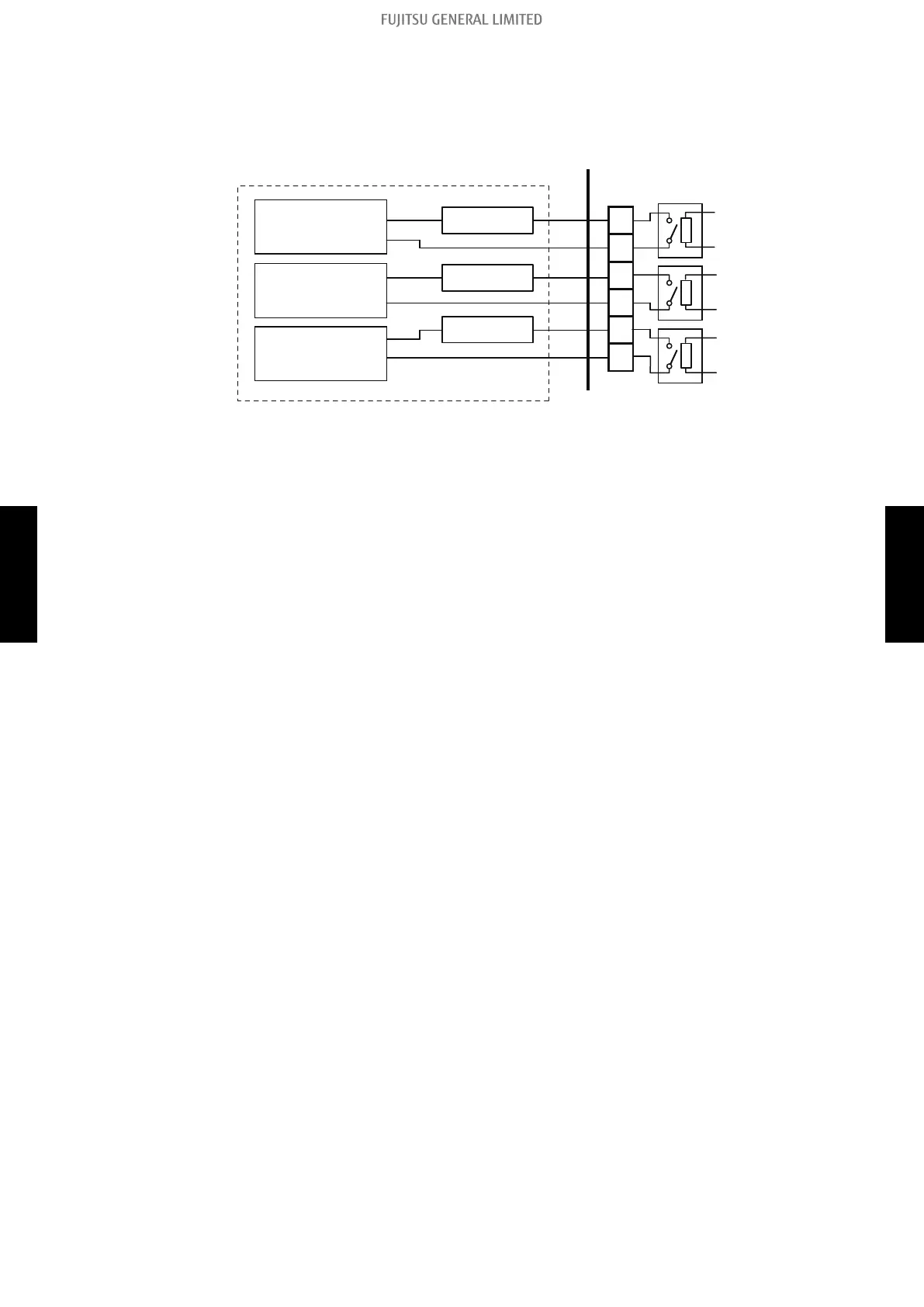

External input and output PCB

• A twisted pair cable (22AWG) should be used.

• Permissible voltage and current: DC 5 V to 30 V / 3 A, AC 30 V to 250 V / 3 A

• For details, refer to Chapter 4-3. "Combination of external input and output" on page 05-25.

Power supply

PCB

Connected device 1

(Operation status)

Connected device 2

(Error status)

(Indoor unit fan

operation status)

Connected device 3

Example

4-2. External output

- (05-24) - 4. External input and output

FIELD

WORKING

FIELD

WORKING
