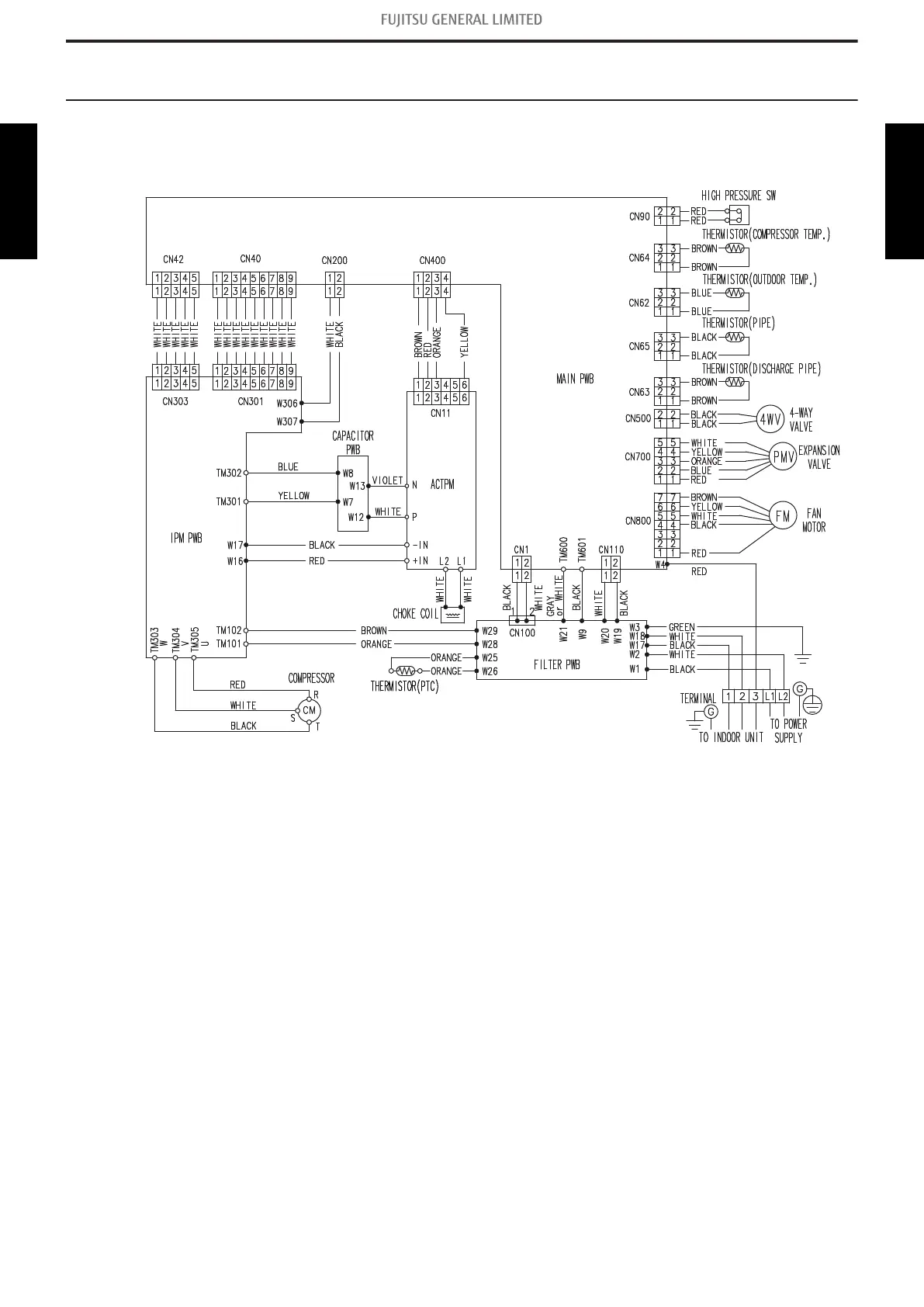

7. Wiring diagrams
7-1. Outdoor unit
¢
Models: AOU24RGLX and AOU30RGLX
7-1. Outdoor unit - (02-25) - 7. Wiring diagrams
TECHNICAL DATA
AND PARTS LIST
