Fujitsu AMUG36LMAS

Outdoor temperature sensor error
OK
DC
CN62
AOU24RGLX
AOU30RGLX
(OUT TEMP.) THERMISTOR
1 2 3
1 2 3
BLUE BLUE
CN61
AOUG36LMAS1
AOUG48LMAS1
(OUT TEMP.) THERMISTOR
1 2 3
1 2 3
BLACK BLACK
Outdoor temperature thermistor
short or open detected
1. Connector connection defective, open
2. Thermistor failure
3. Main PCB failure

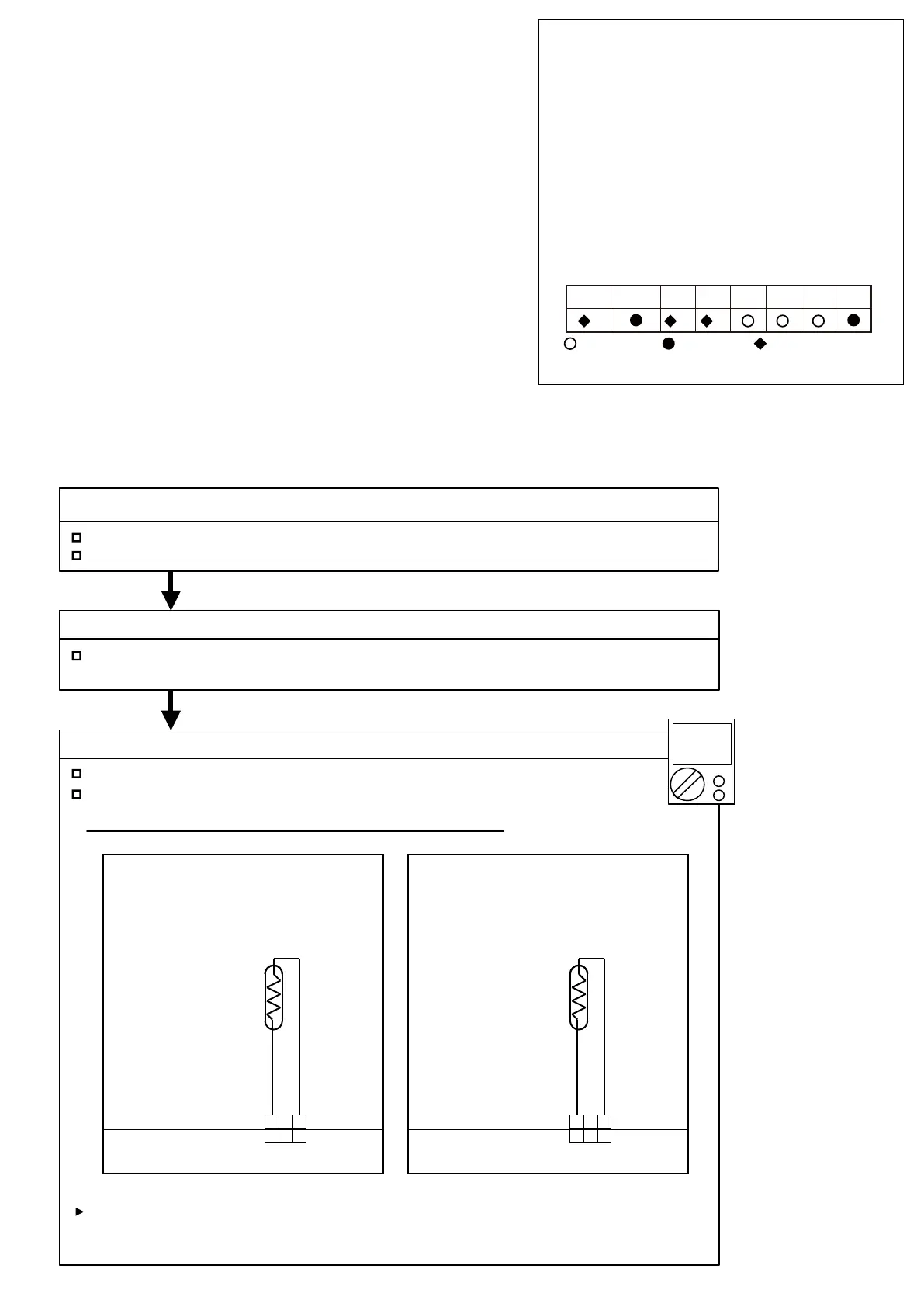

Check Point 1 : Check the connector connection and cable open
Connector connection state check
Cable open check
Check Point 2: Check the thermistor
Thermistor characteristics check (Disconnect the thermistor from the PCB and check.)
* For the thermistor characteristics, refer to the "Parts Information 7".
Check Point 3 : Check voltage of main PCB (DC5.0V)
Main PCB (CN62:1-3) voltage value = 5V (AOU24/30RGLX)
Main PCB (CN61:1-3) voltage value = 5V (AOUG36/48LMAS1)
Remove thermistor from main PCB, and check voltage.
If voltage does not appear, replace main PCB,
and execute check operation again.
03-28
Troubleshooting 21
Detective details:
Outdoor temperature thermistor
Detective actuators:
Forecast of cause:
Indicate or Display:
Indoor unit
Operation lamp: 7 times Flash,
Timer lamp : 4 times Flash
Wired remote control
Error code : [E : 74]
n
: n times blinking
: Light ON: Light OFF
Mode Error
2 7
4
Outdoor unit (AOUG36/48LMAS1)
A B C D E F
