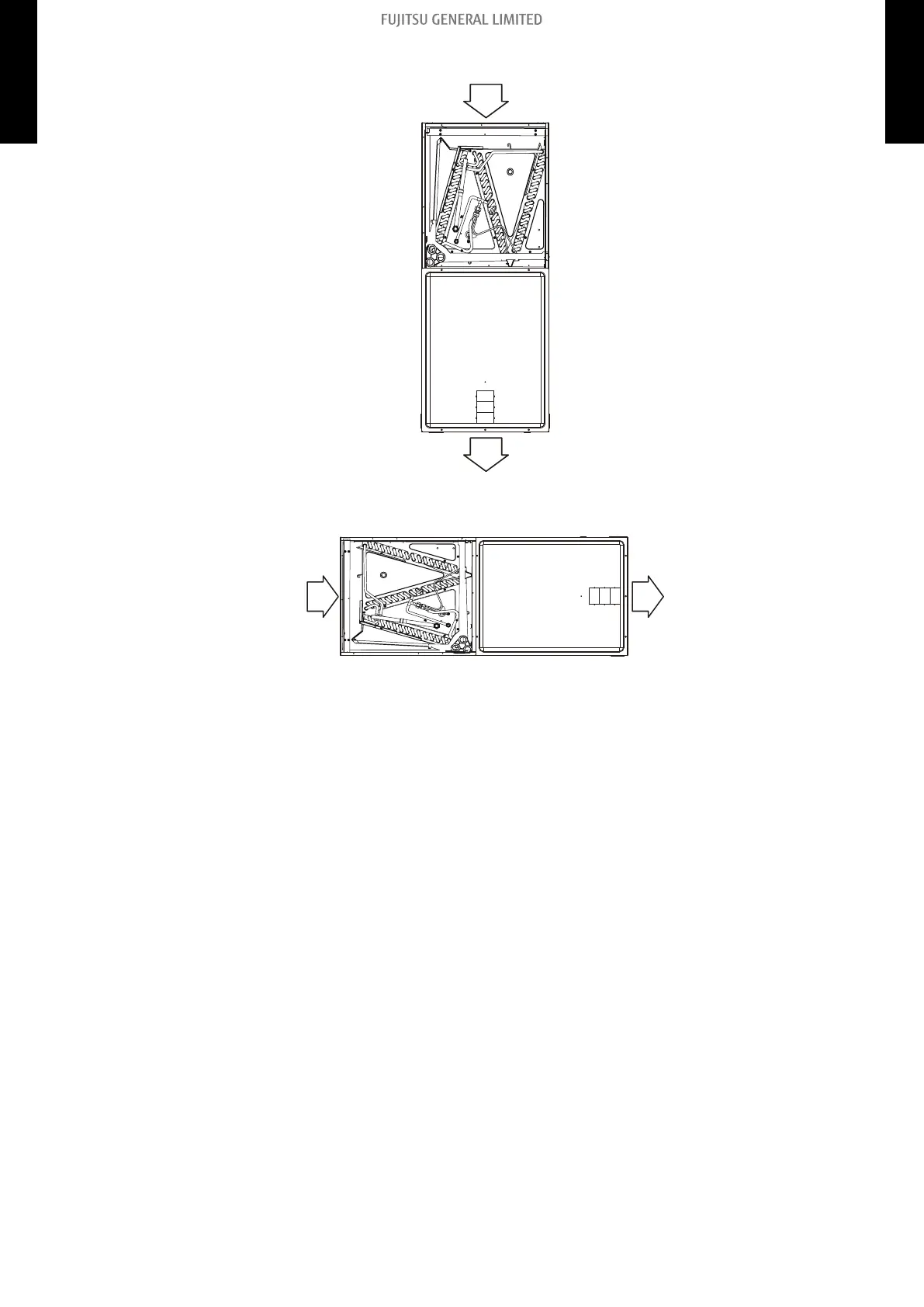

• Pattern C: Vertical installation, air intake port at the top
Reversing the heat exchanger and reattaching the thermistor are required
AIR
AIR
• Pattern D: Horizontal installation, air intake port at the left
Reversing the heat exchanger and reattaching the thermistor are required
AIR
AIR
- 6 -
2-2. Installation space requirement 2. Dimensions
DUCT TYPE
AMUG24-48LMAS
DUCT TYPE
AMUG24-48LMAS
