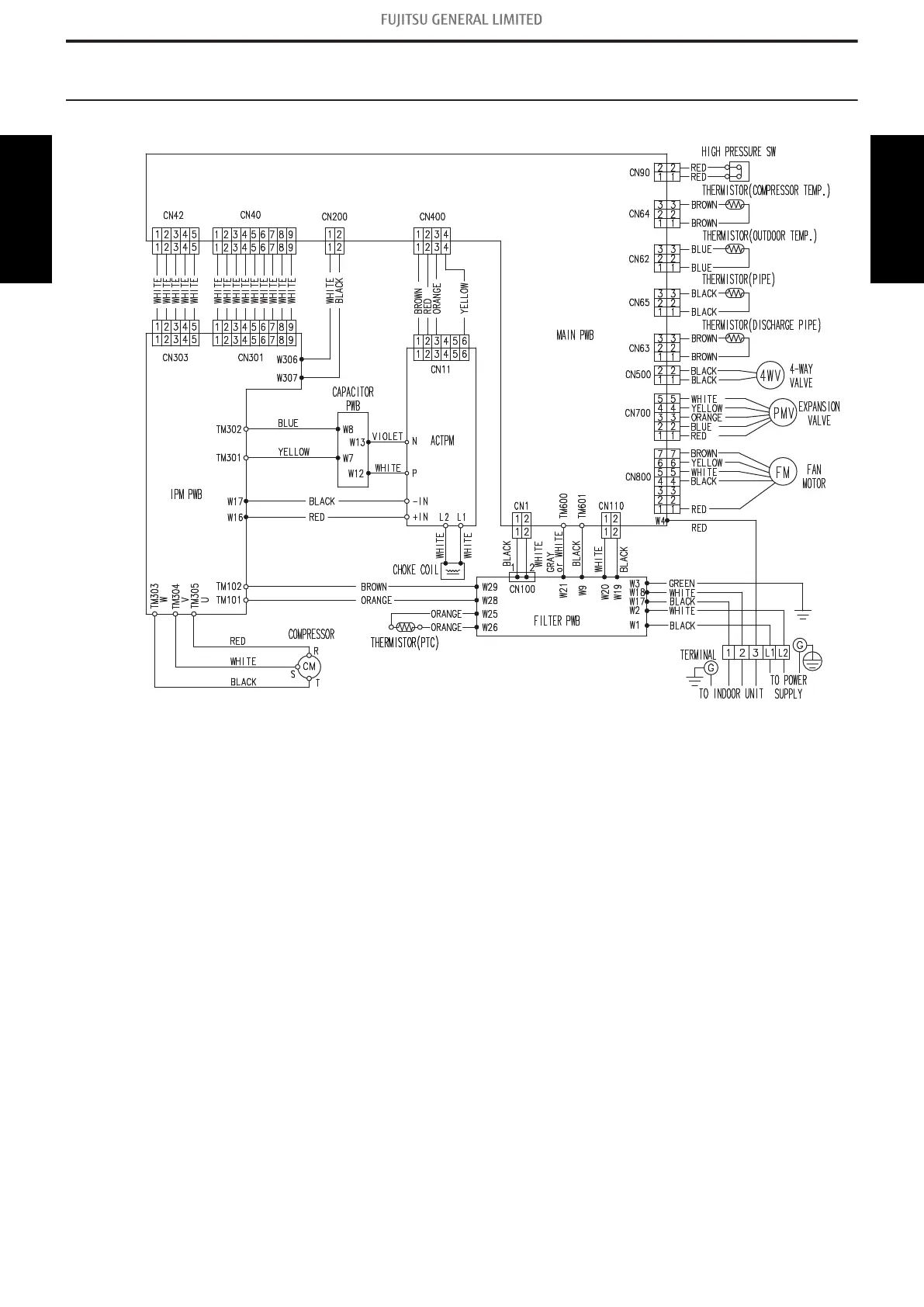

5. Wiring diagrams
5-1. Models: AOU24RGLX and AOU30RGLX
- 79 -
5-1. Models: AOU24RGLX and AOU30RGLX 5. Wiring diagrams
OUTDOOR UNIT
AOU24-30RGLX,
AOUG36-48LMAS1
OUTDOOR UNIT
AOU24-30RGLX,
AOUG36-48LMAS1
