2. REPLACEMENT PARTS (For INDOOR UNIT)
2-1 PARTS LAYOUT DRAWING
10-36

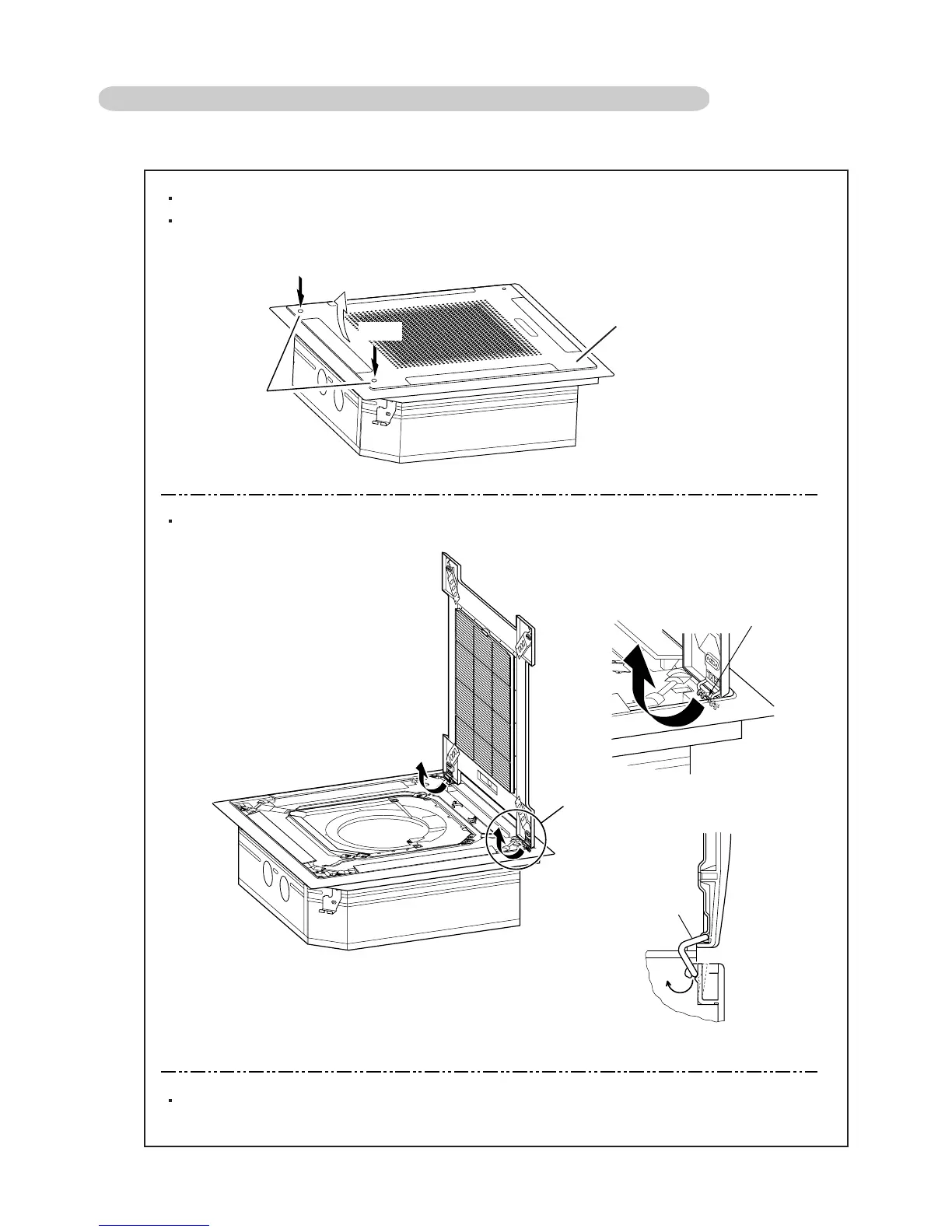

1. INTAKE GRILLE removal
Push the INTAKE GRILLE pushbuttons (2 places).
Open the INTAKE GRILLE
Remove the GRILLE hinge wire.
Remove the INTAKE GRILLE.
PUSH
OPEN
Pushbotton
(2 places)
A
B
Pull up while pressing the B section.
Part B section view
Part A detail view
GRILLE hinge wire
PUSH
INTAKE GRILLE
