Fujitsu AO G12KATA Series Service Instruction

3-2. Outdoor fan control
¢ Outdoor fan motor
This outdoor unit has a DC fan motor. (Control method is different between AC and DC motors.)
¢ Fan speed
 Model: AOYG09KATA
Fan speed is defined by outdoor temperature and compressor frequency.

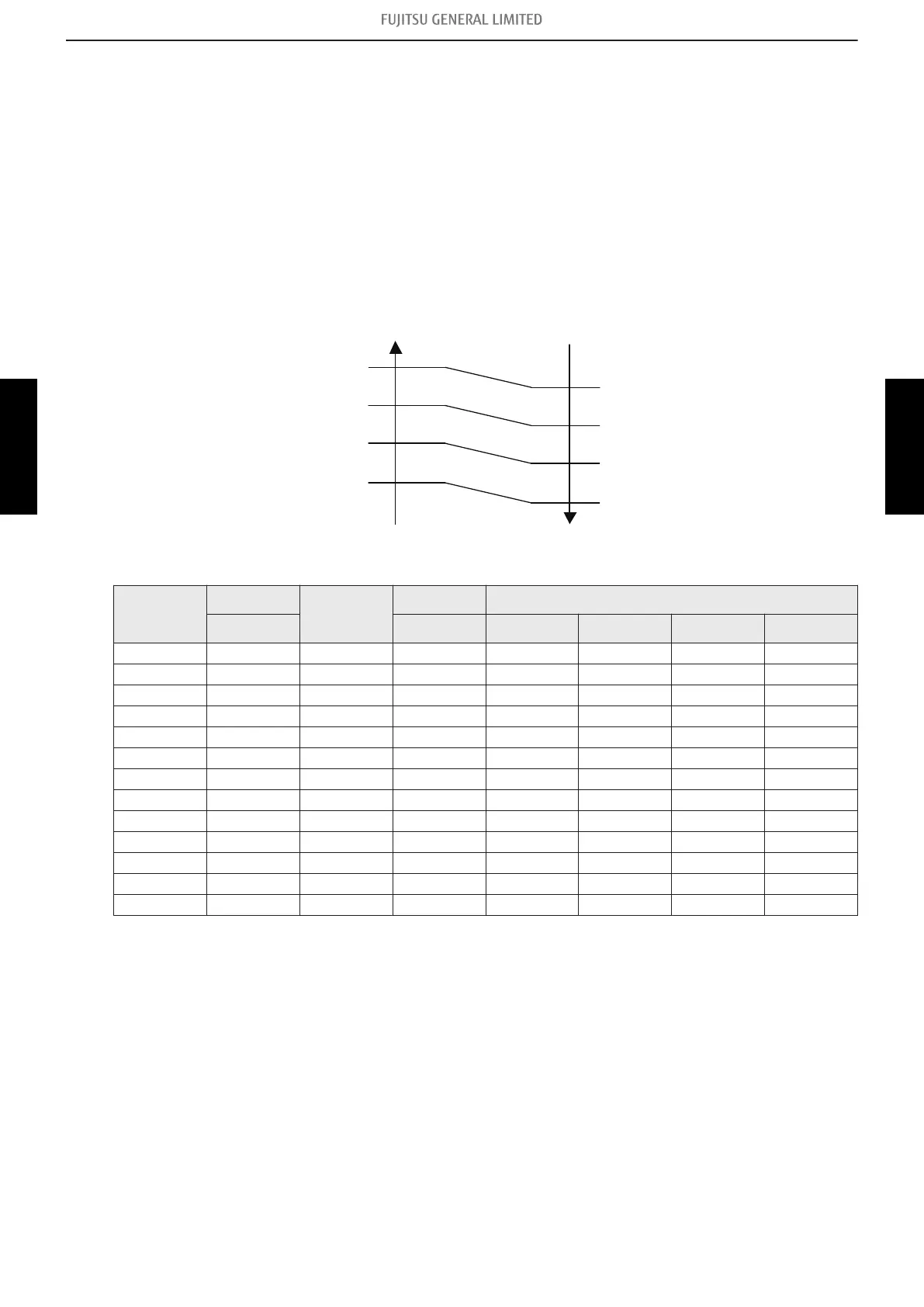

• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12
°C
2°C
-8°C
19°C
10°C
0°C
-10°C
H zone
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone H zone
S-HIGH2 — 930 — — — — —
S-HIGH1 950 930 — — — — —
HIGH 950 930 — — — — —
10 — 930 — — — — —
9 950 930 950 540 270 250 250
8 950 930 950 540 270 250 250
7 950 930 950 540 270 250 250
6 950 770 950 540 240 220 220
5 800 690 800 240 190 170 170
4 800 550 800 200 170 170 170
3 680 510 680 200 170 170 170
2 610 480 610 200 170 170 170
1 580 480 580 200 170 170 170
NOTE:
After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 930 rpm
3-2. Outdoor fan control
- (04-14) - 3. Fan control
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS
