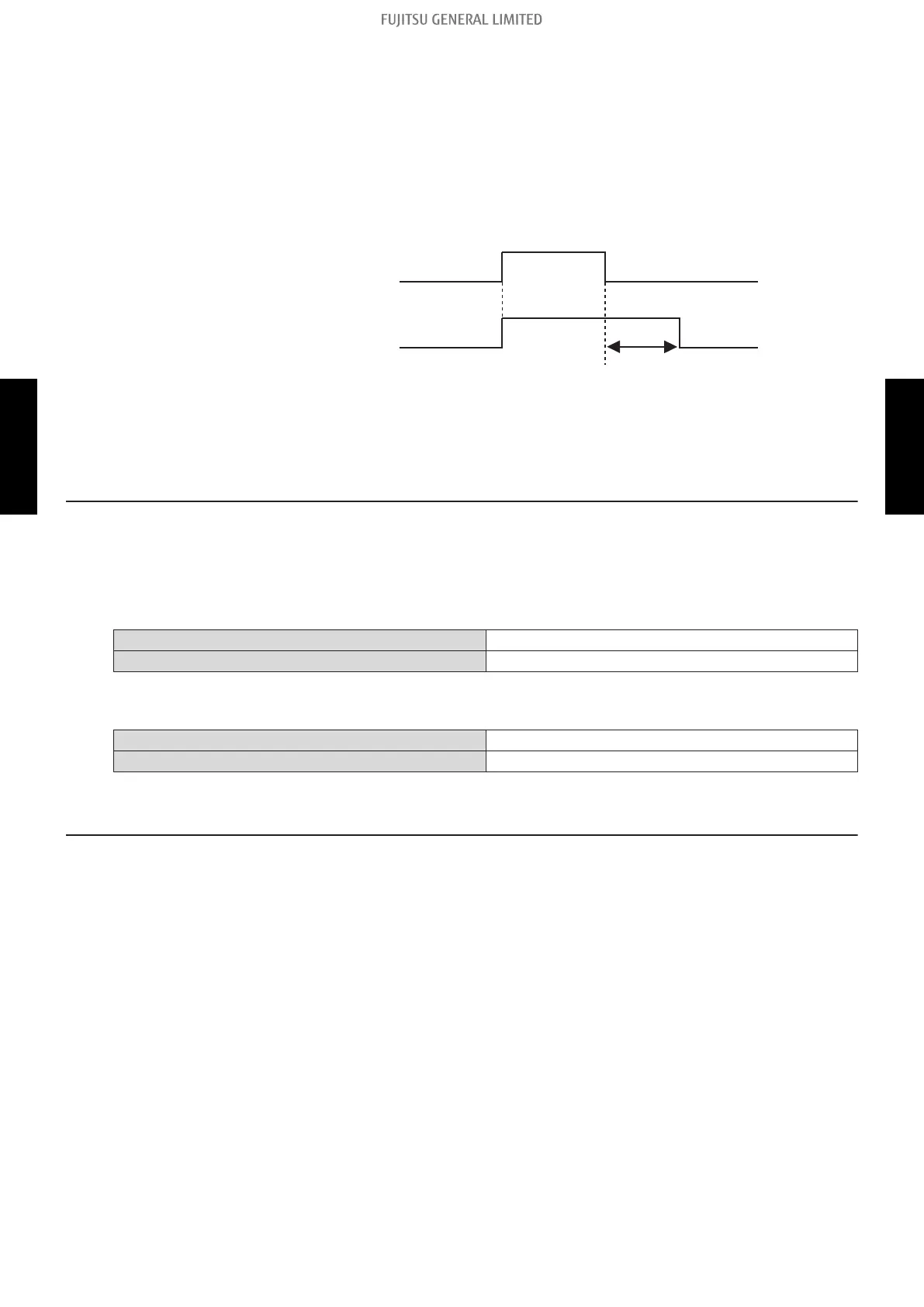

During heating mode or fan mode and when operation is stopped
• Triggering condition
Drain pump is turned on at the same time that the float switch is turned on.
• Operation details
When the float switch turns on continuously for 3 minutes, "failure indication" operates. There-
after, even if the float switch turns off, the "failure indication" is not released. (It is necessary to
turn off power for release it. )
3 minutes
On
Off
On
Off
Float switch
Drain pump
• Release condition
Drain pump operates continuously for 3 minutes after the float switch is turned off and then
drain pump is turned off.
7-10. Prevention to restart for 3 minutes (3 minutes st)
When the compressor fails to start for the number of times below, it does not enter operation status
for 3 minutes.
• Models: AOYG09KATA and AOYG12KATA
Retry number 10
Retry set number 10
• Models: AOYG14KATA, AOYG18KATA, and AOYG22KATA
Retry number 50
Retry set number 3
When the compressor fails to start in the retry set number above, the compressor is stopped.
7-11. 4-way valve control
• If heating mode is selected at the compressor start, 4-way valve is energized for heating.
• When the air conditioner is switched between cooling and heating mode, compressor is stopped,
and the 4-way valve is switched when the 140 seconds passes and the compressor is started.
7-9. Drain pump control
- (04-32) - 7. Various control
CONTROL AND
FUNCTIONS
CONTROL AND
FUNCTIONS
