FLOOR TYPE AGU9-15RLF FLOOR TYPE AGU9-15RLF
FAN PERFORMANCE AND CAPACITY7.

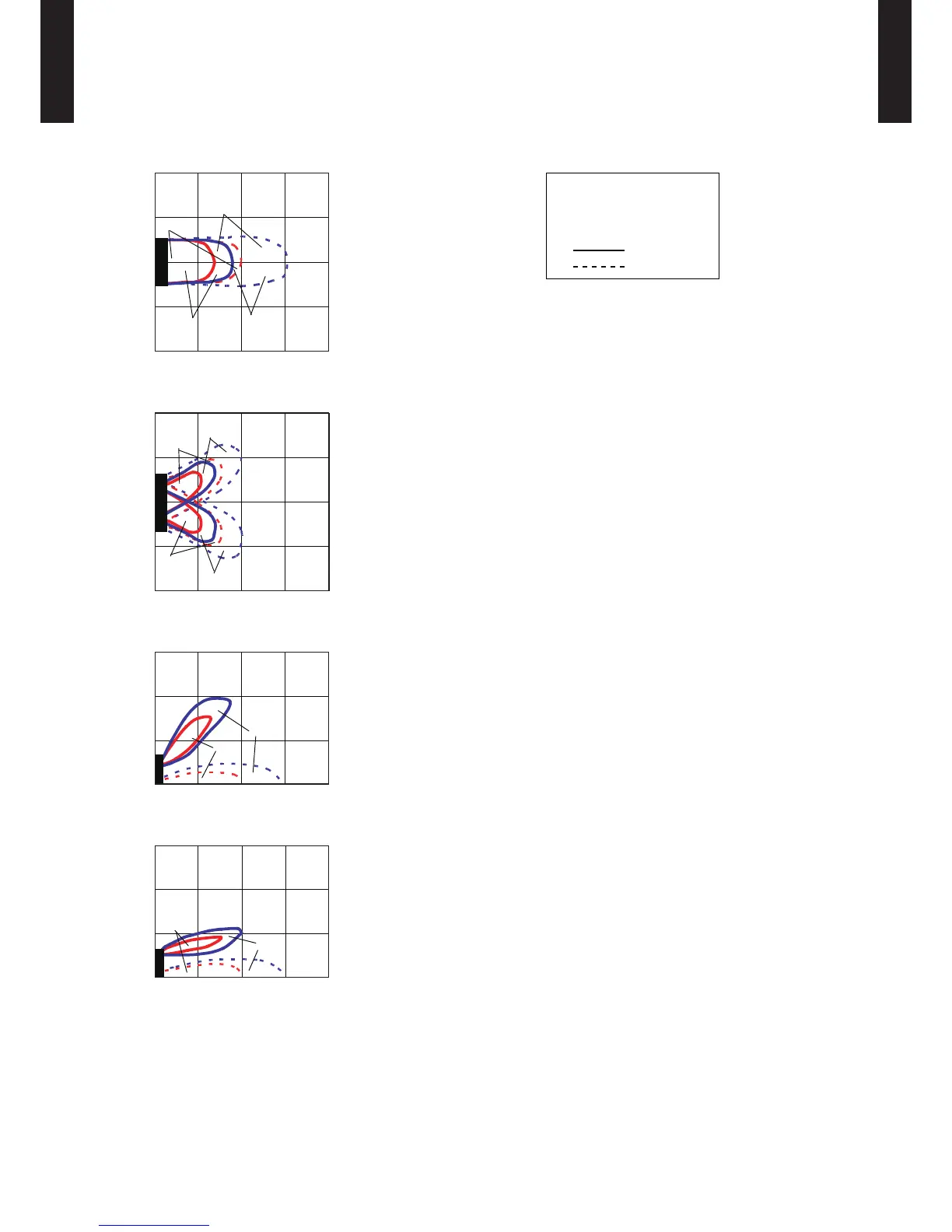

AIR VELOCITY DISTRIBUTION7-1.
MODEL

: AGU9RLF, AGU12RLF, AGU15RLF
Conditions:
Fan speed: HIGH
Operation mode: FAN
Fan select: UPPER & LOWER
: UPPER FAN
: LOWER FAN
0.5
UPPER
LOWER
1.0
Top view
Vertical airow direction louver: Up
Horizontal airow direction louver: Center
7 2
3 1
0 0
3 1
7 2
Unit: ft./s (m/s)(ft.) (m)
(m)
(ft.)
0 1 2 3
4
0 3 7 10 13
0.5
1.0
0.5
1.0
Top view
Vertical airow direction louver: Up
Horizontal airow direction louver: Right & Left
7 2
3 1
0 0
3 1
7 2
Unit: ft./s (m/s)(ft.) (m)
(m)
(ft.)
0 1 2 3
4
0 3 7 10 13
1.0
0.5
Top view
Vertical airow direction louver: Up
Horizontal airow direction louver: Center
10 3
7 2
3 1
0 0
(m)
(ft.)
0 1 2 3
4
0 3 7 10 13
Unit: ft./s (m/s)(ft.) (m)
1.0
0.5
Top view
Vertical airow direction louver: Down
Horizontal airow direction louver: Center
10 3
7 2
3 1
0 0
(m)
(ft.)
0 1 2 3
4
0 3 7 10 13
Unit: ft./s (m/s)(ft.) (m)
