5. INDOOR FAN CONTROL
The airflow can be switched in 5 steps such as Auto, Quiet, Low, Med, Hi, while the indoor fan only runs.
When Fan mode is set at [Auto], it operates on [Me] Fan Speed.
01-05
1. FAN SPEED
2. FAN OPERATION

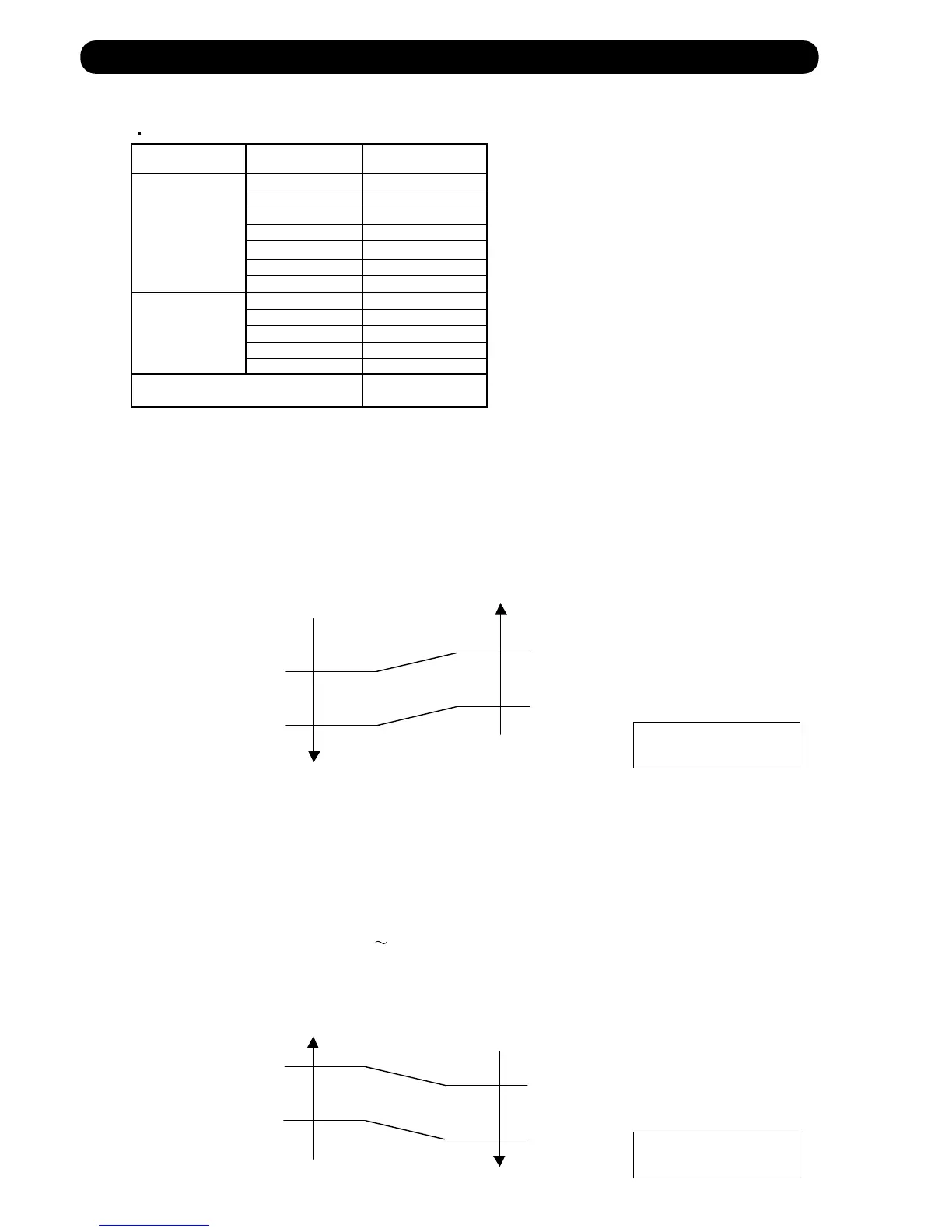

( Table 5 : Indoor fan speed )
AS*G09/12LECB
Operation mode Air flow mode Speed (rpm)
1440
1370
1200
980
Cooling/ Fan
Hi
Hi
700
600
480
1440
Me+
Me
Me
Heating
Lo
Lo
1200
920
Quiet
Quiet
680
* Soft Quiet
600
Dry
S-Lo
X zone: 680
J zone: 600
Cool air prevention
3. COOLING OPERATION
Switch the airflow [Auto], and the indoor fan motor will run according to a room temperature, as shown in Fig. 4.
On the other hand, if switched in [Hi] ~ [Quiet], the indoor motor will run at a constant airflow of [Cool]
operation modes Quiet, Lo, Me, Hi,as shown in Table 5.
( Fig.4 : Airflow change - over ( Cooling : Auto ) )
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
TR-Ts > 2 °C
=
1 °C > TR-Ts
2 °C > TR-Ts > 1 °C
=
TR-Ts > 2.5 °C
=
1.5 °C > TR-Ts
2.5 °C > TR-Ts > 1.5 °C
=
Hi mode
Me mode
Lo mode
4. DRY OPERATION
Refer to the Table 5.
During the dry mode operation, the fan speed setting can not be changed.
5. HEATING OPERATION
Switch the airflow [Auto], and the indoor fan motor will run according to a room temperature, as shown in Fig. 5.
On the other hand, if switched in [Hi] [Quiet], the indoor motor will run at a constant airflow
of [Heat] operation modes Quiet, Lo, Me, Hi, as shown in Table 5.
( Fig.5 : Airflow change - over ( Heating : Auto ) )
TR-Ts > - 1.5 °C
=
- 2.5 °C > TR-Ts
- 1.5 °C > TR-Ts > - 2.5 °C
=
TR-Ts > - 1 °C
=
- 2 °C > TR-Ts
- 1 °C > TR-Ts > - 2 °C
=
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
Lo
Me
Me+
*Note, during Economy operation and operation mode is Fan,
air flow is 1 step downs.
(Hi > Me, Me > Lo, Lo > Quiet, Quiet > Soft Quiet)
