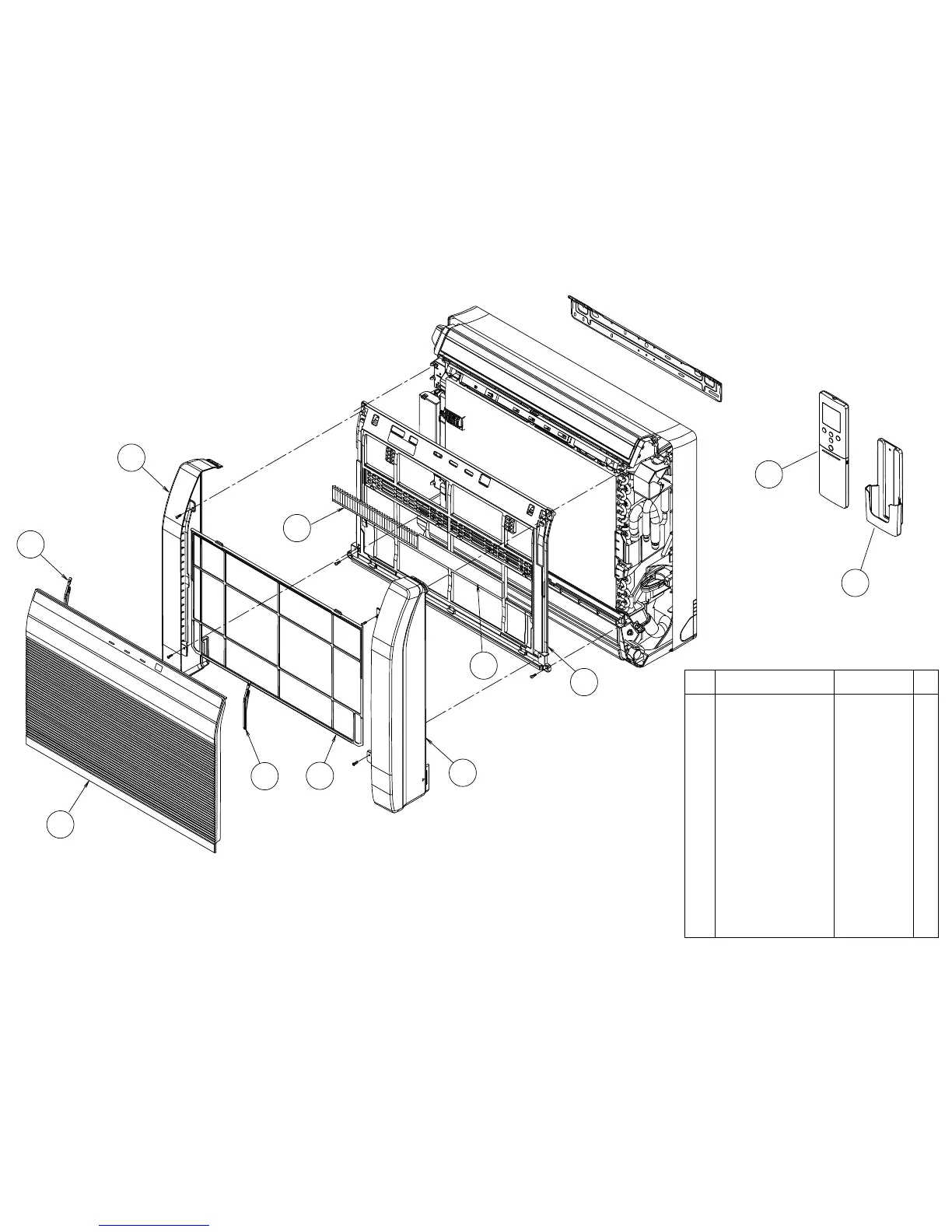

INDOOR UNIT
PARTS
132013.11.15
1
2
5 Intake Grille Assy
6 Rope Assy
8 Front Panel L
9 Front Panel R
3 Air Clean Filter Assy
Parts numberDescriptionRef
9316418097
9316458017
9316187016
9316186019
9316474017
Remote Control Holder
2 9318912005
1 Remote control 9320476007
Bracket panel
7 Front Panel 9316185012
5
6
6
8
9
7
3
3
4
4 Air Filter 9316189027
