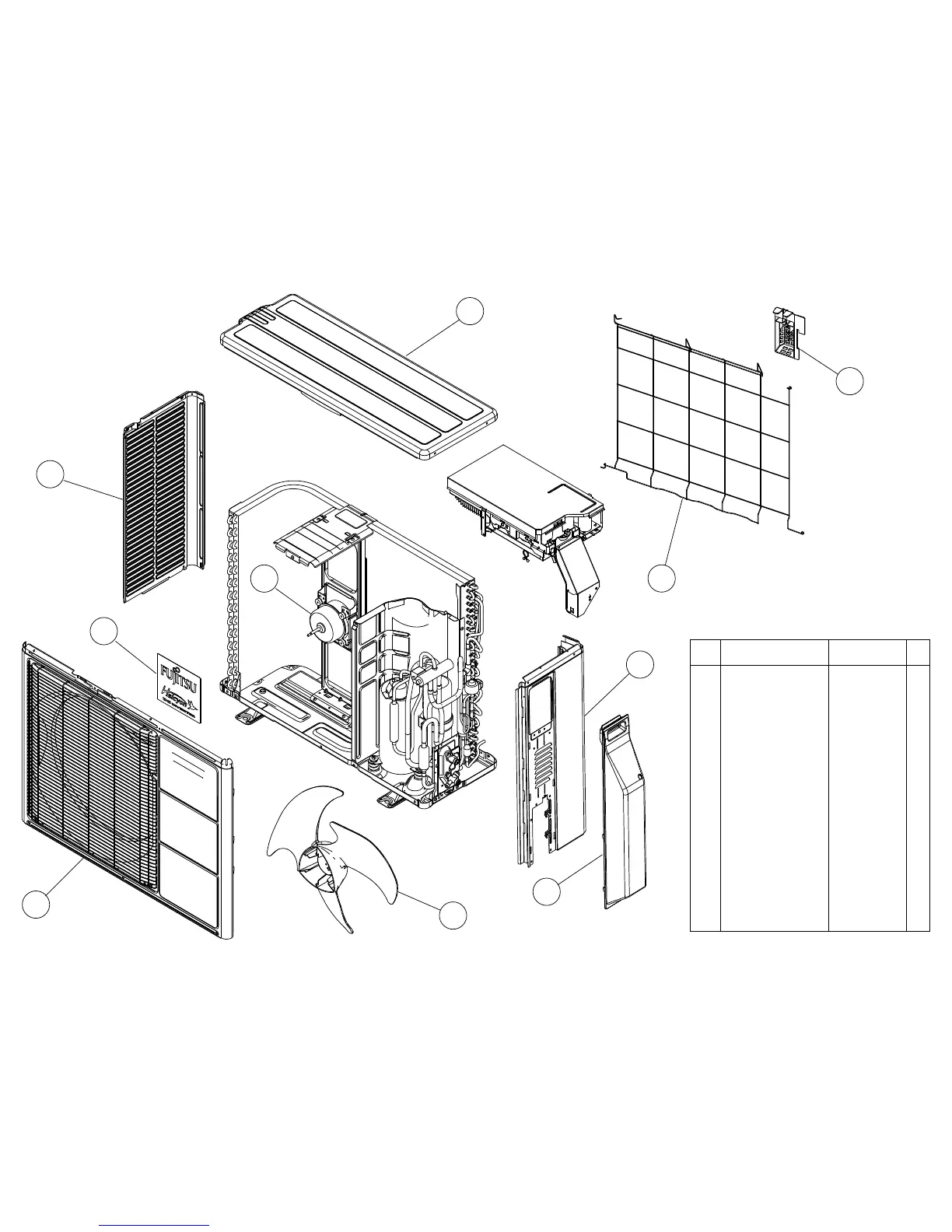

OUTDOOR UNIT
PARTS
2013.11.15 18
4 Front Panel Assy 9318463033
3 Top Panel Assy 9318464023
6
8
Cabinet Left Assy 9318461015
5 Emblem 9317903011
Switch Cover 9317692021
7 Cabinet Right Assy 9316044050
10 Propeller Fan 9313808013
9 Fan Motor 9602724000
Ref. Description Part number
1 Thermistor Holder 9313954031
2 Protective Net 9332492002
7
8
10
9
6
5
4
3
1
2
