WALL MOUNTED TYPE ASU9-15RL WALL MOUNTED TYPE ASU9-15RL

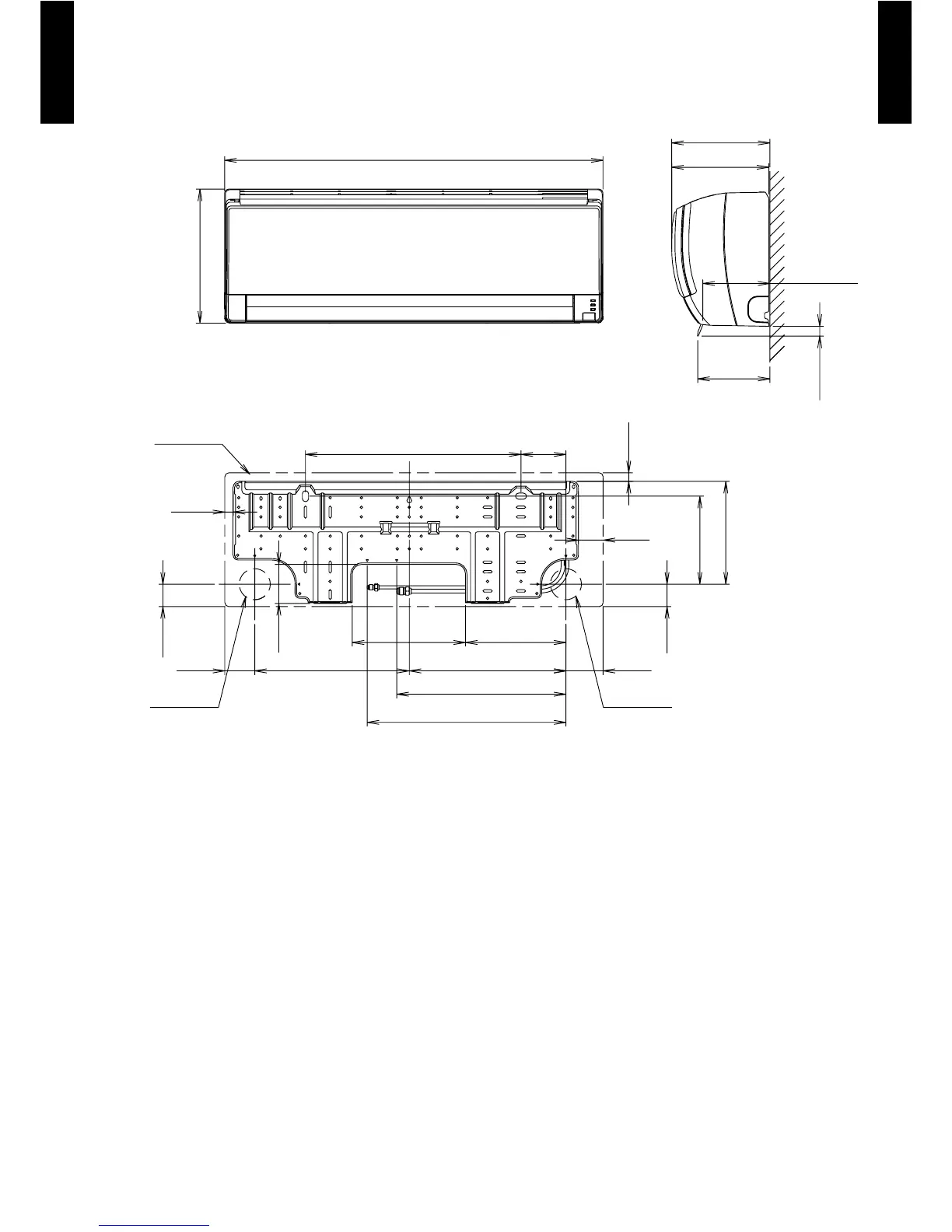

DIMENSIONS4.
MODEL

: ASU9RLF, ASU12RLF, ASU15RLS
8QLWLQPP
8-1/16 (205) : Installed state
*1: Vertical flap is downward
8 (203)
5-1/2 (140) *1
13/32 (10) *1
5-23/32 (145) *1
31-3/32 (790)
11-1/32 (280)
3-11/16 (94)
2-1/16 (52)
3-1/16 (78)
ø2-9/16 (65)
for pipe inlet
ø2-9/16 (65)
for pipe inlet
Outline of unit
12-23/32 (323)
13-29/32 (353): Gas pipe
16-11/32 (415): Liquid pipe
12-7/8 (327)
9-11/32 (237)
17-23/32 (450)
8-7/32 (209)
2-7/16 (62)
23/32 (18)
1-27/32 (47)
1-27/32 (47)
7-1/4 (184)
8-15/32 (215)
23/32 (18)
3-7/32 (82)
