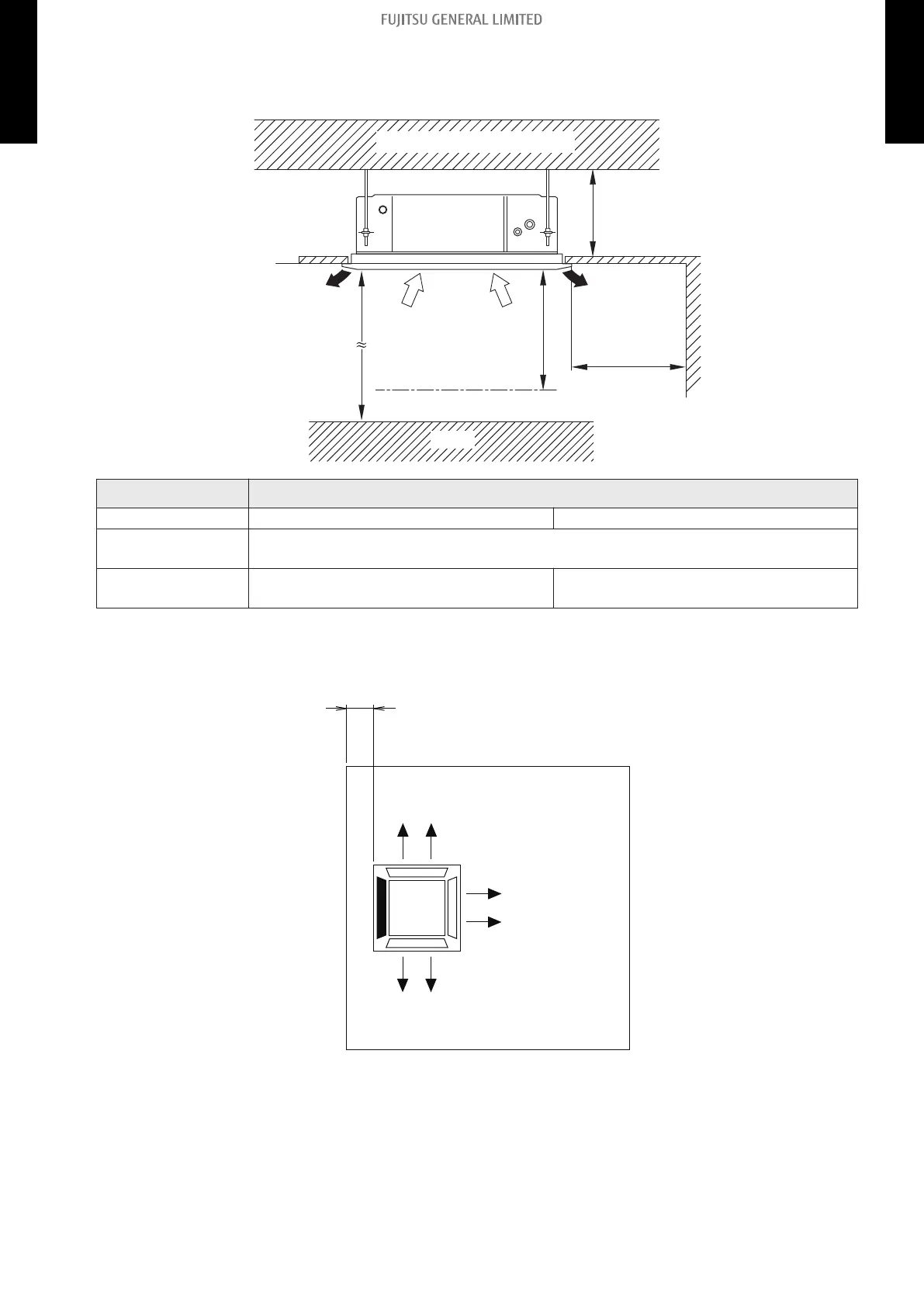

Installation space

40 (1,000)

or more

40 (1,000)

or more

95 (2,400)

or more

11 (262)

or more

Strong and durable ceiling

Obstruction

Floor

Unit: in (mm)

Maximum height from floor to ceiling [Unit: in (mm)]

Model name AUU9RLF AUU12-18RLF

Standard mode

107

(2,700)

High ceiling mode —

119

(3,000)

• 3-way direction setting

4 (100) or more*

Unit: in (mm)

NOTES:

• *: When installing the indoor unit, be careful about the maintenance space.

• To set “3-direction”, optional Air outlet shutter plate (UTR-YDZB) must be installed, and the “out-

let-direction” need to be switched to “3-way” by remote controller.

• The ceiling height cannot be set in the 3-way outlet mode. Therefore, ceiling height setting

change by function setting 20 is prohibited. For details, refer to "Contents of function setting" on

page 36.

- 6 -

2-1. Models: AUU9RLF, AUU12RLF, and AUU18RLF 2. Dimensions

CASSETTE TYPE

AUU09-18RLF

CASSETTE TYPE

AUU09-18RLF
