Fujitsu AOU18RLXFW Design & Technical Manual

- (01 - 05) -
WALL MOUNTED TYPE ASU18-24RLF WALL MOUNTED TYPE ASU18-24RLF

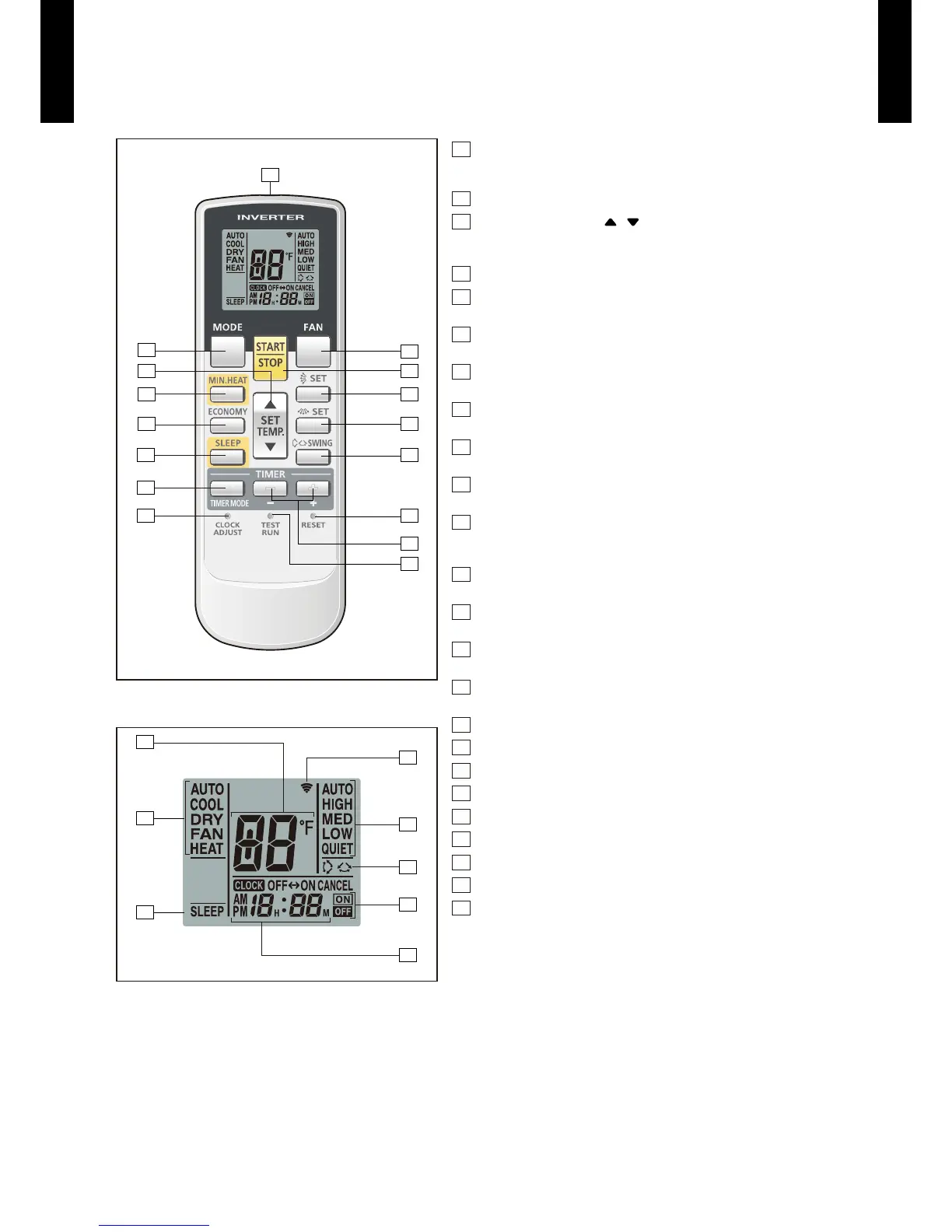

FUNCTIONS

Display panel
Note: Functions will be different due to type of indoor unit.
For details, please see operation manual.
2
4
9
3
1
16
15
5
10
13
11
12
14
8
7
6
17
18
19
21
24
23
22
20
1
MODE button
Selects the operating mode (AUTO, COOL, DRY, FAN, HEAT).
/Start / end R.C. custom code change. (Max 4 types)
2
MIN.HEAT button
3
SET TEMP. button ( / )
Set remote controller custom code buttons
Sets the indoor temp./ Sets R.C. custom code.
4
ECONOMY button
5
SLEEP button
Pressed to select sleep timer.
6
FAN button
Selects the fan speed (AUTO, HIGH, MED, LOW, QUIET).
7
START/STOP button
Pressed to start and stop operation.
8
SET button (Vertical)
Air ow direction vertical set button.
9
SET button (Horizontal)
Air ow direction horizontal set button.
10
SWING button
Air ow direction swing button.
11
TIMER MODE button
Pressed to select the timer mode. (OFF TIMER, ON TIMER,
PROGRAM TIMER, TIMER RESET)
12
TIMER SET ( + / - ) button
Sets the current time and on-off time.
13
CLOCK ADJUST button
Sets the current time.
14
RESET button
Used when replacing batteries.
15
TEST RUN button
Used when testing the air conditioner after installation.
16
Signal transmitter
17
Temperature set display
18
Operating mode display
19
Sleep display
20
Transmit indicator
21
Fan speed display
22
Swing display
23
Timer mode display
24
Clock display
