CN201
5V
C201
0.1
<F>
5V
+ C202
47/
10V
R201
47
<1/4W>
I C201
GP1UM261R
5V
D201
SLR-325
D203
SLR-325
D202
SLR-325
5
4
6
1
2
3
7
2
1
3
VCC
OUT
GND

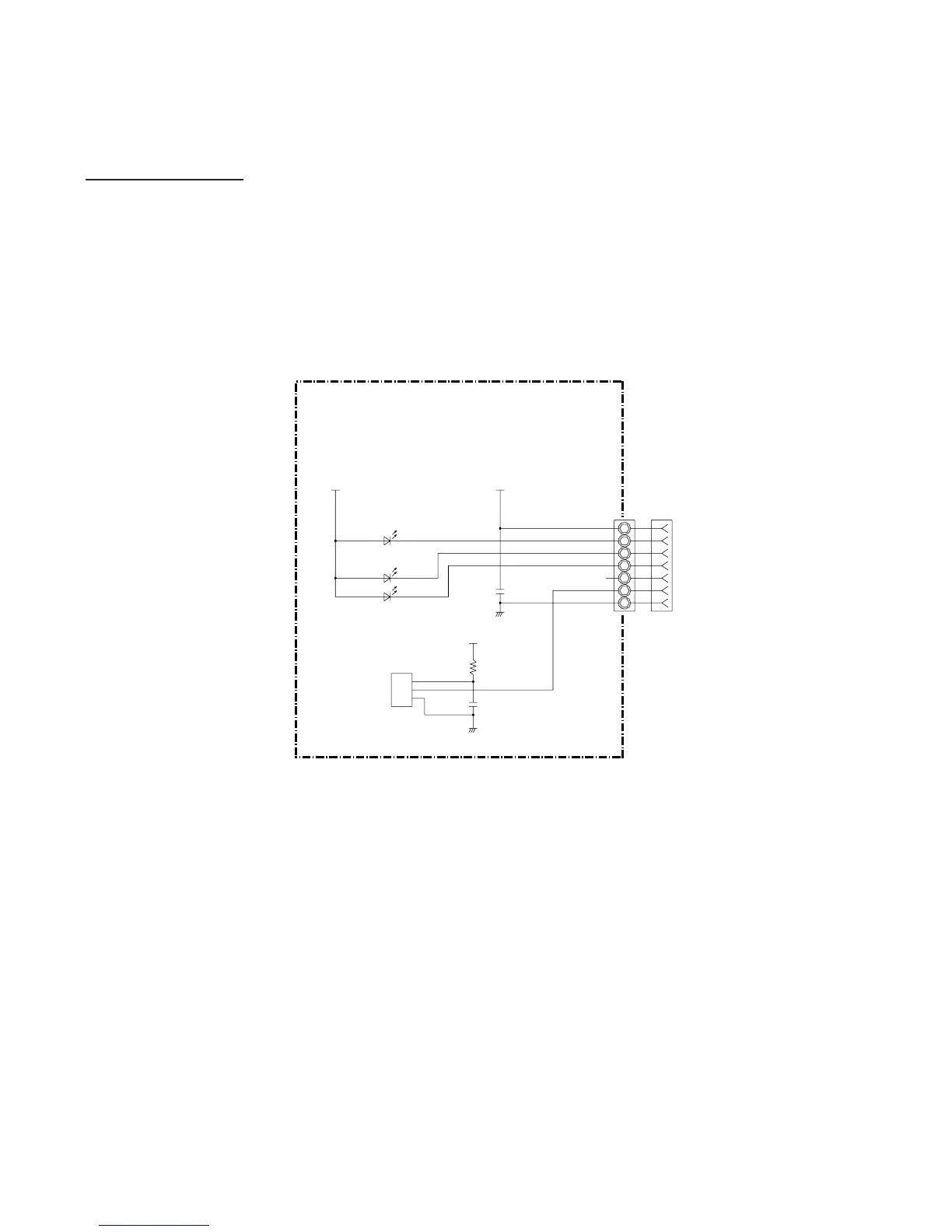

INDICATOR PCB ASSY
K05CY-0500HSE-D0
Models :
ASU30CLX
ASU36CLX
2006.02.10
8
