Fujitsu AOU30RGLX User Manual

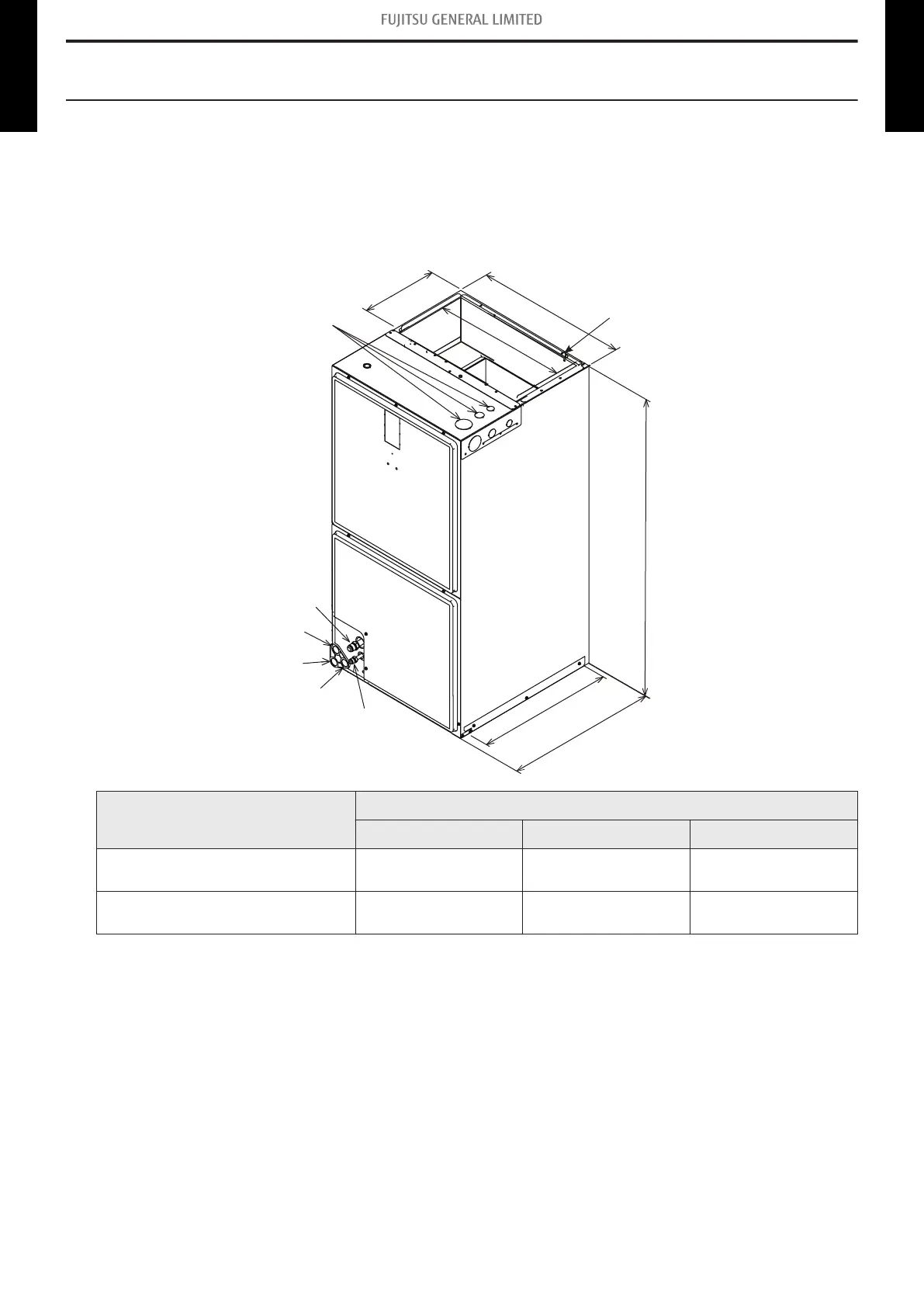

2. Dimensions
2-1. Indoor unit
¢
Models: AMUG24LMAS, AMUG30LMAS, AMUG36LMAS, and
AMUG48LMAS
Unit: in (mm)
Flanges are provided
H
W
A
10-5/16
(262)
2
1
-
1
1
/1
6
(
5
5
1)
1
9
-
1
/2
(
4
95)
for field installation Dia. knockouts.
7/8 (22),
1-1/16 (27),
1-15/16 (50)
Gas pipe
Auxiliary drain
connection
Primary drain
connection
Auxiliary drain
connection
Liquid pipe
Model
Dimension (Unit: in (mm))
A (Supply duct) W (Unit width) H (Unit height)
AMUG24LMAS
AMUG30LMAS
19-1/2 (495) 21 (533) 42-1/2 (1,080)
AMUG36LMAS
AMUG48LMAS
19-1/2 (495) 21 (533) 57 (1,448)
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Fujitsu AOU30RGLX Specifications

General

Cooling Capacity (BTU/hr)	30, 000
Heating Capacity (BTU/hr)	30, 000
Energy Efficiency Ratio (EER)	11.5
Coefficient of Performance (COP)	3.5
Refrigerant	R410A
Voltage	208/230V
Cooling Capacity	8.8 kW
Heating Capacity	8.8 kW
